installation &
operating instructions
ips 4000 controller - Integrated pumping
system for variable primary applications
14
Button: save
Range: Function:
n/a Saves current parameters as default. Only available in
level 2
Button: restore
Range: Function:
n/a Restores default parameters. Only available in levels
1 & 2

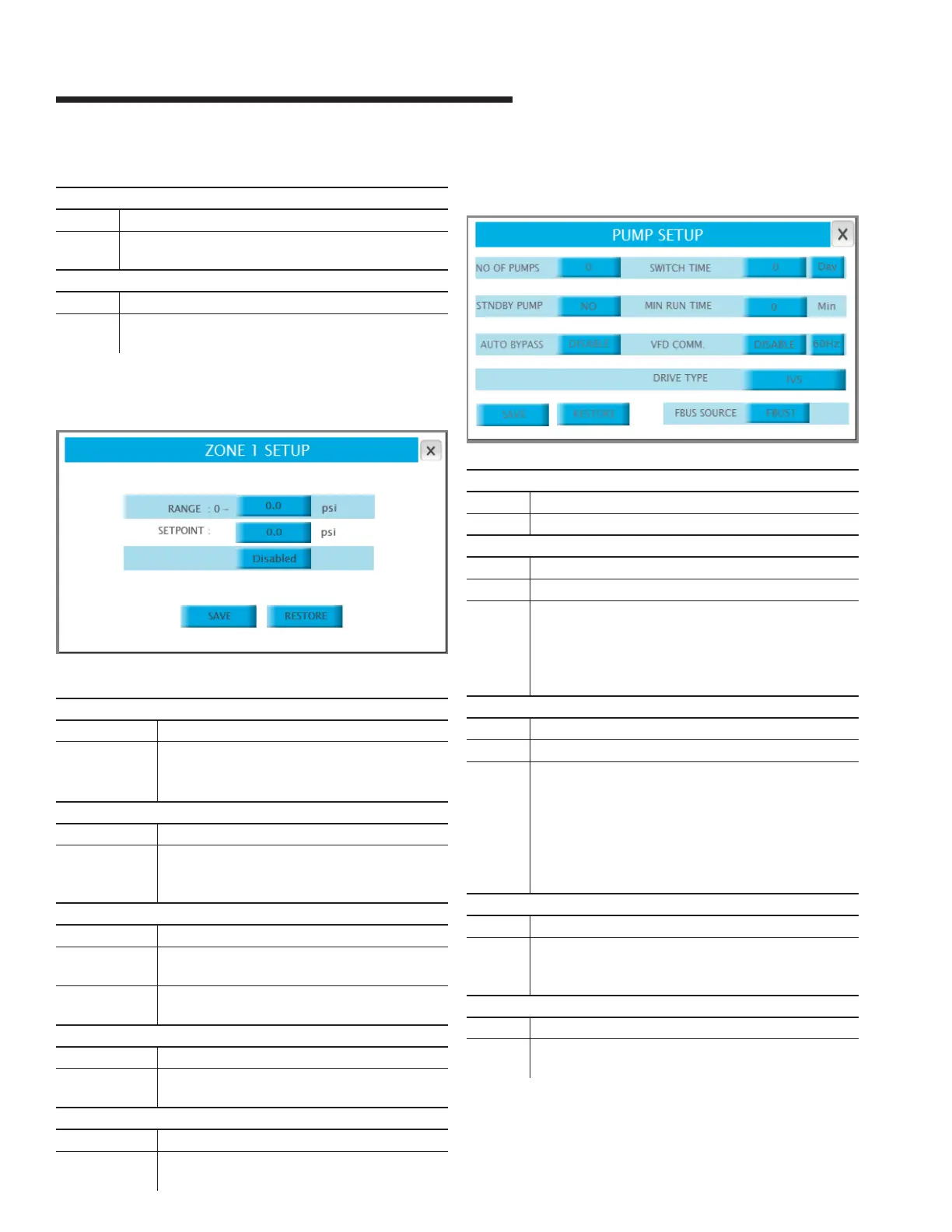

4.1.2 zone 1 to 12 setup
There is one screen per zone
Parameter: range
Range: Function:
0.0-999.9
(psi, ft, kPa, m,
bar, °f, °c)
Indicates the range of the dp or Temperature
sensor of the zone
Parameter: setpoint
Range: Function:
0.0-999.9 (psi,
ft, kPa, m, bar,
°f, °c)
Indicates the setpoint of the zone. The ips uses
this value to determine the pump speed
Parameter: setpoint
Option: Function:
Disable The zone is disabled, it won’t be used to deter-
mine the active zone and pump speed
Enable The zone is enabled, it will be used to determine
the active zone and pump speed
Button: save
Range: Function:
n/a Saves current parameters as default. Only
available in level 2
Button: restore
Range: Function:
n/a Restores default parameters. Only available in
levels 1 & 2
4.1.3 pump setup
Parameter: no of zones
Range: Function:
1-6 Indicates how many pumps are installed in the system
Parameter: stndby pump
Options: Function:
no All pumps in the system are duty
yes One of the pumps in the system will be assigned as
standby, it will only operate if a duty pump fails and
there is no other duty pump to replace it. Rotation of
duty 1 pump also rotates the standby pump to achieve
even hours of operation
Parameter: auto bypass
Options: Function:
disable Auto bypass function is disabled
enable When a pump fails (due to no run feedback, vfd fault
or communication), the ips will determine if there is
another pump available to replace the faulty pump.
If there is no pump available, a digital output will
mechanically bypass the vfd and energize the pump
motor directly. All pumps running at that moment will
be bypassed
Parameter: switch time
Range: Function:
1-999
(Days,
Hours)
Indicates how often the lead (duty 1) pump will rotate
among the duty pumps
Parameter: min run time
Range: Function:
1-999
minutes
Indicates what is the minimum time the lead (duty 1)
pump will run once it is started
To Next Page
