installation &
operating instructions
Commercial pumps Series 4300, 4360 and 4380
Vertical In–Line pump
13

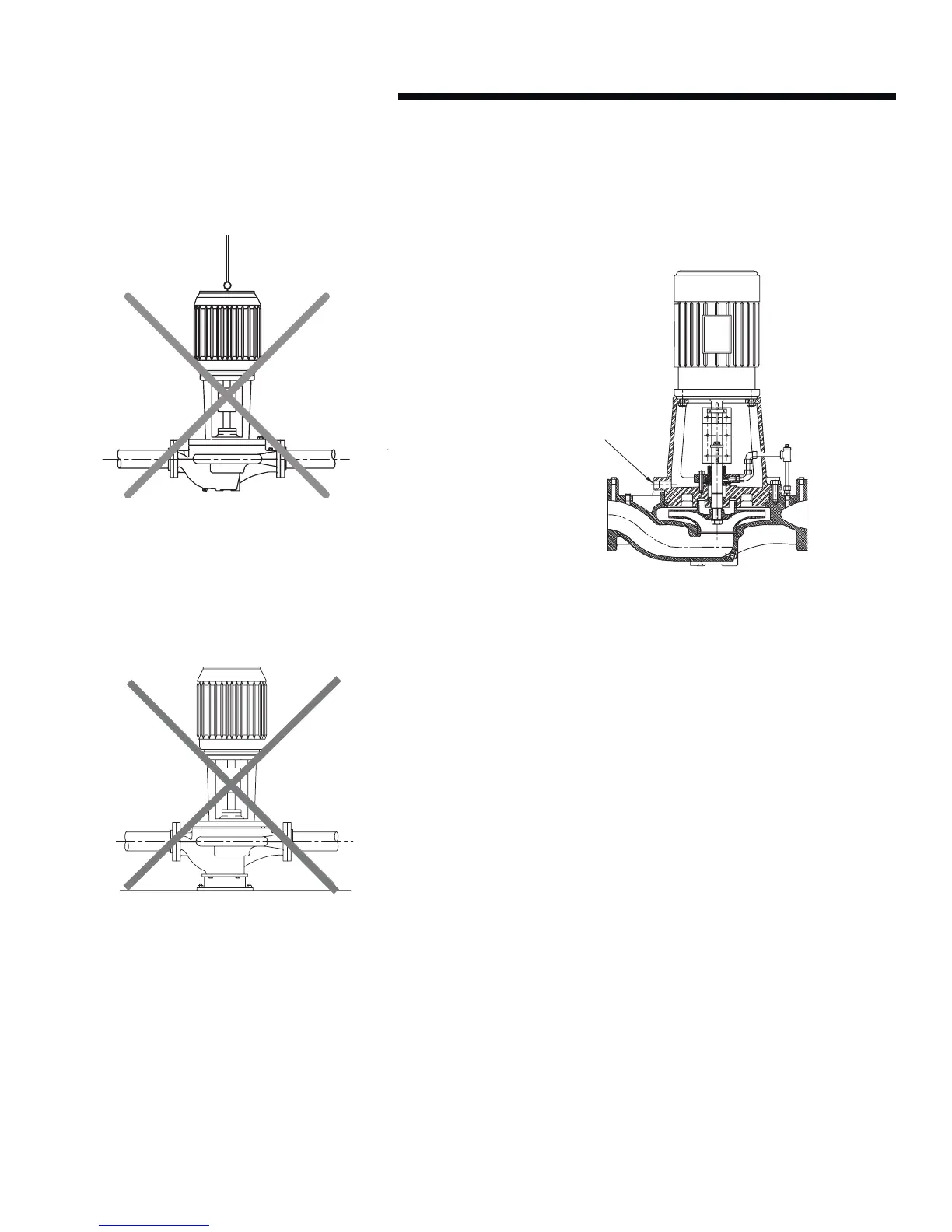

fig. 2.11 Motor lifting hook supported.
Seismically Rated Snubbers or
Pads and Concrete Foundation
fig. 2.12 Mounted on rigid base without
flexible connectors.
fig. 2.13 Tapped collection well.
Seismically Rated Snubbers or
Pads and Concrete Foundation
Seismically Rated Snubbers or
Pads and Concrete Foundation
Series 4300 seal leaks or
condensate drain hole.
Plumb to drain for area
cleanliness.
