installation &
operating instructions
Commercial pumps Series 4300, 4360 and 4380
Vertical In–Line pumps
12

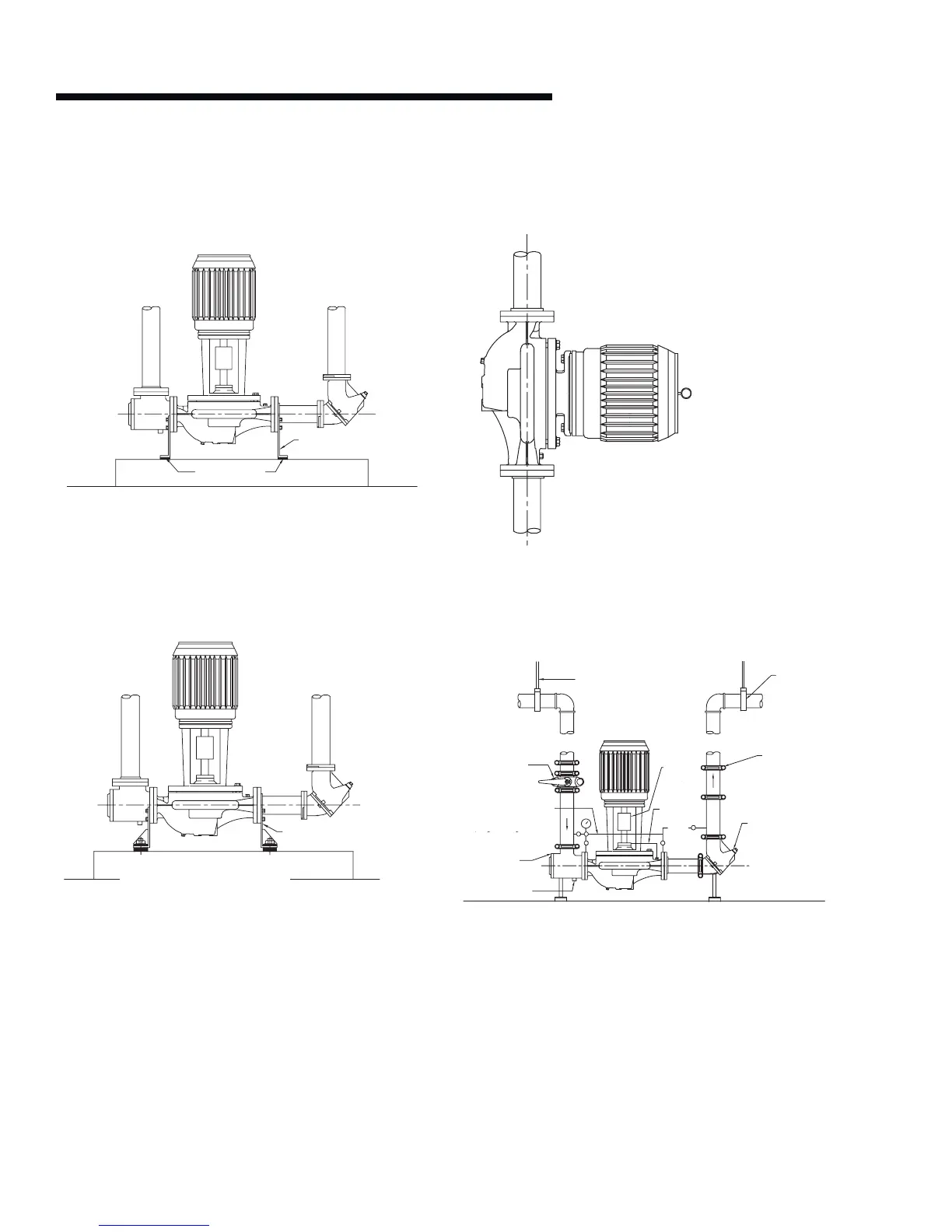

fig. 2.7 With stanchion plates.
fig. 2.8 Seismic region installation.
fig. 2.9 Horizontal mounting – 4360/4380 only to
15 hp (11 kW).
fig. 2.10 Mounting in grooved pipe systems.
Seismically Rated Snubbers or
Pads and Concrete Foundation
Seismically Rated Snubbers or
Pads and Concrete Foundation
Isolation pads
Stanchion plates
Seismically Rated Snubbers or
Pads and Concrete Foundation
Seismically Rated Snubbers or
Pads and Concrete Foundation
Seismically rated snubbers or
pads and concrete foundation
Stanchion plates
Hangers support the weight
of the filled piping, pumps
and fittings
Pipe hanger (typ.)
See specification
for size and type
System outlet
Flo-Trex valve
Flush line
System inlet
Split
coupler
Gruvlok 7000 flex
coupling (typ.)
7700 butterfly
valve
Drain connection
Recommended field
pressure gauge piping
arrangement
Suction
guide
Pet
cock
(typ.)
