ARRI 435 - Camera Right and Back Controls; Film Path Components and Magazine Interface; Module, Battery, and Accessory Ports; Power Switch and Indicators

Arriflex 435 Quick Guide, 9/97, Page 4

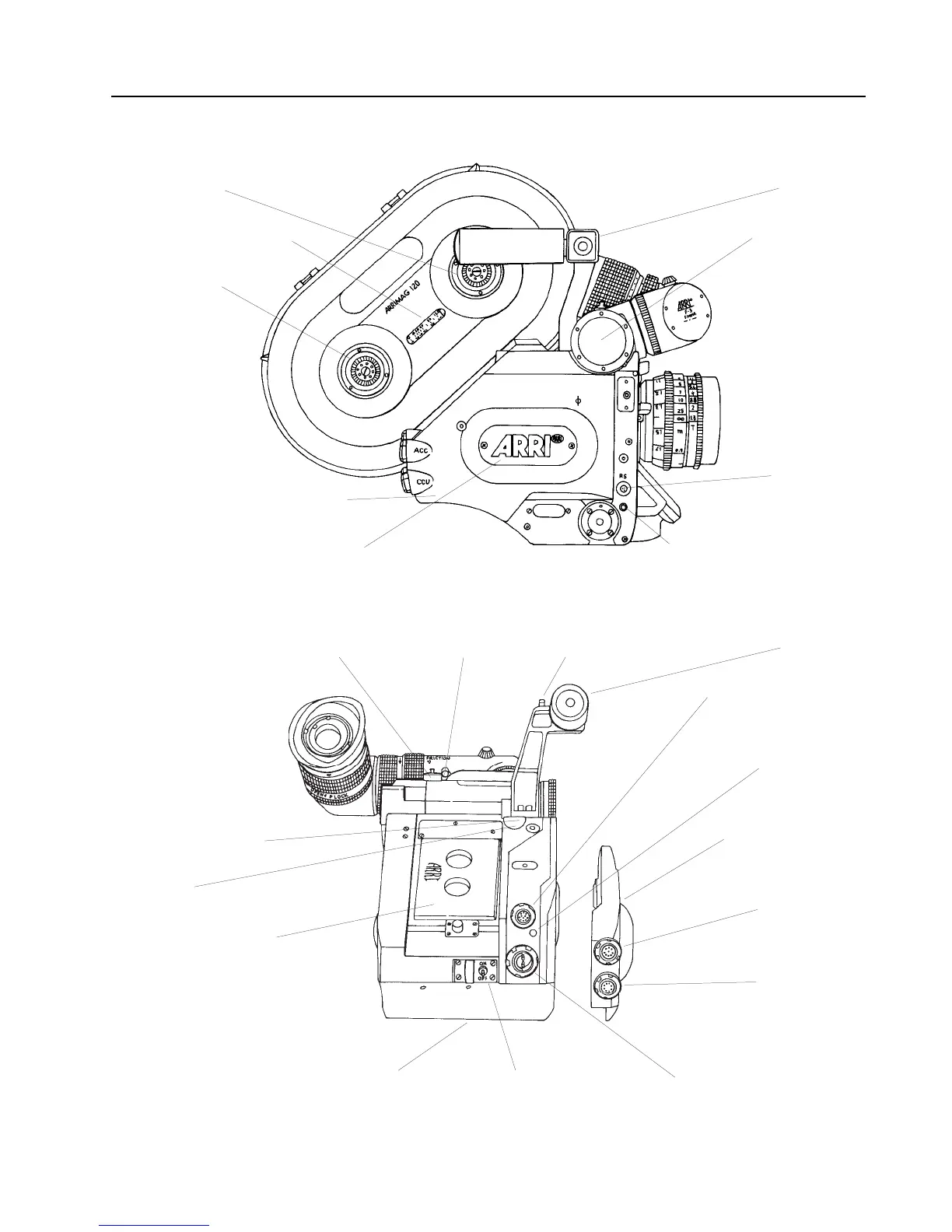

Camera Right & Back
Video assist port
Grip system
Magazine opening cover
Viewfinder swivel release Tape hookContrast filter lever
Bubble level
Grip system
Two 3/8-16 mounting holes underneath camera
RS receptacle
(remote RUN & 24 V dc)
24 V accessory overload light
Tensioning plate
Tensioning plate
Mechanical footage counter
BAT receptacle (power input)
Main power on/off switch
12 V accessory
overload light
11 pin (12 V) accessory
receptacle
CCU receptacle
(camera control unit)
ACC receptacle
(accessories)
Compartment for 9 V timecode battery
Functional expansion module (FEM)
Functional expansion
module (FEM)
Magazine release latch
