In addition to the new ARRIMAG magazines, all 35-3 and 35-2C magazines - with the exception of the
shoulder magazines - can be used on the 435. The ARRIMAGs run up to 150 fps, the 35-3/2C magazines
up to 130 fps. The ”fps” symbol will flash if a magazine is attached that cannot be used for the set fps rate
or camera running direction. All magazines are loaded with the same loop length as on the 35-3. Timecode
can only be recorded with the new ARRIMAGs. Always make sure that a loop protector is on the magazine
when it is not on the camera. Always make sure that the magazine opening cover is on the camera when no
magazine is attached.
Note: Reverse operation with 35-3/2C 200’ (60 m) magazines can damage the camera!
Step 1: The Feed Side
Load unexposed film only in absolute dark - such as in a dark room or changing bag. Short ends load
easier if you cut the film head through the center of the perforations. Ensure that an empty plastic core is on
the take-up shaft before starting the loading procedure.
Note: Make sure that the spring loaded key of the take-up shaft engages into the keyway of the plastic film
core. Failure to do so can lead to film jams, especially during high speed takes!
• Remove the loop protector.
• Push the safety catch on the magazine door lock towards the magazine throat and flip the lock up. Turn
the lock counter clockwise until it stops and open the door.
• Swing both roller arms away from the feed and take-up shafts until they lock in place (see graphic).
• Remove the film from the film container.
• Remove the tape from the film end. Make sure that the tape is completely removed.
• Place the film roll to the left of the magazine (see graphic).
• Push the film into the left slit on the magazine throat from the inside (see graphic). Once the film engages
the sprocket roller inside the magazine throat, turn the drive gear counter clockwise until the film emerges
on the outside of the magazine throat.

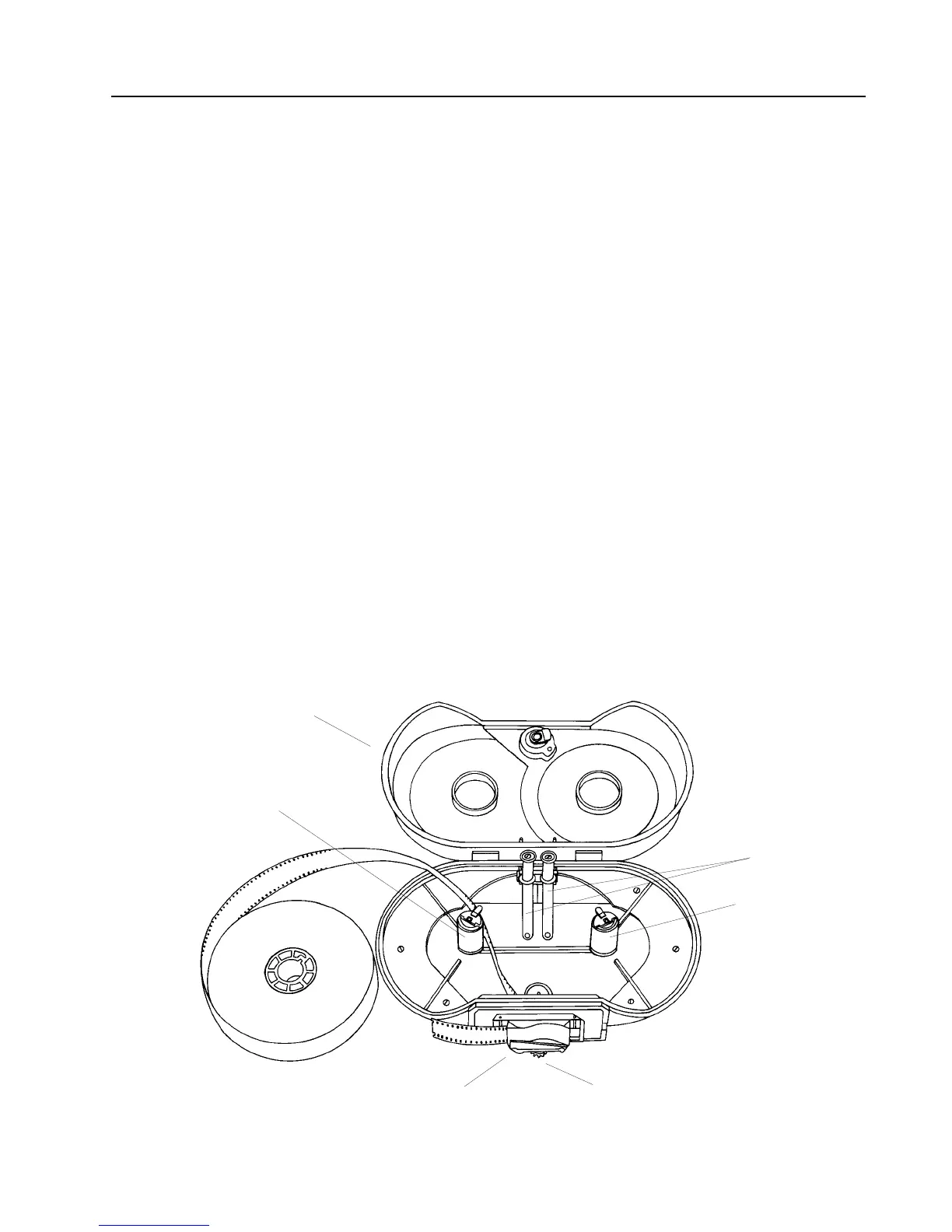

3. Loading the ARRIMAG 120 (400’)
Arriflex 435 Quick Guide, 9/97, Page 7
Feed shaft
Magazine door
Roller arms
Take-up shaft
Drive gear
Magazine throat
