Status Information and Overlays 33
Master Grips / OCU-1 Control
Info Left
Info Right
Info Top
Info Bottom
Audio
Timecode
Enables/disables status overlay of Master Grips / OCU-1 axis control (20).
Enables/disables the left section of the status info.
Enables/disables the right section of the status info.
Enables/disables the top section of the status info.
Enables/disables the bottom section of the status info.
Enables/disables display of the audio levels (16).
Enables/disables display of the timecode (12).
Overlay Brightness
The camera allows adjusting the brightness of the status overlays.
► Select MENU > Monitoring > VF > EVF Overlays > Overlay Brightness to adjust the overlay
brightness for the EVF.
► Select MENU > Monitoring > SDI > SDI 1 Processing > Overlays > Overlay Brightness to adjust the
overlay brightness for the SDI 1 output.
► Select MENU > Monitoring > SDI > SDI 2 Processing > Overlays > Overlay Brightness to adjust the
overlay brightness for the SDI 2 output.
► Set the overlay brightness in a range from 1 (the lowest brightness) to 4 (the highest brightness).

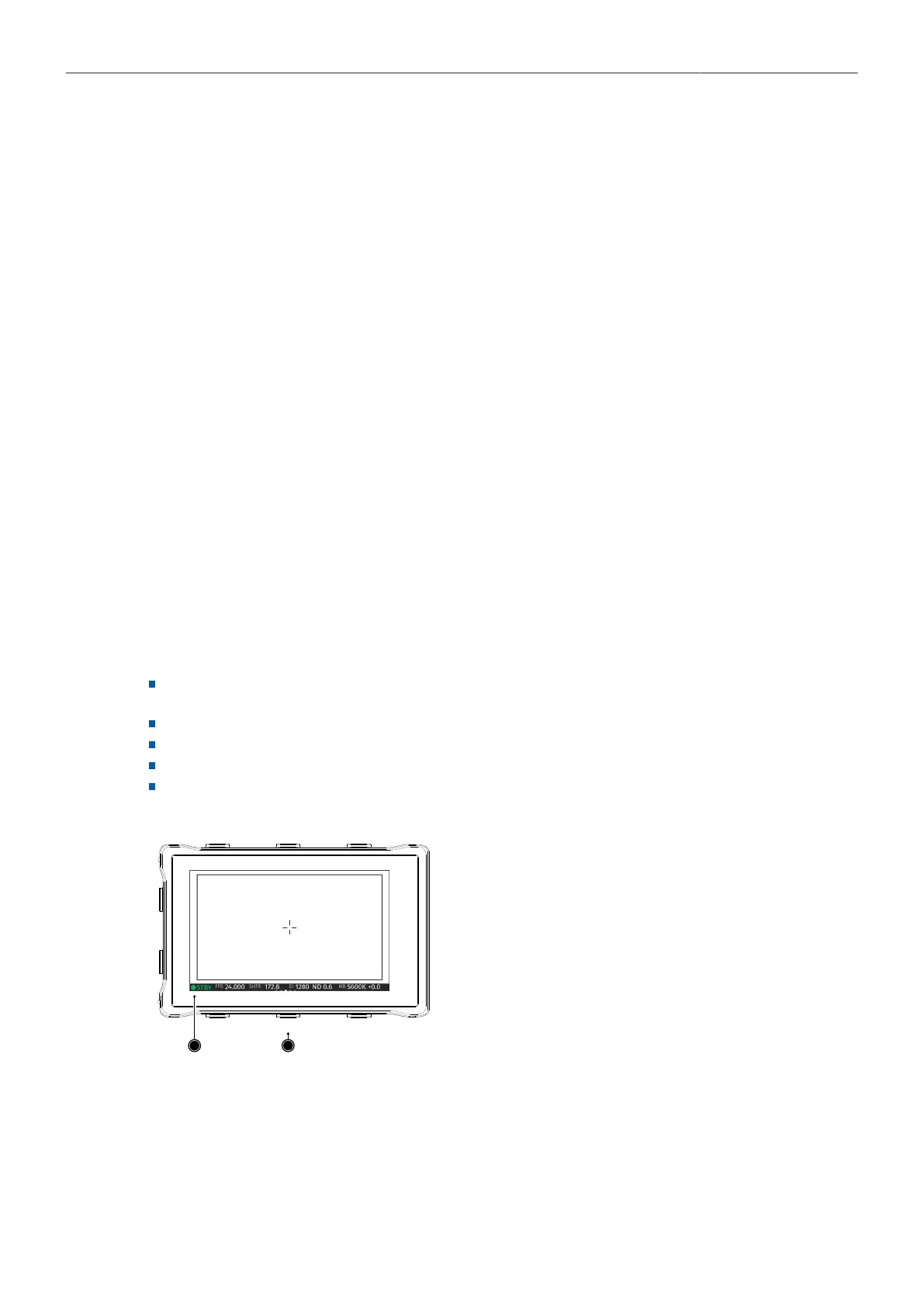

Flip-out Monitor Status Bar
The flip-out monitor of the MVF-2 shows a slightly different status information than the EVF and the SDI
outputs. When set to display the camera live image, a status bar is displayed below the image. The flip-
out monitor status bar is separated into five pages:
Main camera parameters: sensor frame rate, shutter, exposure index, ND filter and white balance
(as shown below)
Audio meters and timecode
Status icons
Lens data: focus distance, iris and focal length
Recording: media remaining capacity, clip duration, codec and battery level
1
2
Use the left and right lower screen buttons to change
the status bar (1) content. The center lower screen but-
ton (2) returns to display the main camera parameters.
