About This Manual 21

4 Layout of the ALEXA

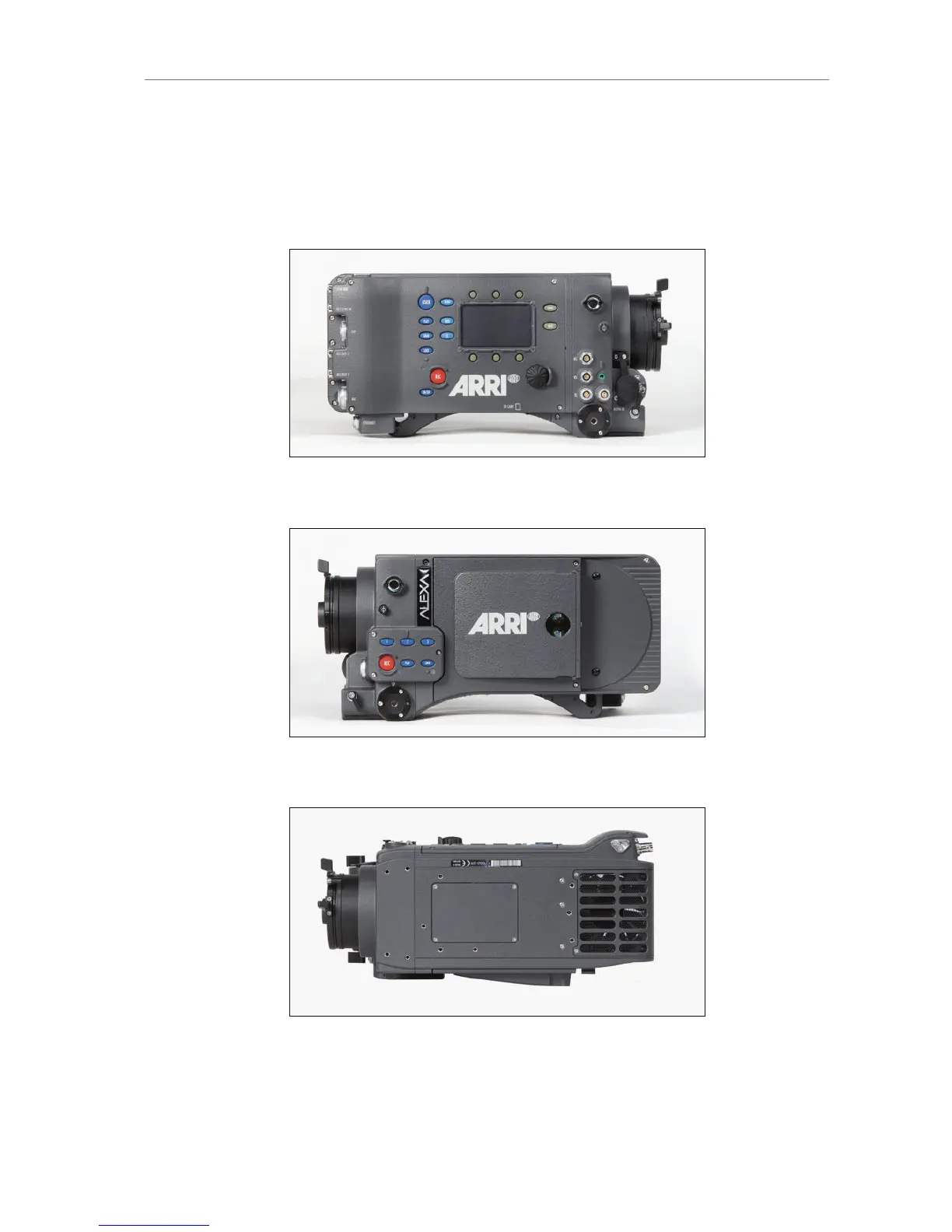

The following images show the ALEXA Classic with SxS module:

Figure 1: ALEXA right

Figure 2: ALEXA left

Figure 3: ALEXA top
