210 ALEXA M

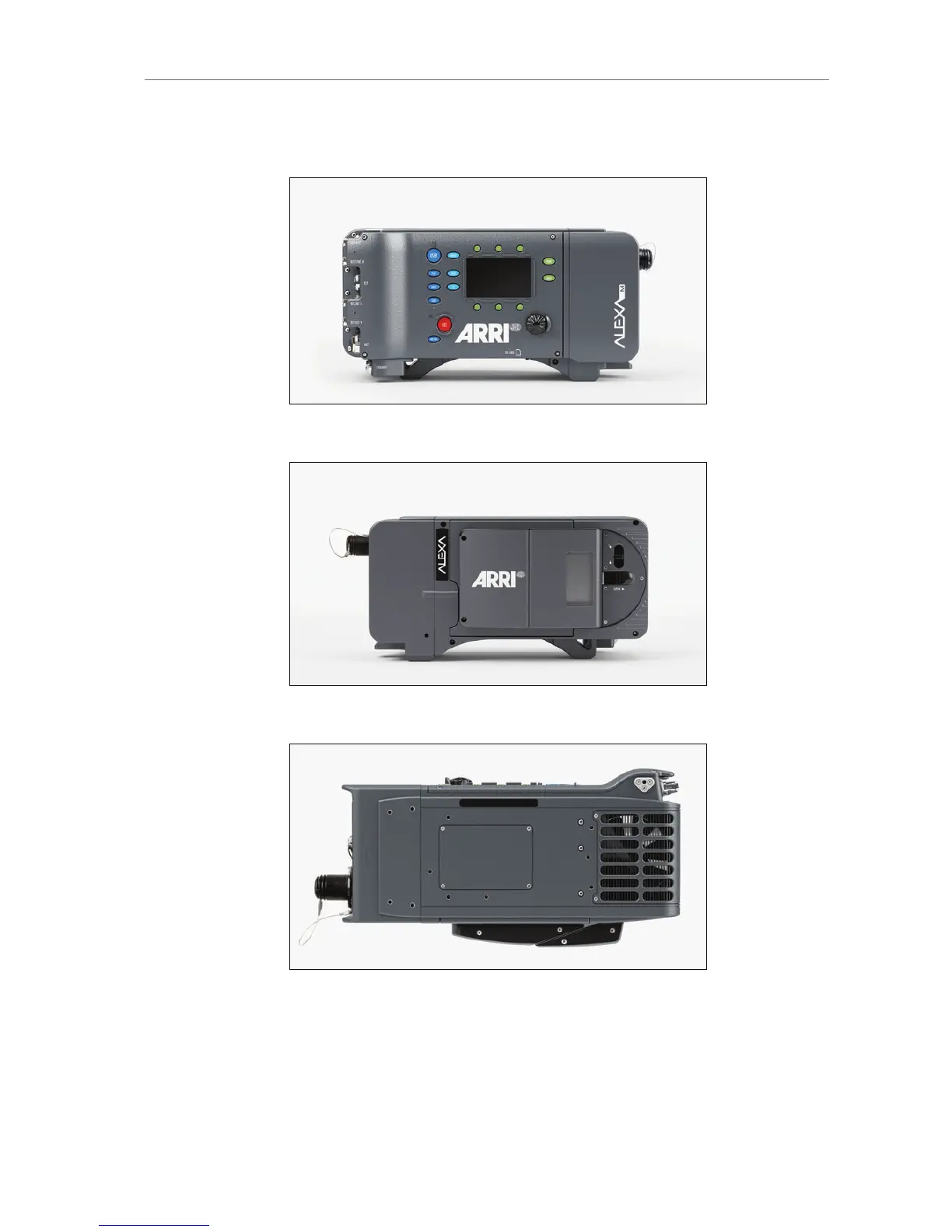

The following images show the ALEXA M body with XR module:

Figure 128: ALEXA M body right

Figure 129: ALEXA M body left

Figure 130: ALEXA M body top
