In-Camera Filter Module IFM-1 235

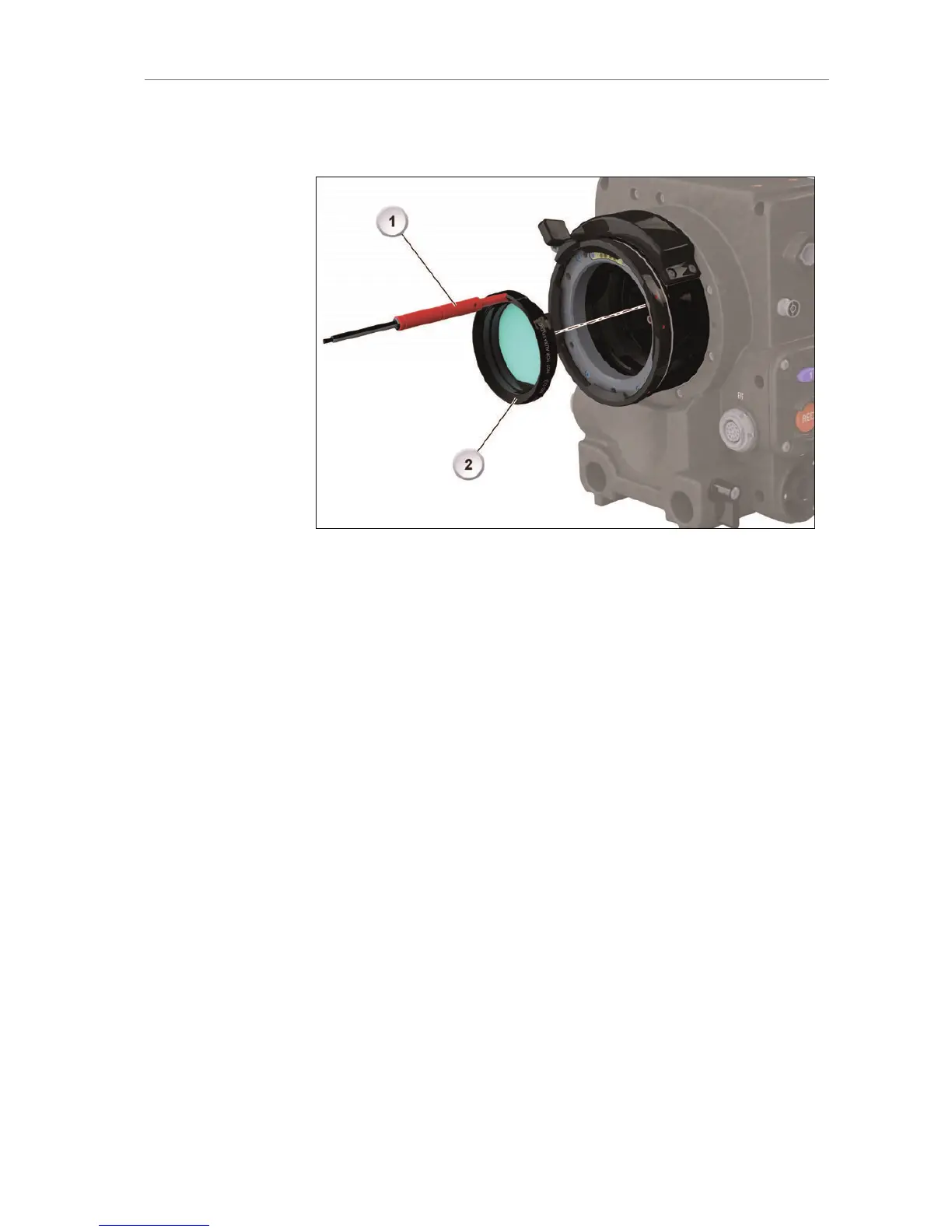

3. Pull the filter (2) from the bottom ring in the camera's PL mount. If

the filter position is held by an IFM Empty Filter Frame (applies only

to ALEXA XT), remove it likewise:
