To adjust the Safety Switch Activator
Loosen the nut and worm screw (as shown
in the instructions for the removal of the
SSA) to position the SSA correctly. Tighten
up the worm screw carefully with 1.5 mm
Allen Key. Very gently tighten the 5.5 mm
nut.
Careful! Using too much force when
tightening the screw, may break it.

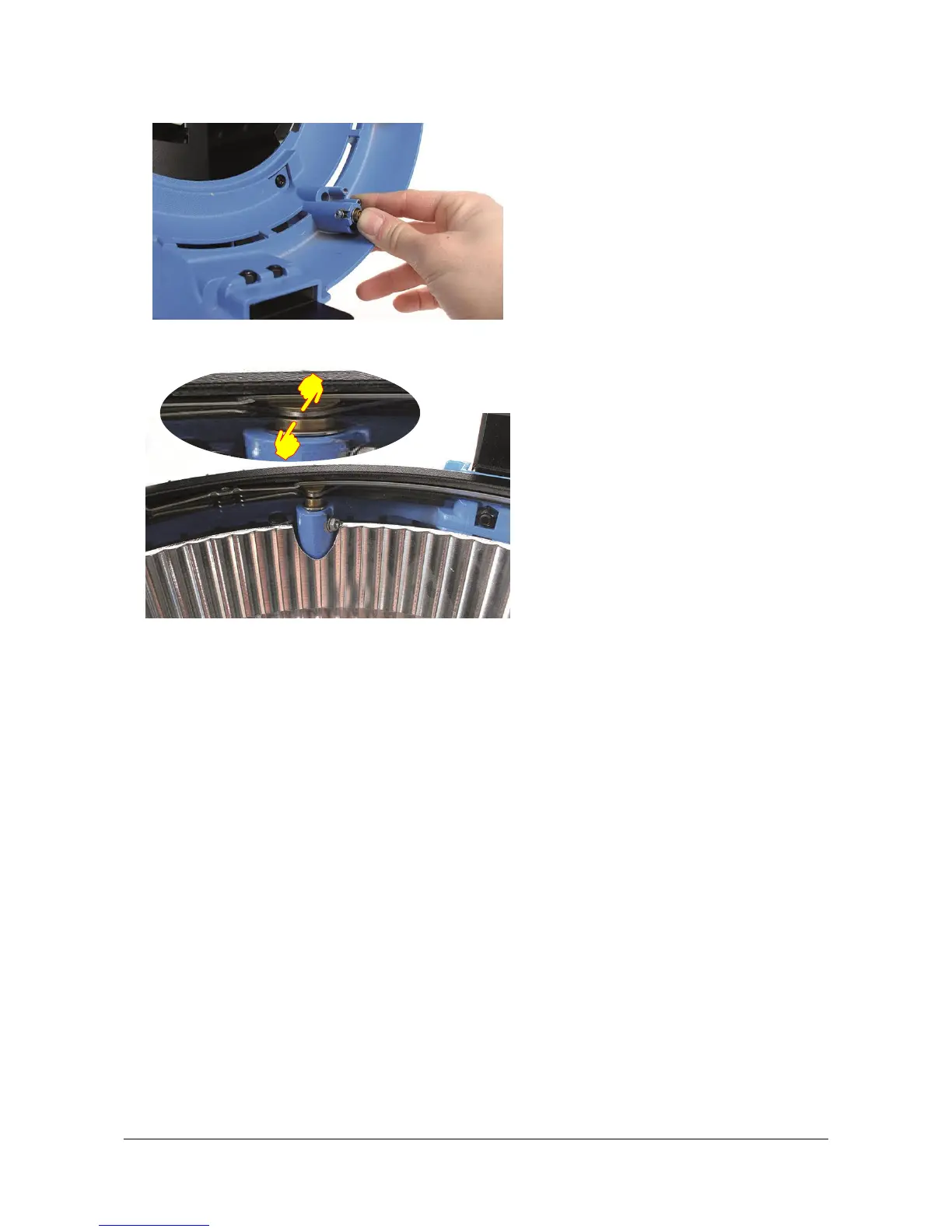

Make sure there is enough space between
the SSA (brass) and SSA pin plate (silver)
Please refer to the picture.
Listen for a ‘click’ sound. It should click
twice before the door latch closes. If this is
not adjusted properly than the safety loop
can be opened and the lamphead will not
strike.
Note: You can also measure the safety
loop. Please see the wiring diagram.
Important: If the door latch is not adjusted
properly this affects the SSA function.
