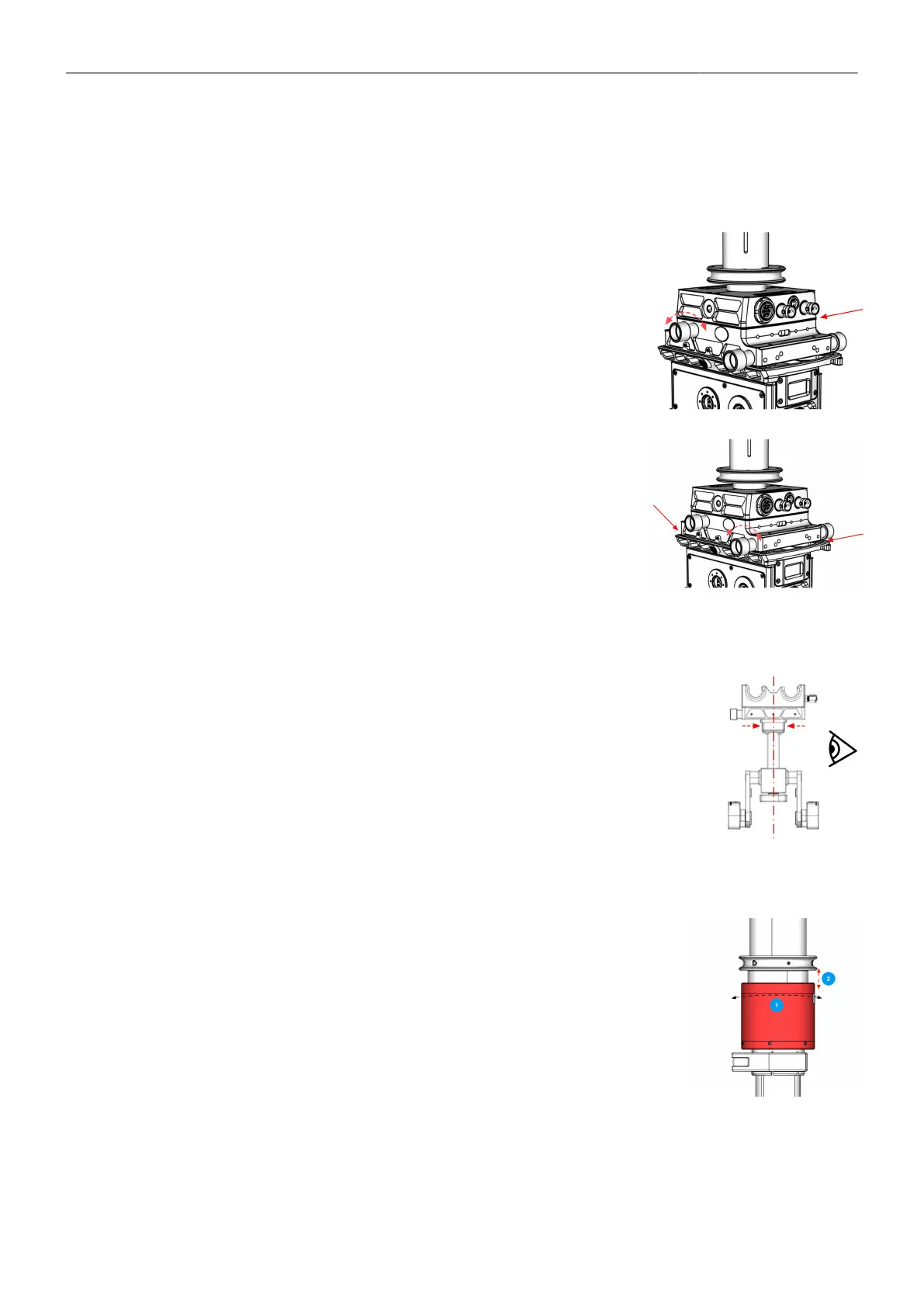

Center the Top Stage
Adjust Side to Side
► Turn the side to side adjustment until the top stage is left and right
in the center.
Or until the edges of the housing are aligned.
Adjust Fore and Aft
► Turn the fore and aft adjustment until the top stage is front and
back / left in the center.
There should be equal spacing at both ends.
Center the Pendulum
Adjust the Pendulum
► Turn the side to side adjustment until the center
column of the pendulum is centered left and right.
Center the Post
Adjust the Post Fine Trim
► Turn the fine trim adjustment until there is about 10mm / 0.4in
clearance.
