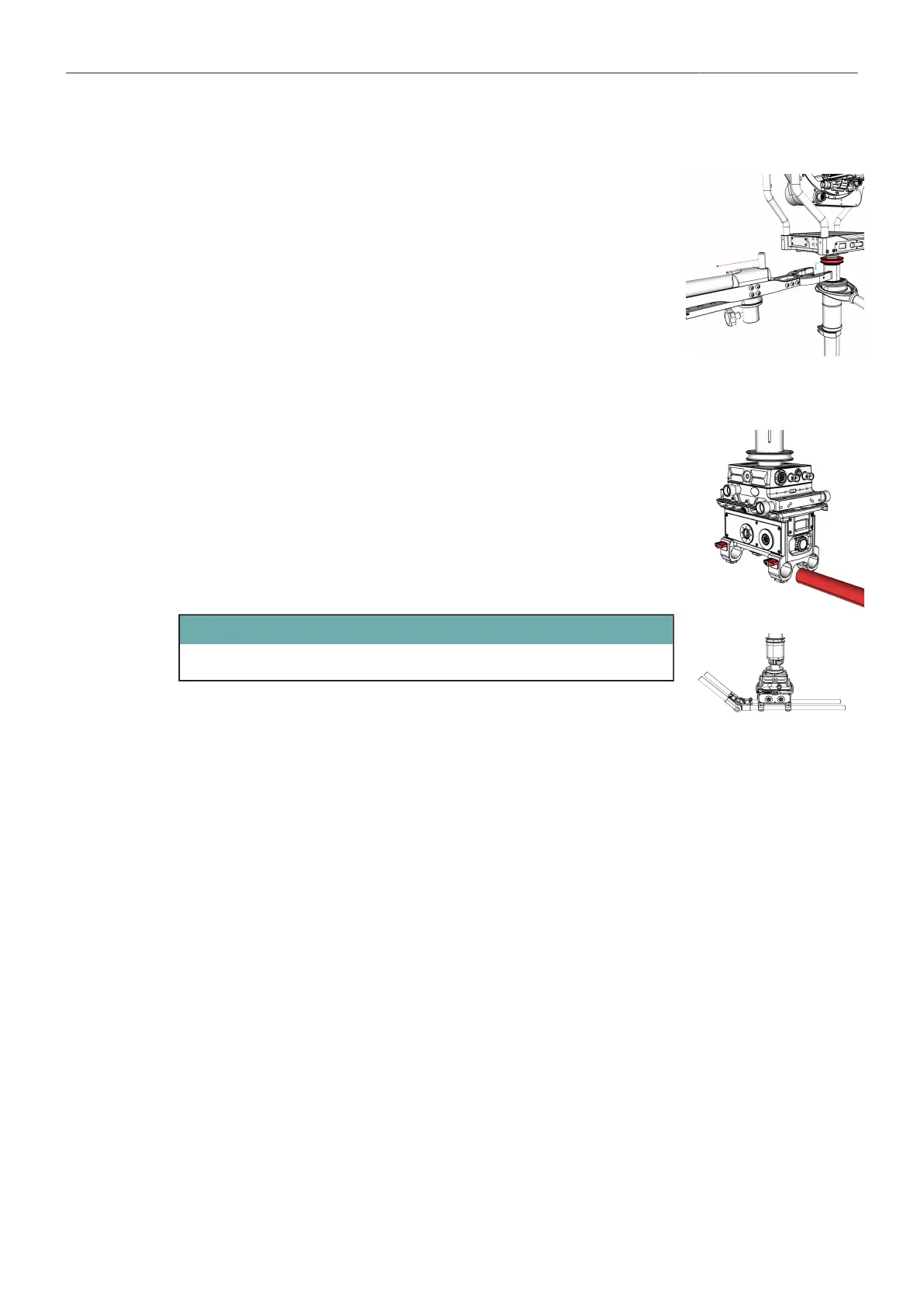

TRINITY 2 assembly quick guide 4
Place the TRINITY 2 system into the Docking Bracket
► Pusch the Balance Rod fully back first.
► Lift the rig into the Docking Bracket and slide the post into the park posi-
tion.
Add the 19mm Rods to the Batteryhanger BHM-2
► Turn both Rod Clamp wing nuts to the left to open the clamp mecha-
nism.
► Insert the desired 19mm rods with the already mounted hinge at the
back.
► Tighten both rod clamp wing nuts.
ATTENTION
Do not over tighten, when using carbon fiber rods.
To Next Page
