Arris Touchstone TM902 - Front Panel; Rear Panel

Front Panel

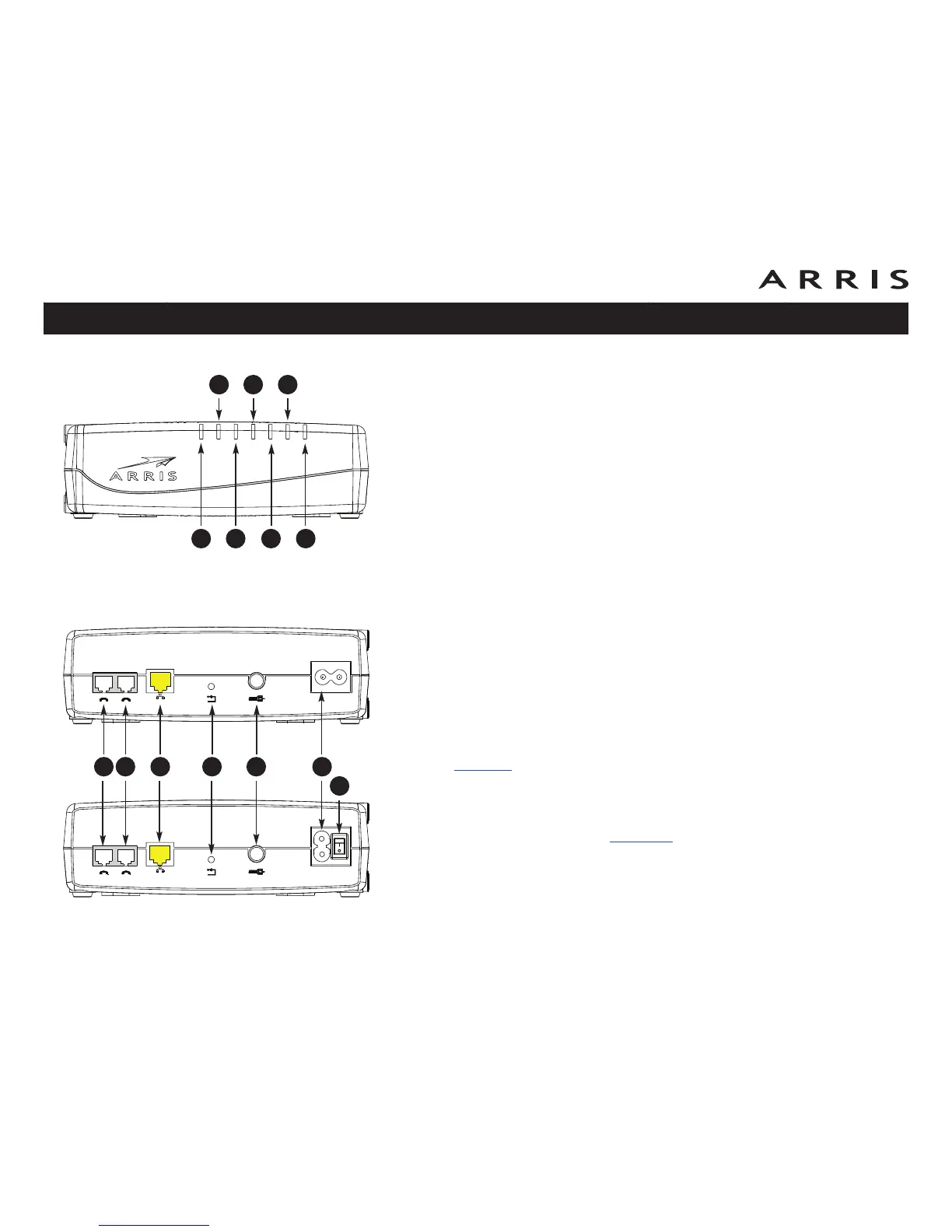

TM902A/B/S Front Panel
The front of the Telephony Modem provides the following indicators.
A Tel 2: indicates status of telephone line 2.
B Tel 1: indicates status of telephone line 1.
C Link: indicates Ethernet connectivity between the Telephony Modem and
computer. It may be yellow or green to indicate the connection speed.
D Online: indicates internet data transmission status.
E US: indicates upstream connectivity. It may be yellow or green to indicate
the connection speed.
F DS: indicates downstream connectivity. It may be yellow or green to indi-
cate the connection speed.
G Power: indicates whether AC power is available to the unit.
Rear Panel
The rear of the Telephony Modem has the following connectors and controls:
TM902A/B/S Rear Panel
A Tel 1 (grey): connector for the first phone line.
B Tel 2 (grey): connector for the second phone line.
C Ethernet
connector (yellow): for use with a computer or home network LAN
connection.
D Reset button: resets the Telephony Modem as if you power cycled the unit.
Use a pointed non-metallic object to press this button.
E Cable: connector for the coax cable
.
F Power: connector for the power cord.
G Power Switch (TM902S only): power On/Off switch.
Touchstone TM902 Telephony Modem User’s Guide
Safety
Getting
Started Installation
Ethernet
Configuration Usage Troubleshooting Glossary
15
Tel 2
Tel 1
Link
Online
US
DS
Power
TM902
A
B
C
D
E
F
G
TM902A/B/S
Tel 1
Ethernet
10/100/1000
Tel 2 Reset
Cable
Tel 1
Tel 2
Ethernet
10/100/1000
Reset
Cable
A CB D E F
TM902A/B
G
TM902S
