Aruba Instant On AP22 Access Point | Installation Guide 7
c. Insert two screws to secure the mount bracket. Screws are not included in the package.

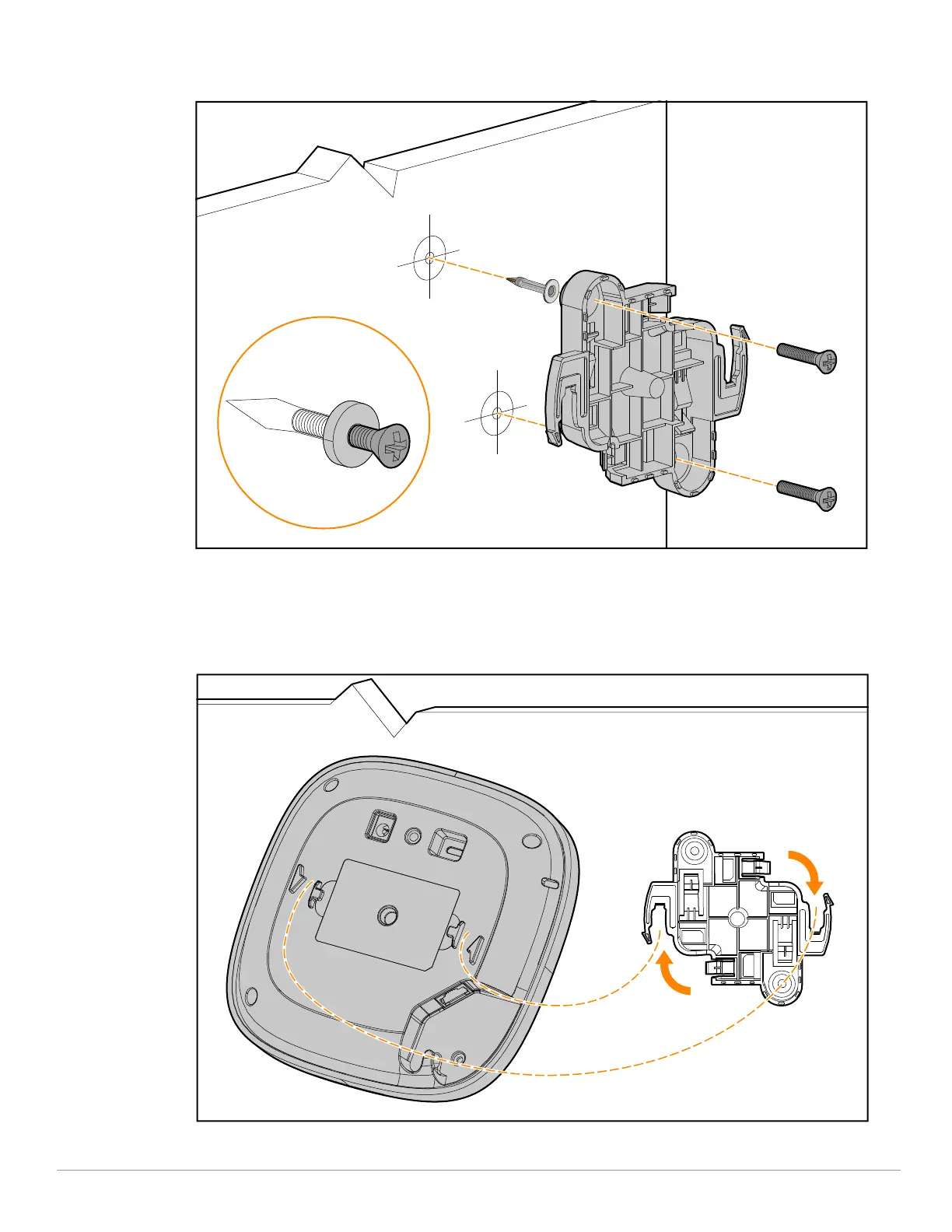

Figure 7 Attaching the Mount Bracket to a Solid Surface
2. Attach the access point to the secured mount bracket as shown in Figure 8.
a. Align the access point with the mount bracket, placing the access point so that it’s mounting tabs are at an
angle of approximately 30 degrees to the mount bracket.
3. Pushing towards the solid surface, rotate the access point clockwise until it clicks into place (see Figure 8).
Figure 8 Attaching the Access Point to the Mount Bracket

Aruba AP22 Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
Maximum Data Rate	1.775 Gbps
Antenna Type	Integrated
Ethernet Ports	1 x 1 Gbps
Power over Ethernet	802.3af
Mounting Options	Ceiling, Wall
Dimensions	160 mm x 160 mm x 37 mm
Interfaces/Ports	1 x RJ-45
PoE Power Consumption	12.3 W
Input Voltage	48 VDC (802.3af/at)
Operating Temperature	0°C to 40°C
Wireless Speed	1775 Mbps
MIMO Technology	2x2
