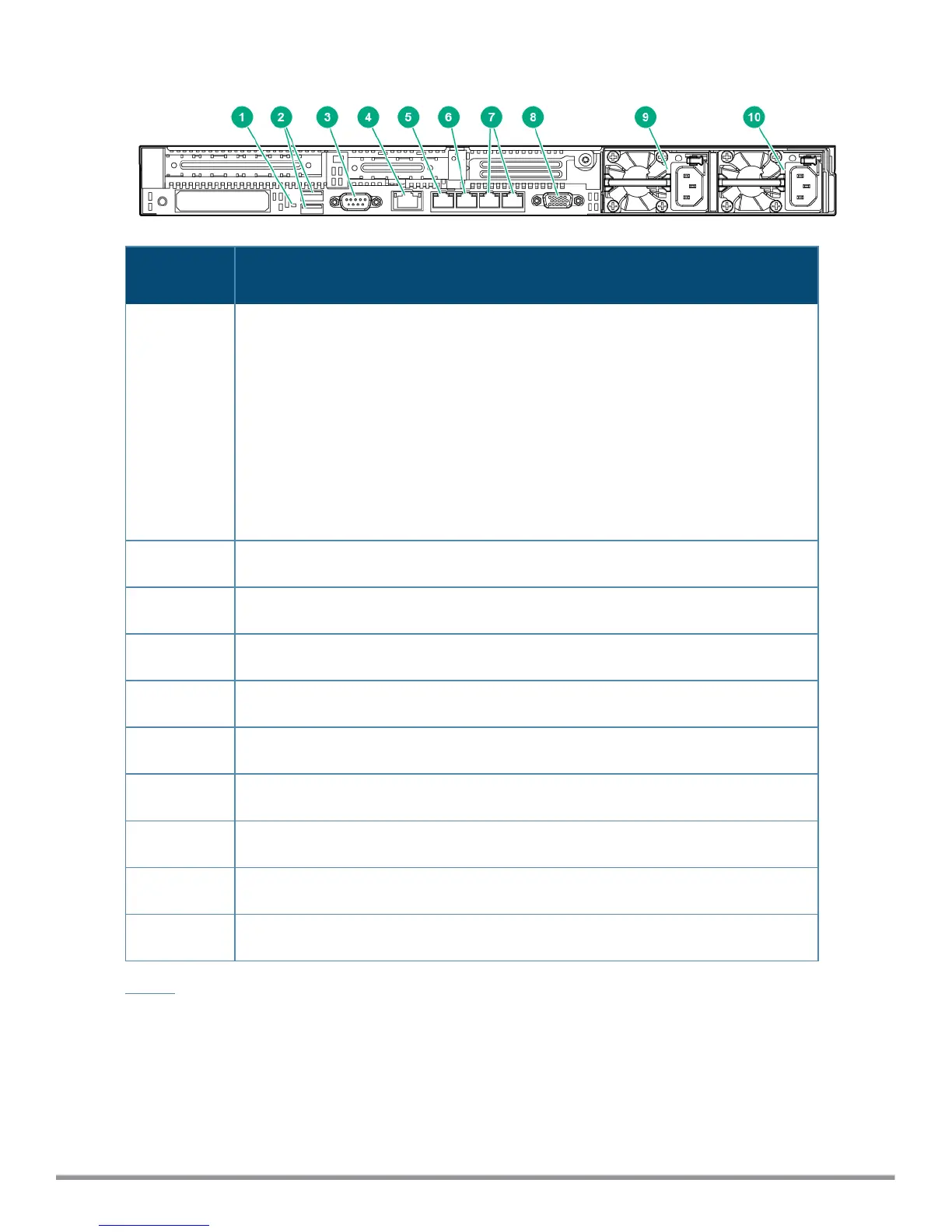

Figure 3 Ports and Components on the ClearPass C3000 Hardware Appliance
Callout
Number
C3000 Port/Component
1 UID (Unit ID) LED
The UID LED helps you identify and locate a system, especially in high-density rack
environments. Additionally, the UID is used to indicate that a critical operation is
underway on the host, such as Remote console access or ROM flash.
The "current state" (on or off) of the UID is the last state chosen using one of these
methods. If a new state is chosen while the UID is blinking, this new state becomes
the current state, and takes effect when the UID stops blinking.
NOTE: The Unit ID Light web page does not automatically refresh itself if the state of
the actual light changes after the page is loaded. To ensure the page accurately
reflects the state of the UID Light, click on the Virtual Indicators link to update the page
2 USB ports (2)
3 Serial port
4 iLO (Integrated Lights-Out) port and Management port (eth0)
5 Management port (eth0)
6 Data port (eth1)
7 Destination SPAN ports (2)
8 VGA Connector
9 Fan and Power Supply
10 Optional redundant fan and Power Supply
Table 4 provides the specifications for the ClearPass C3000 hardware appliance.
ClearPass 6.7 Getting Started Guide 12
