ARUSNAVI ELECTRONICS ARNAVI 5 - RS-232 Interface

USER MANUAL [1.4]
Page 29
ATTENTION: WHEN ACTIVATING THE ‘CAN EXT’ MODE OF RS232 INTERFACE,
THE SAME MODE OF RS485 INTERFACE MUST BE DEACTIVATED AND THE CAN
PROGRAMME NUMBER MUST BE DIFFERENT FROM ‘3’.
2.1 RS-232 INTERFACE

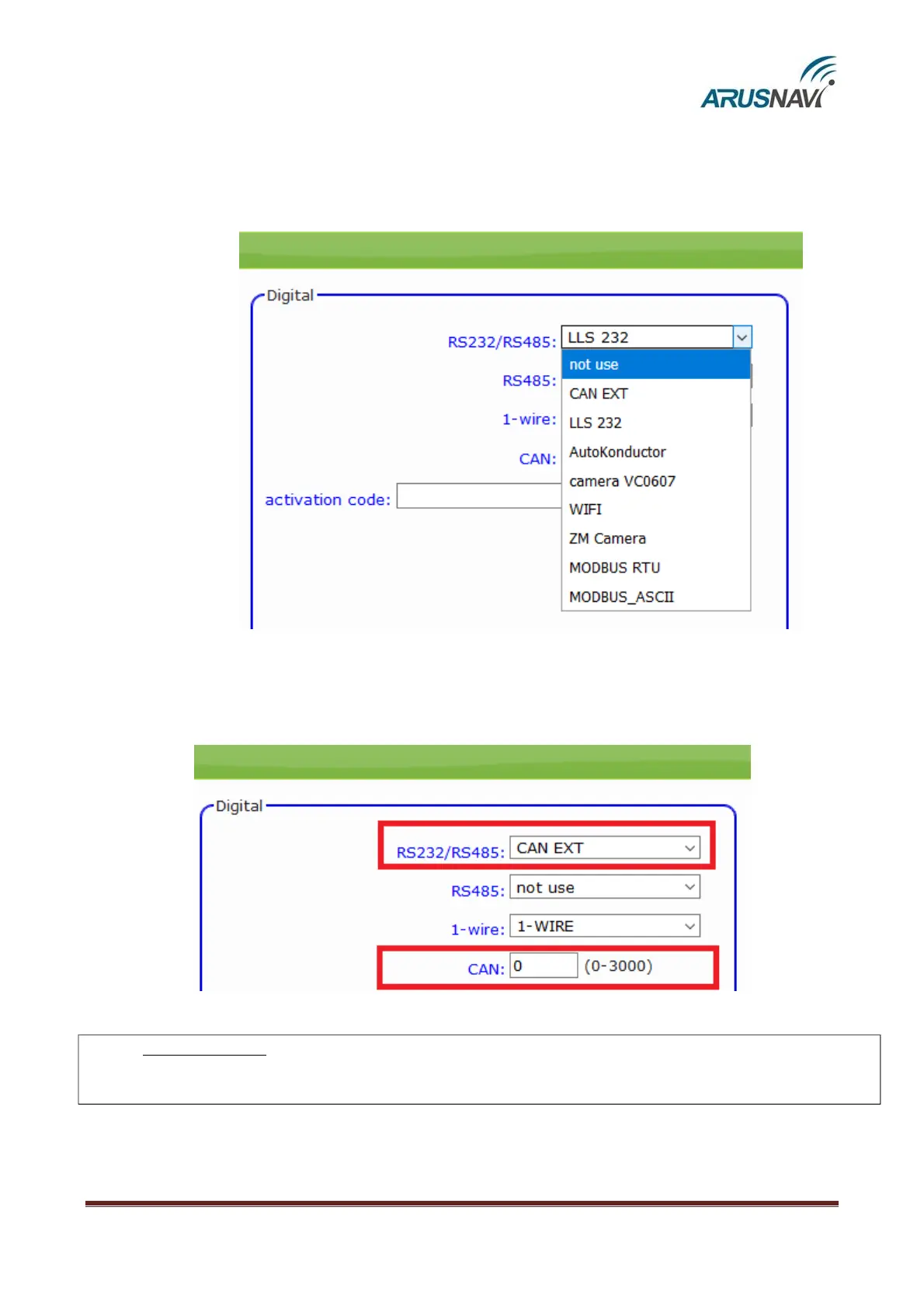

For correct operation, it is necessary to set the respective operation mode of the R232 digital input in
the tracker settings.
“CAN EXT” mode – connecting an external CAN module via the RS232 interface.
The programme number for CAN can be specified through the configurator in the field
‘CAN:’.
