2. APPEARANCE OF THE DEVICE AND MAIN TRACKER
CONNECTOR PINOUT
The appearance of the device is presented in Fig. 1 and 2. The pin assignment of the main tracker
connector is presented in Fig. 3 and described in Table 2.

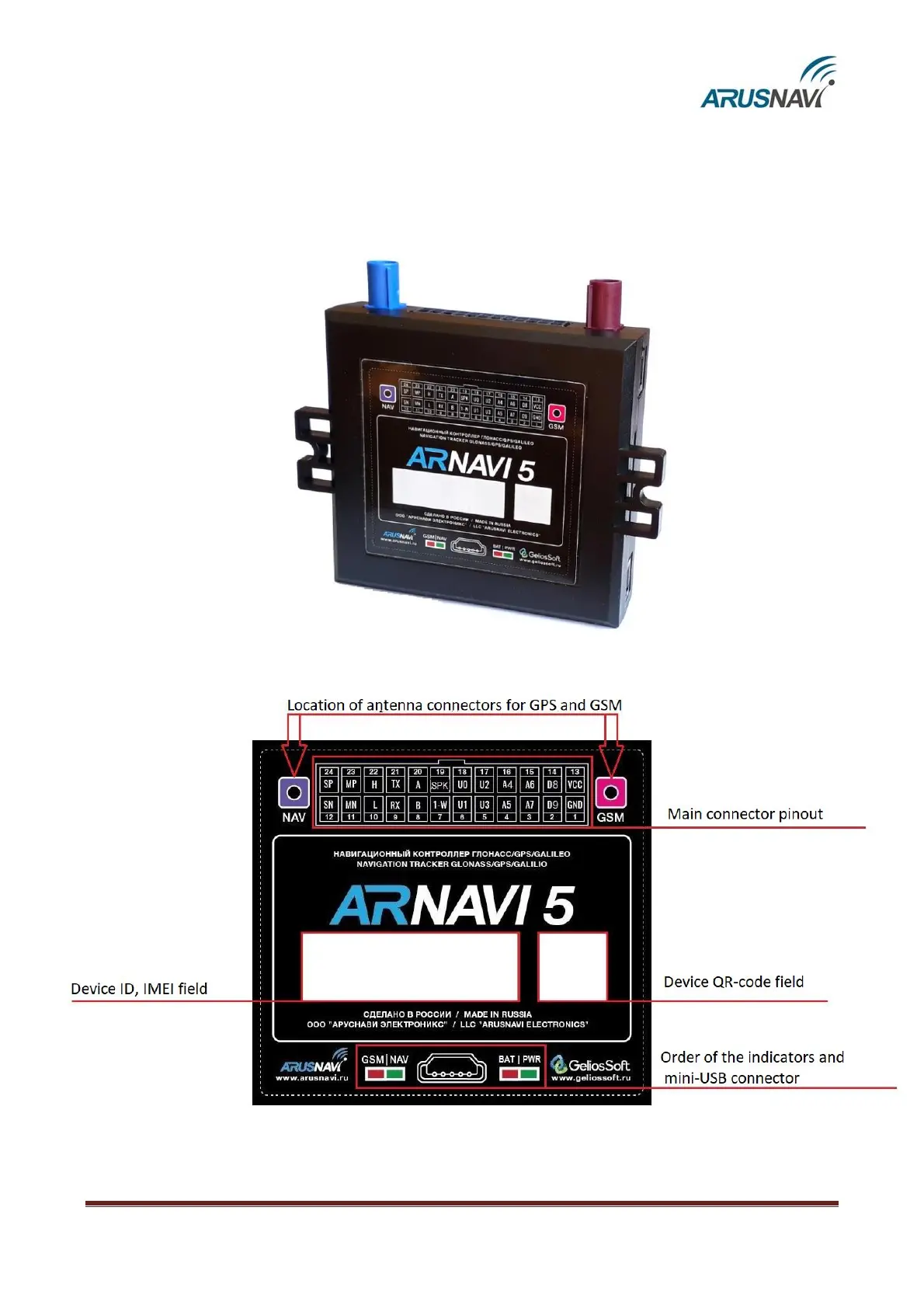

Fig. 1 – Appearance of the device
Fig. 2 – Information part of the device
