AsantéTalk Ethernet to LocalTalk Converter
22
•

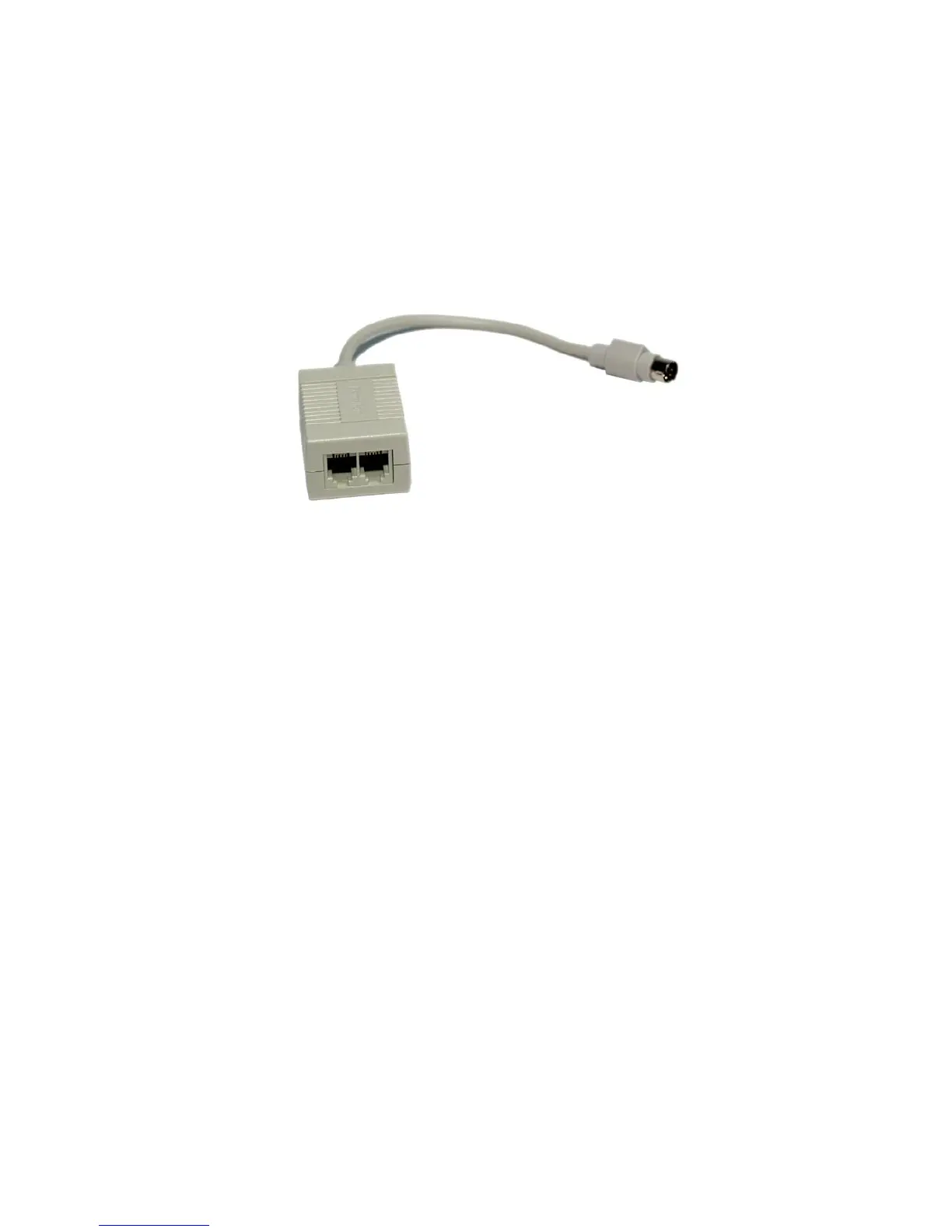

Two LocalTalk connectors are REQUIRED. One of these
connectors must be plugged into the AsantéTalk via the
attached din-8 cable. The other must be plugged into the
printer’s din-8 connection. A phone cord (RJ11) must then
be connected between the two LocalTalk connectors. A
terminator must then be plugged into the spare phone jack
on each end of the daisy chain (at the first and last Local-
Talk connector). The phone cord and a terminator will
come with each LocalTalk connector
