ASCO Series 300 Quick Connect Power Panel
381333-464 www.ascopower.com 3
Prior to Installation: Site Preparation
Prepare installation site according to local codes.
The ASCO Series 300 Quick Connect Power Panel
is to be secured to a building
using appropriate
3/8“ fasteners (See Figure 1).
The surface where the ASCO Series 300 Quick Connect
Power Panel is to be secured must be capable of
supporting the weight of the cabinet as well as the cable
attached to it.
The following should be taken into consideration when
locating the
ASCO Series 300 Quick Connect Power Panel:
– The ASCO Series 300 Quick Connect Power Panel is
designed for exterior operation ONLY
– Identify and meet local codes and local Authority
Having Jurisdiction (AHJ)
– To prevent carbon monoxide poisoning from
improperly ventilated generator emissions, the Power
Panel must be mounted outdoors only. The mounting
location is to be carefully selected to allow convenient
connection to a generator, and located a suitable
distance away from any building openings or HVAC
inlets.
– Proper clearance must be allowed in front of the
ASCO Series 300 Quick Connect Power Panel to allow
for opening of access doors and attachment of
externally connected cables. This distance should be
no less than six (6) feet from the face of the panel.
– Access by unauthorized personnel and vandals should
be taken into consideration when locating this device.
Shipment: Unpacking and Inspection
Be careful in the use of sharp object when cutting
packaging
as damage to the outer enclosure
may result.
Perform a visual inspection to ensure the door and handle
are in
functioning condition and that the panel integrity is
intact
.

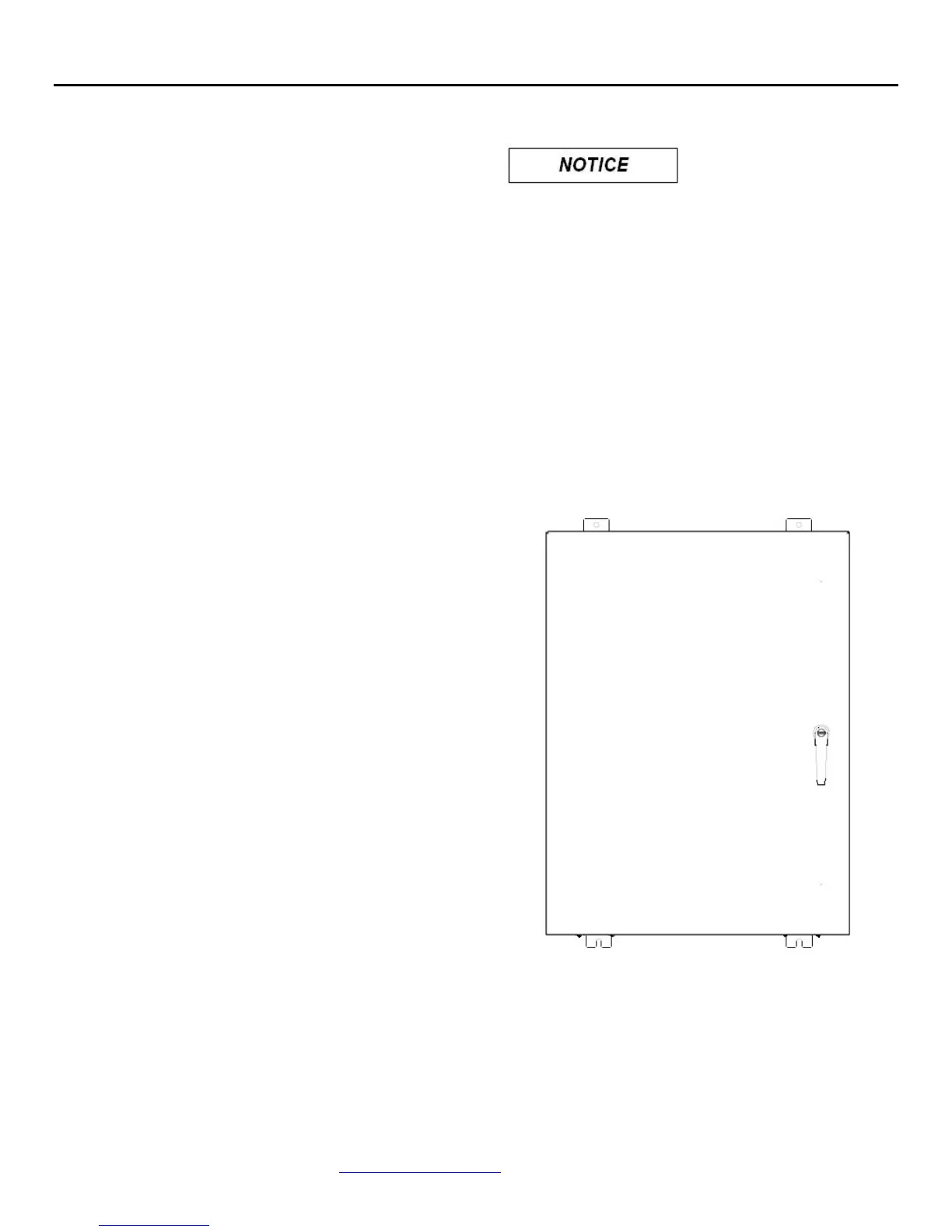

Figure 1
Front view with mounting holes

Asco 300 Series Specifications

General

Type	Automatic Transfer Switch
Poles	2, 3, 4
Enclosure Type	NEMA 1, 3R, 4, 4X, 12
Amperage Range	30-4000 Amps
Certifications	UL 1008, CSA
Operation	Automatic
Transfer Type	Open, Closed, Delayed
Control Panel	Microprocessor-based
Standards	IEEE
