2.3 IPBL
The following versions of the IPBL are available:
• IPBL IP-DECT Gateway VAC/VDC (for 110/230 VAC or 48 VDC)
• IPBL IP-DECT Gateway VDC (for 48 VDC)
2.3.1 Overview

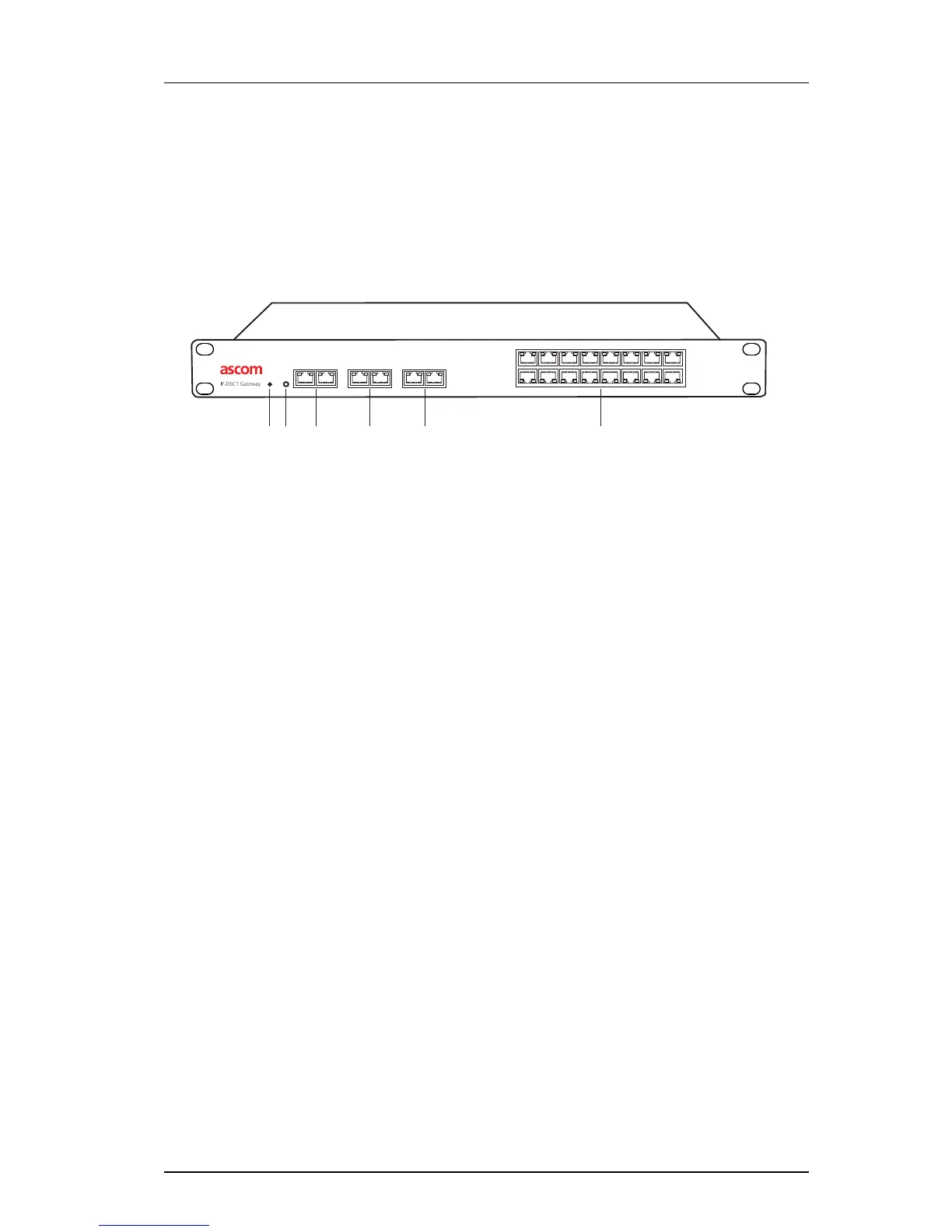

Figure 4. Overview of the IPBL
2.3.2 Power Supply
The power supply are located at the rear of the IPBL. The IPBL can be powered using the
following alternatives:
• 110/230 VAC (only IPBL IP-DECT Gateway VAC/VDC)
• 48 VDC
NOTE: For more information, see 4.3 Power the IPBL on page 31.
Software
The software in the IPBL can be updated by downloading new software without
disconnecting the equipment. The new software is stored in flash memory. For
information on how to update the software in the IPBL, see the applicable Installation and
Operation Manual for the IPBL.
Pos. Name Function
1 Reset Resets the IPBL. For information on how to use the reset
button, see the applicable Installation and Operation
Manual for the IPBL.
2 Status LED Indicates the status on the IPBL.
3 Lan 10BASE-T/100BASE-T Ethernet interface.
LAN1 port must be used in the IP-DECT system (LAN2 port
is for administration only). Note: This is not applicable
when RSTP is used. For information about RSTP, see the
applicable Installation and Operation Manual for the
device.
4 Synchronization Sync ring in and sync ring out interfaces.
5 Reference Reference sync in and reference sync out interfaces.
6 Base station 01-16 ISDN U
PN
DECT base station interfaces.
