ASCOM IP-DECT IPBS1 - Connecting Base Station Cables; Final Base Station Mounting

TD 92989EN
15 October 2014 / Ver. B
Installation Guide
IP-DECT Base Station & IP-DECT Gateway
24
Pin the BS3x0/DB1 Cable

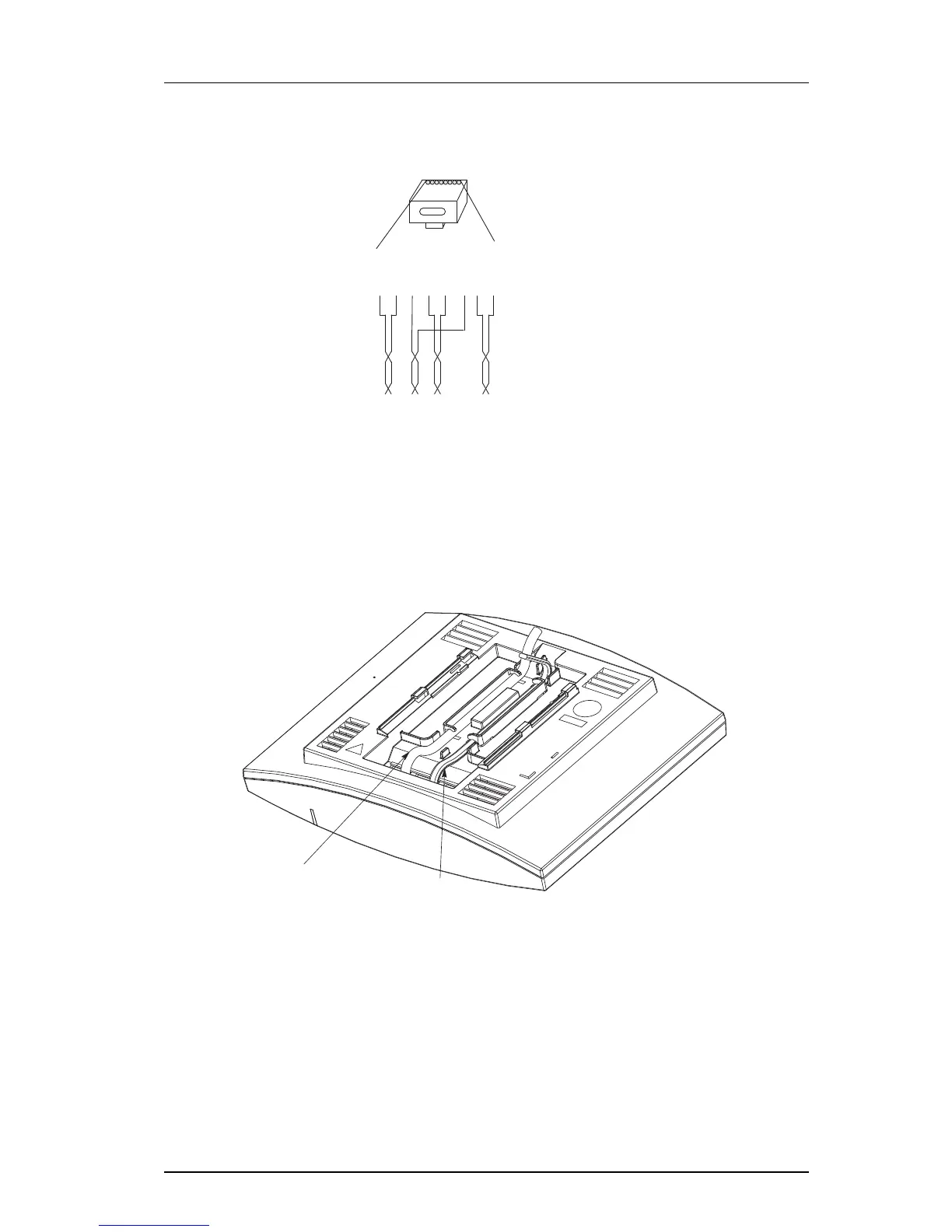

Figure 14. Connector pinning of the Data connector
IMPORTANT: If local power supply is used, the EPP cable pair must NOT be connected.
3.2.8 Connect the Base Station Cables
1 Only for IPBS1: If it is required that the cables enter the base station centrally from
above, guide the cables through the recess in the middle of the base station as
shown below.
2 Plug the modular jack of the data cable into one of the data/power connectors.
3 When an AC-adapter is used:
• Plug the modular jack of the AC-adapter in one of the data/power connectors.
• Plug the AC-adapter into a wall-outlet.
3.2.9 Mount the Base Station
Hold the base station flat against the mounting bracket and move it downwards until it
clicks, see below.
R
J45
m
odular jack
EPP-b EPP-a SC1-a SC0-a SC0-b SC1-b NC NC
NC = Not Connected
EPP
= Express Power Pairs
SC = Serial Channel
008
15432678
Power cable
(if used)
Data cable
016
