TD 92989EN
15 October 2014 / Ver. B
Installation Guide
IP-DECT Base Station & IP-DECT Gateway
22
6 Connect the coaxial cables to the MCX connectors on the base station.
Back view while lying down
MCX connectors
7 Mount the base station (3), see 3.2.9 Mount the Base Station on page 24.

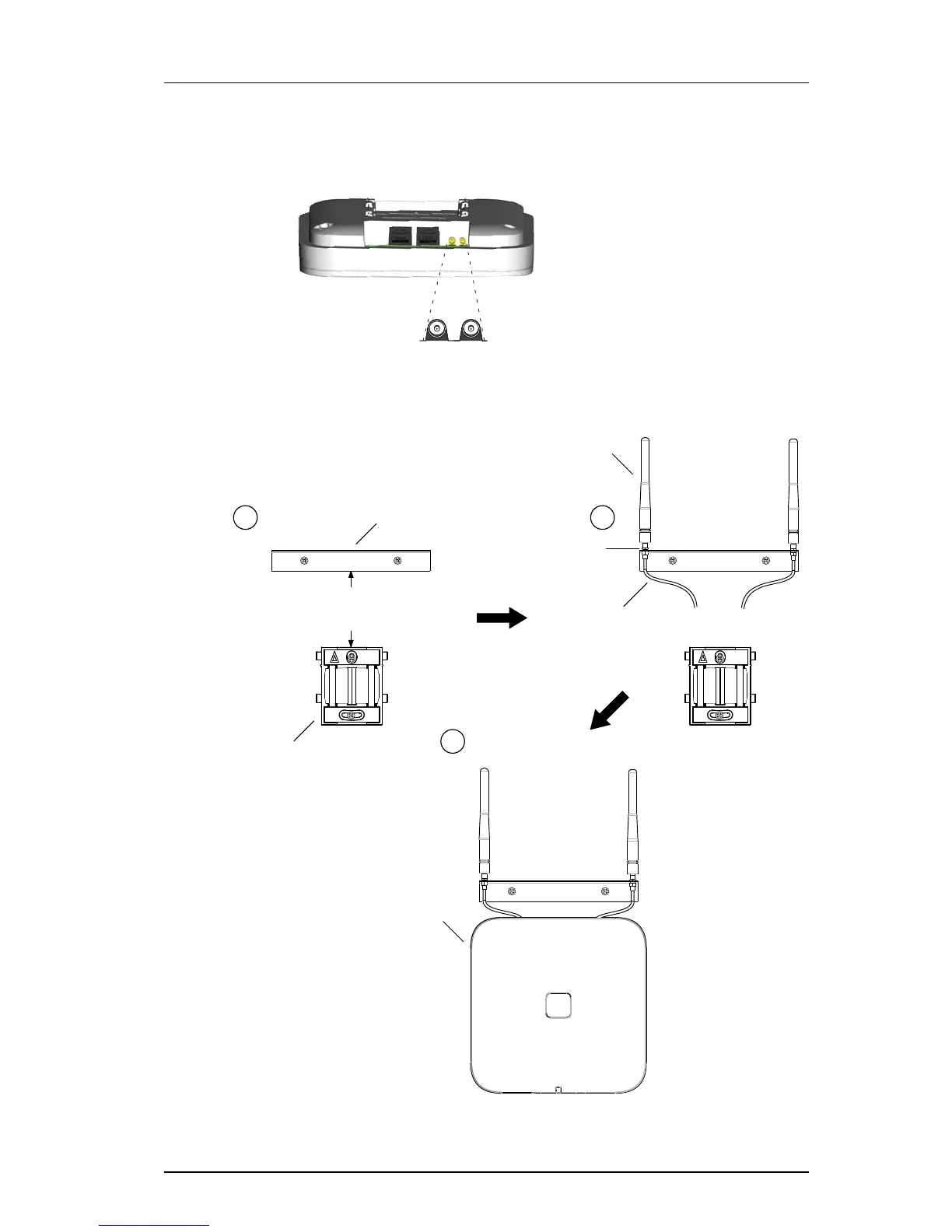

Figure 11. Connect external antennas.
TOP
Min 74 mm
Max 250 mm
1
3
coaxial cable
lock nut
antenna
base station
antenna bracket
mounting bracket
2
TOP
