08 October 2018 / Ver. D 4
TD 93272EN
Installation Guide
Application Server
1 Introduction
The Messaging, Assignments, and Reporting Interface (MARi) provides Reporting
templates on an embedded platform for better analysis of trends and responsiveness.

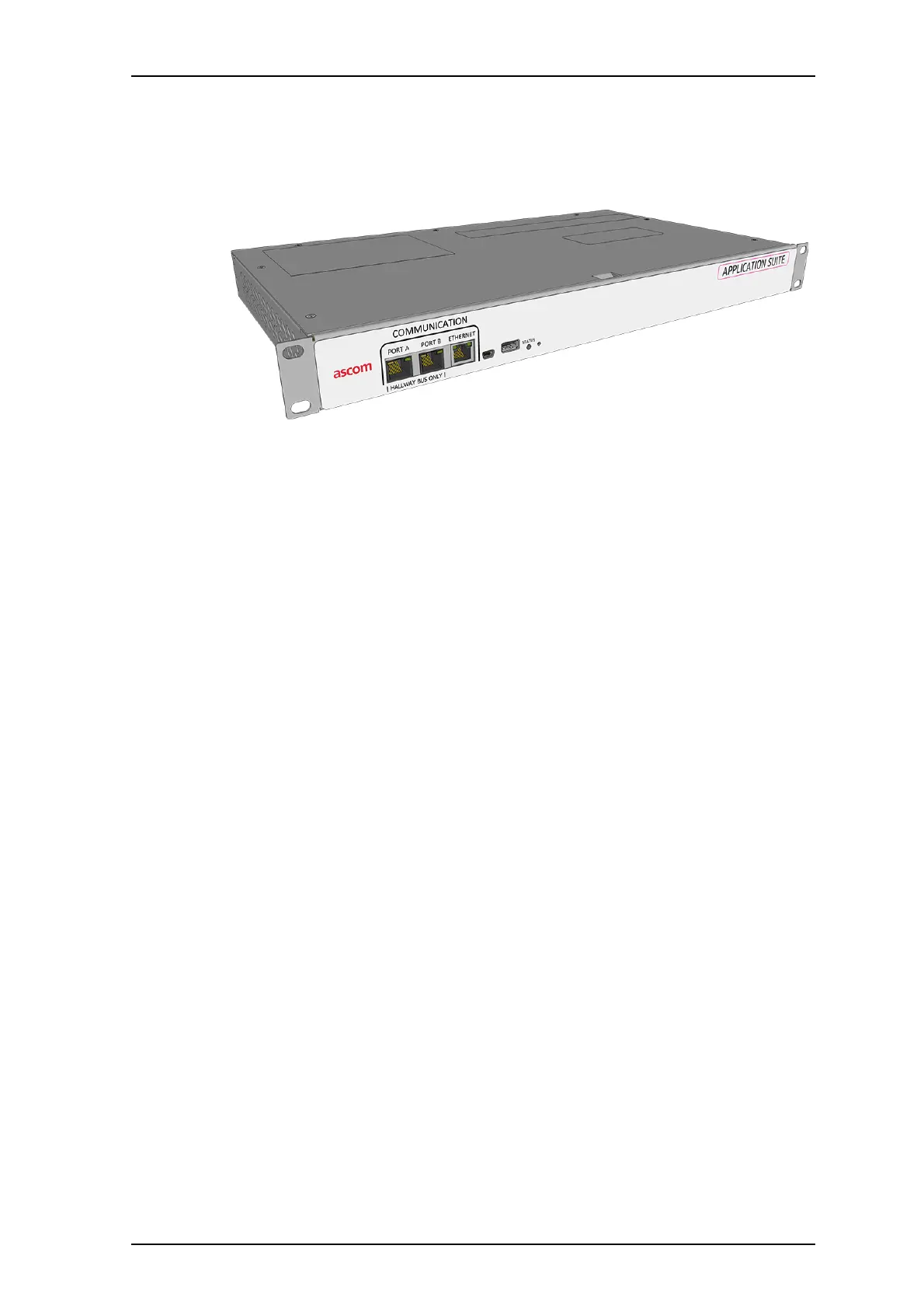

NUAPPSVC-H is one part of the MARi hardware package that also includes the FE3-
NKABAE teleCARE IP System Manager (NISM2). MARi integrates with teleCARE IP NISM
software and Telligence Integration Module.
The NUAPPSVC-H functions as a computer server, the operation is ancillary to UL 1069 or
UL 2560 normal operations.
Note: For NISM2 installation instructions, refer to the teleCARE IP Emergency Call
System Installation Guide (p/n TD 93021US).
Specifications
1.1 About this Document
This document is used for installation and configuration of the module, as well as for
administration and troubleshooting. Primary target groups:
• The field engineer that installs, maintains and troubleshoots the system
• The system administrator responsible for the IT management at the customer site, that
needs to get error messages, to survey and have control of the system.
Electrical rating
Input: 100-240Vac, 50-60Hz
Power dissipation
250W (890 BTUs)
Ethernet port data
throughput rating
10/100 MBPS
Mounting
19-inch (48.3cm) wide rack mountable
or wall mountable in standard third-party
sectional cabinet
Termination
RJ-45 ports: Ethernet
Status Indicators
Blue LED for AC Power
Green and Amber LEDs for Port A and
Port B (not approved for use)
Green LEDs for Ethernet
Fuse
250V 5.0A
Operating environment
Temperature/Humidity
32 to 122°F (0 to 50°C).
0 to 95% RH, non-condensing at 90°F
(32°C)
