Installation Guide
Application Server
4 Installation and Configuration
The Application Suite can be placed horizontally in a 19inch rack. It must be fixed by
screws or other fixtures to the rack, and must not be easily movable.
4.1 Installation Procedure
1 Mount the device, see 4.2 Mounting below.
2 Connect the supply voltage, see 4.3 Supply Voltage below.
3 Connect the LAN cable to the “Ethernet” RJ45 jack on the front of the
Application Suite.
4 Access the module via the web interface, see “Accessing the Application
Suite” on page 11.
5 Fill in all required data, see “Basic Configuration” on page 12.
4.2 Mounting
The Application Suite should be placed in a dry environment with a temperature range of
32 to 122ºF (0 to +50ºC).
The Application Suite is made for front mounting in a 19inch rack.

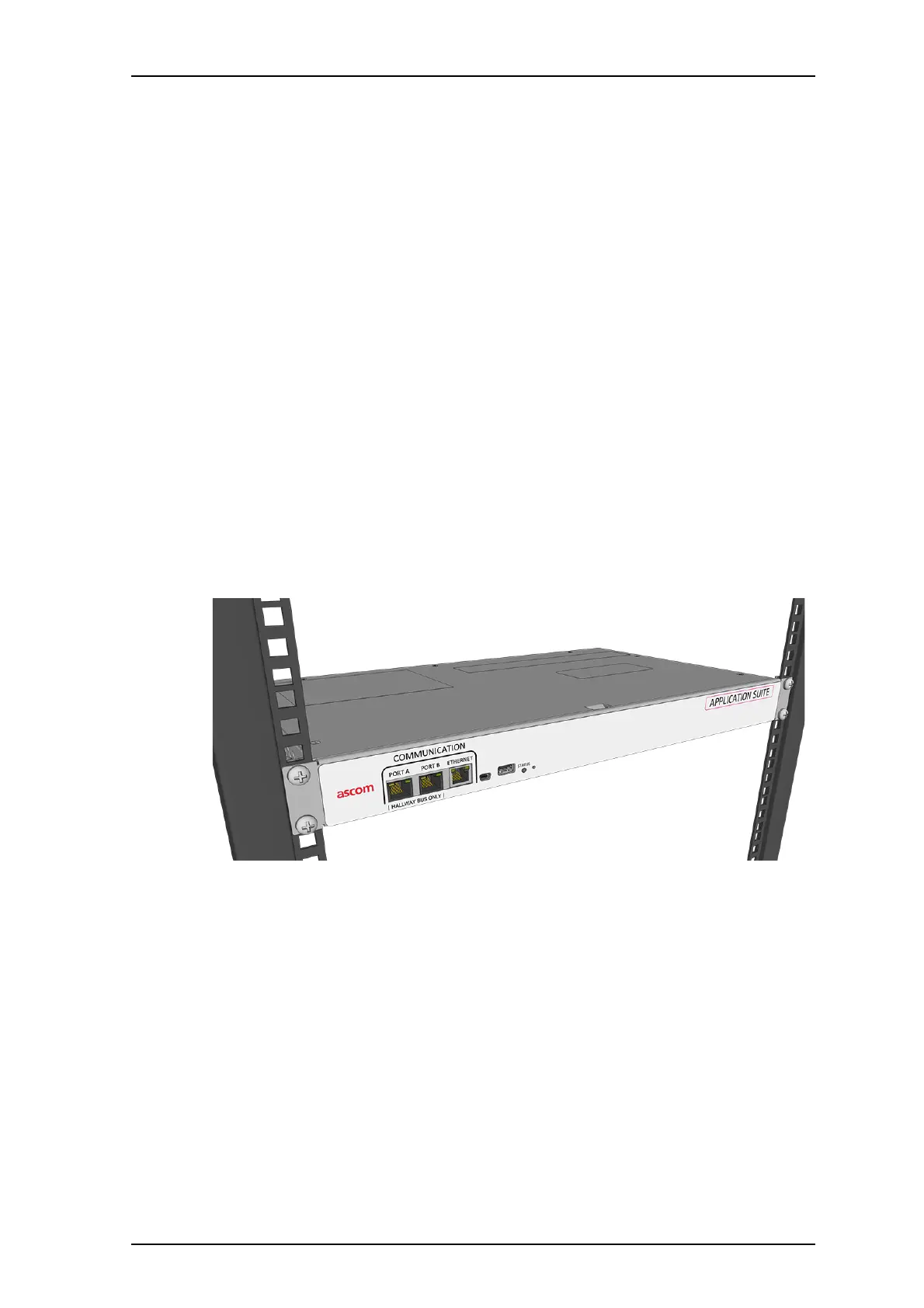

Figure 3. Mounted in a 19inch rack
