TD 92356GB
2007-03-16/ Ver. C
Installation Guide
PCR Charging Rack
4
3.1 Charging Rack Master PCR-M and Extension PCR-E
Every installation must at least consist of one Power Supply CR24 and one Charging Rack
Master PCR-M. If the ambient temperature is 25 degrees C or lower the Power Supply
CR24 can supply up to three Charging Racks (Master PCR-M and Extension PCR-E). If the
ambient temperature is higher than 25 degrees C the Power Supply CR24 can supply up
to two Charging Racks (Master PCR-M and Extension PCR-E).One Master PCR-M can
support up to 20 Extensions PCR-E.
The Charging Racks are connected (see 6 Connection of Charging Rack Master PCR-M and
Extension PCR-E on page 19) with the modular cable (delivered with the Extension PCR-E).

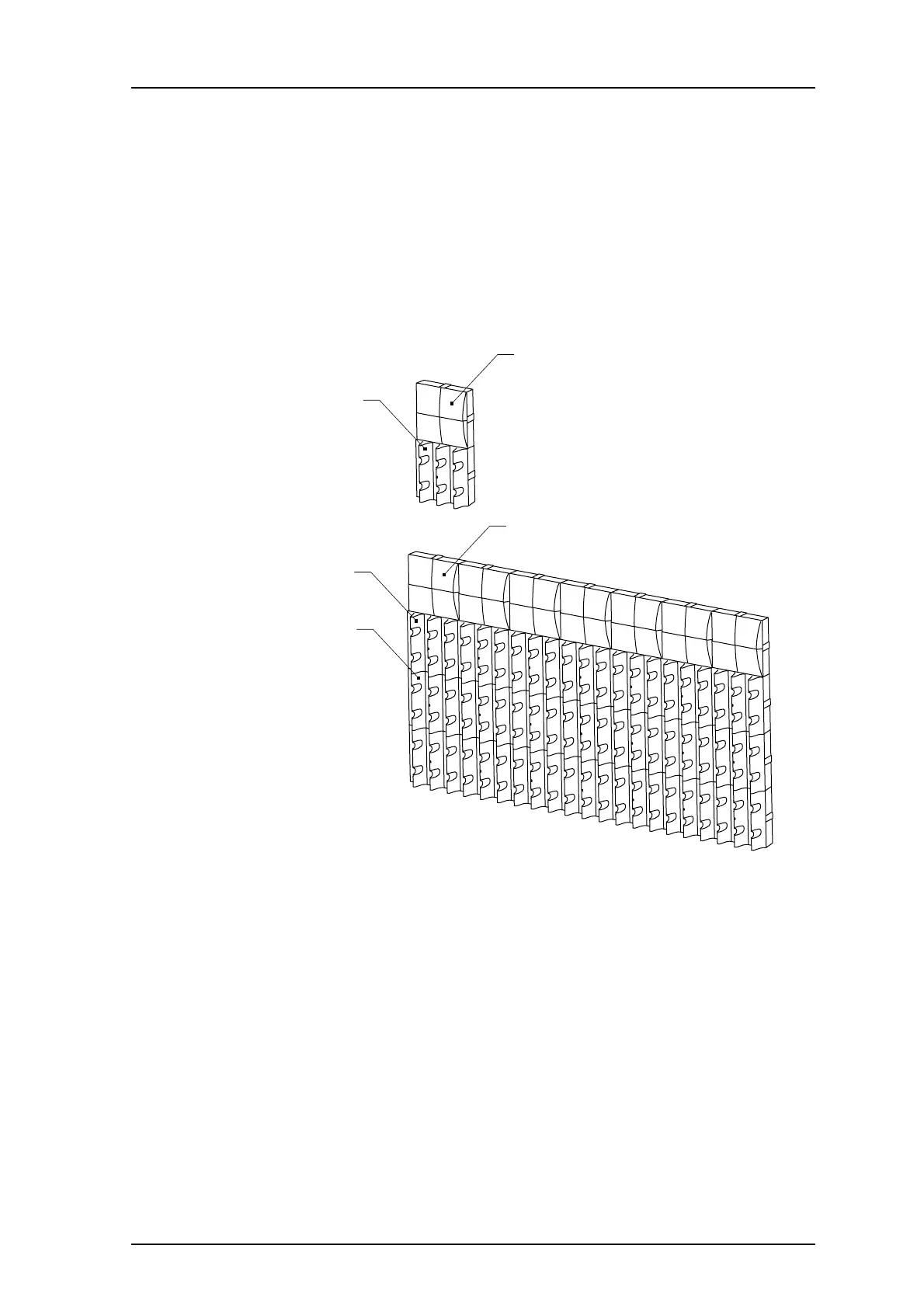

Figure 2.
022
Master PCR-M
Master PCR-M
Extension
PCR-E x 20
Power Supply CR24
Power Supply CR24 x 7
Figure 2. Example of minimum and maximum (if the ambient temperature is
25 degrees C or lower) configuration with one Master PCR-M.
