ASCOM PCR Charging Rack - Examples on How to Assemble the Modules

TD 92356GB
2007-03-16/ Ver. C
Installation Guide
PCR Charging Rack
5
3.2 Examples on how to Assemble the Modules

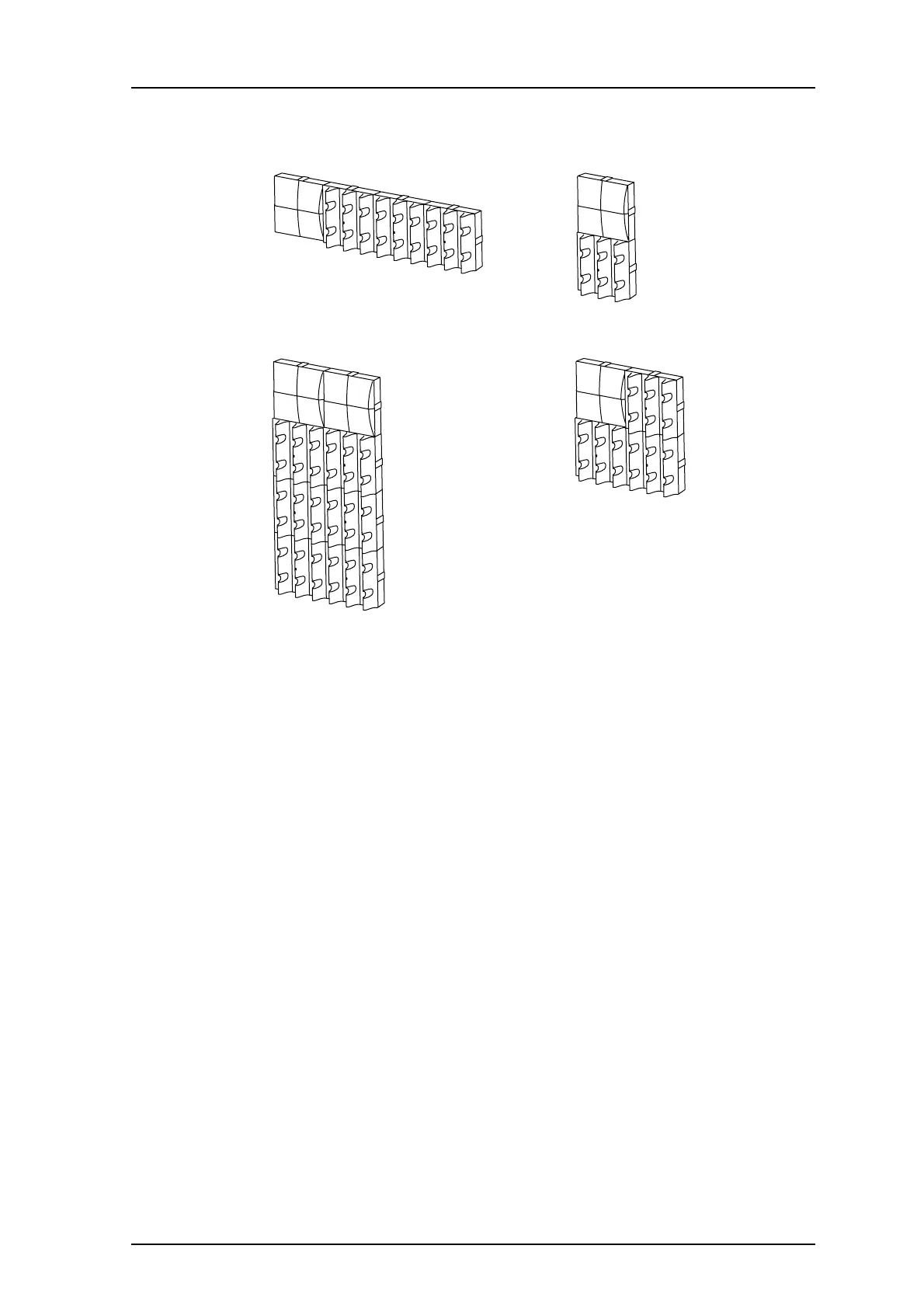

Figure 3.
003
Figure 3. Four different examples on how to assemble the PCR Charging Rack.
The Power Supply module can also be placed apart from the Charging Rack modules.
Tip: When you are planning the location of the modules, start to mount them in a height
that makes it easy to reach the portables.
