ASCOM PCR Charging Rack - Mounting Dimensions

TD 92356GB
2007-03-16/ Ver. C
Installation Guide
PCR Charging Rack
7

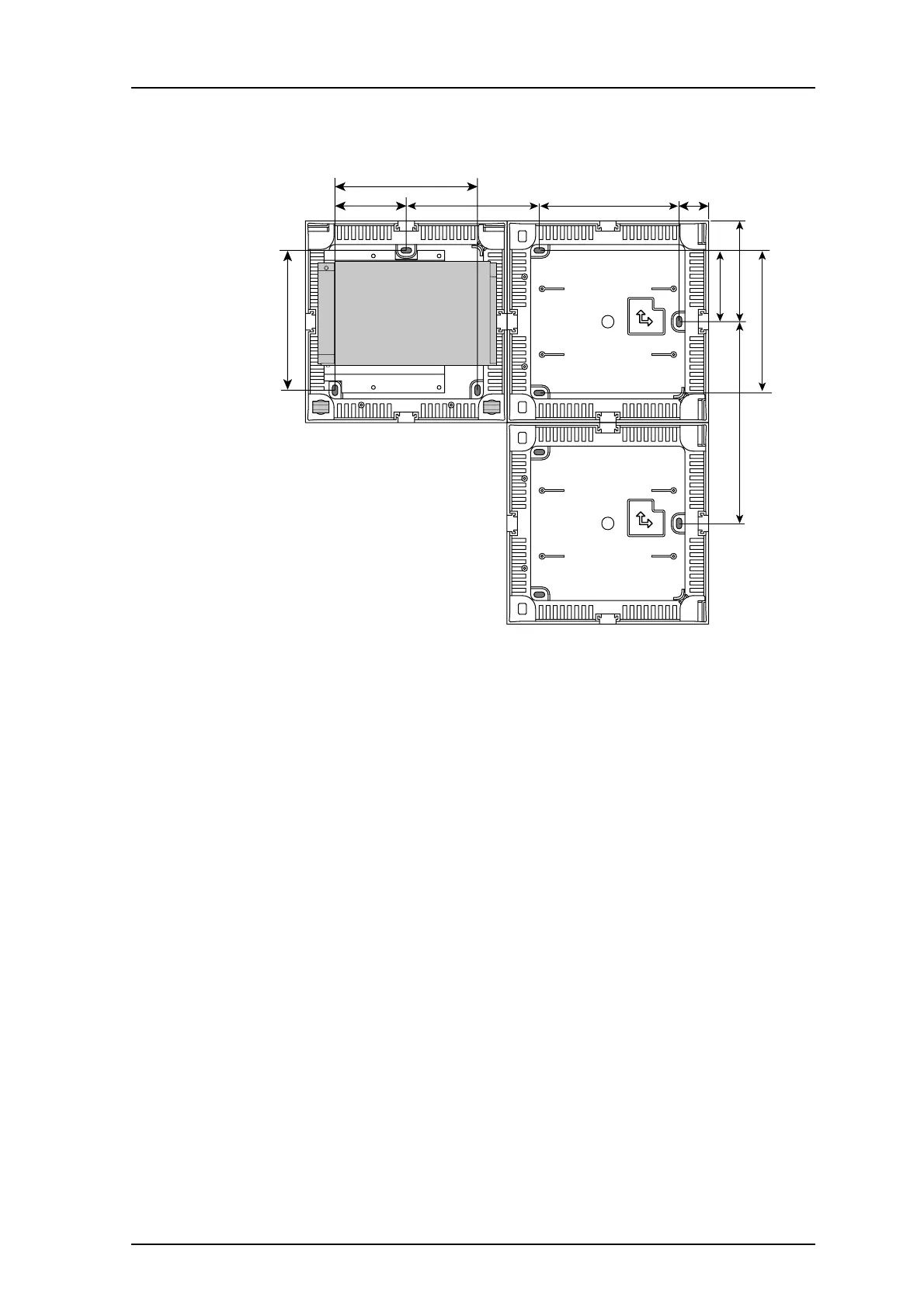

3.5 Mounting Dimensions
Figure 6.
65
65
130
130
127.5
127.5
27
92
184
004
UP
UP
PCR
OTHERS
UP
UP
PCR
OTHERS
Figure 6. Mounting dimensions in mm.
For wall fitting, preparation can be done in two ways:
• Measure and mark out the drill holes by using the dimensions in figure 6. Drill and
fasten the modules on the wall with three screws.
or
• Remove the covers, see 3.6 Removing Covers on page 8 and mount together some of
the modules, see 3.6.3 Mounting Modules Together on page 10. Hold the mounted
modules up against the wall and mark the location of the drill holes. Drill and fasten
the modules on the wall with three screws.
Note: The placing of the holes in the Power Supply module differ from the holes in the
Charging Rack module.
