ASD Document 600541 Rev
. G
33
T
erraSpec® User Manual
www
.asdi.com
Chapter 5
Batteries
5.3
Application Battery Indicator
The RS
3
and Indico appli
cations from ASD have a
Power S
tatus
. It is
located at the bottom of the
main window next to the
Connection St
atus
.The voltage level of
the sp
ectrometer will be reported
in the balloon type wind
ow
.
•1
1
-
1
2
V
olts is considered good (ful
l).
•<
1
1
V
olts issues a warning.

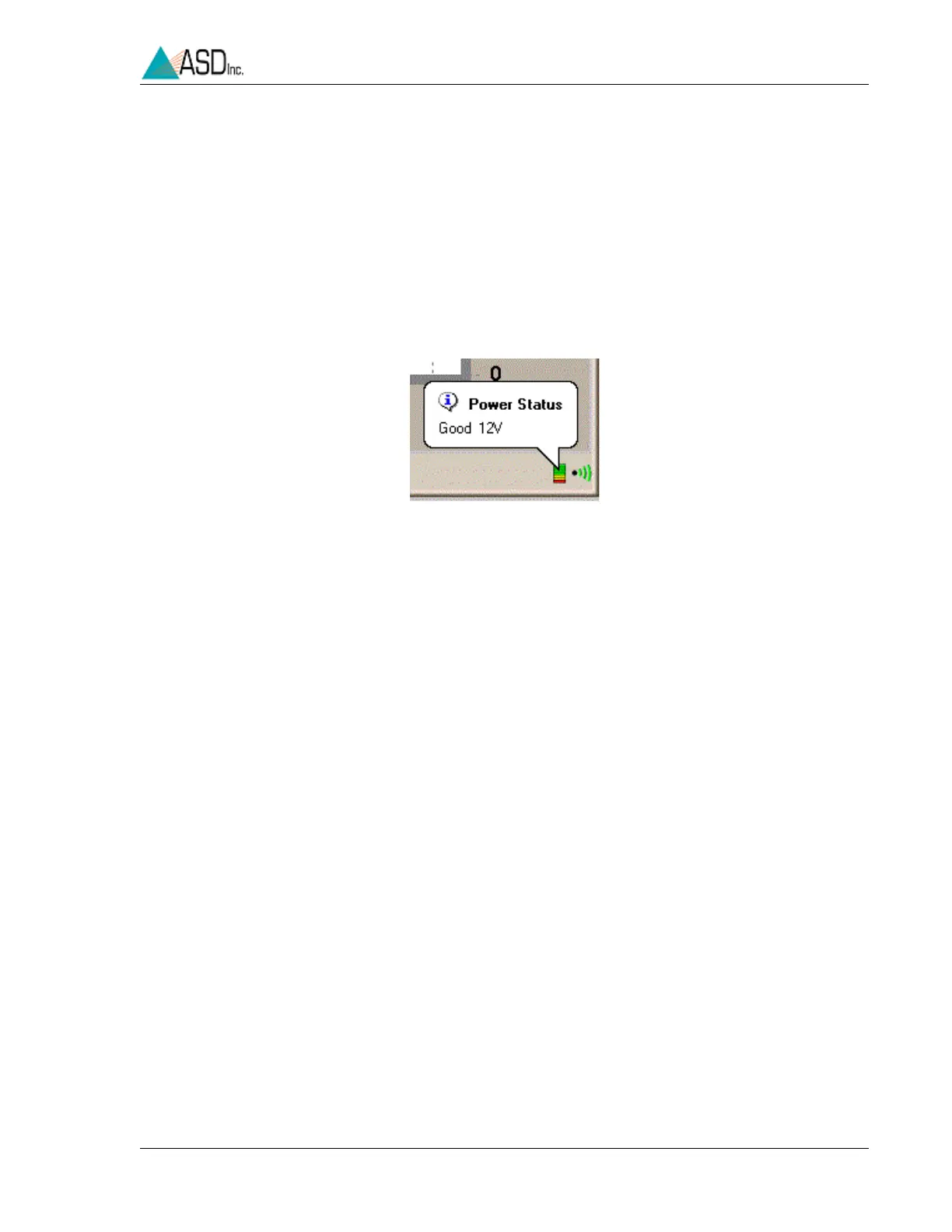

Figure 5-1 Example of a
Power S
tatus
42
