2.3 Ethernet Cables
For Information about configuration of the Ethernet card and cable please
refer to the Installation Guide. Only use shielded Ethernet cables to reduce
electromagnetic interference with the instrument.
Note the location of the computer interface connection. Figure 2-6 shows the
back panel containing the Ethernet port, which is labeled
“RJ45/ETHERNET”.
With the TerraSpec spectrometer and the instrument controller fully
powered-down and turned-off, plug the shielded cross-over Ethernet
computer cable (as shown in Figure 2-7) into the Ethernet ports of the
TerraSpec spectrometer and your instrument controller.

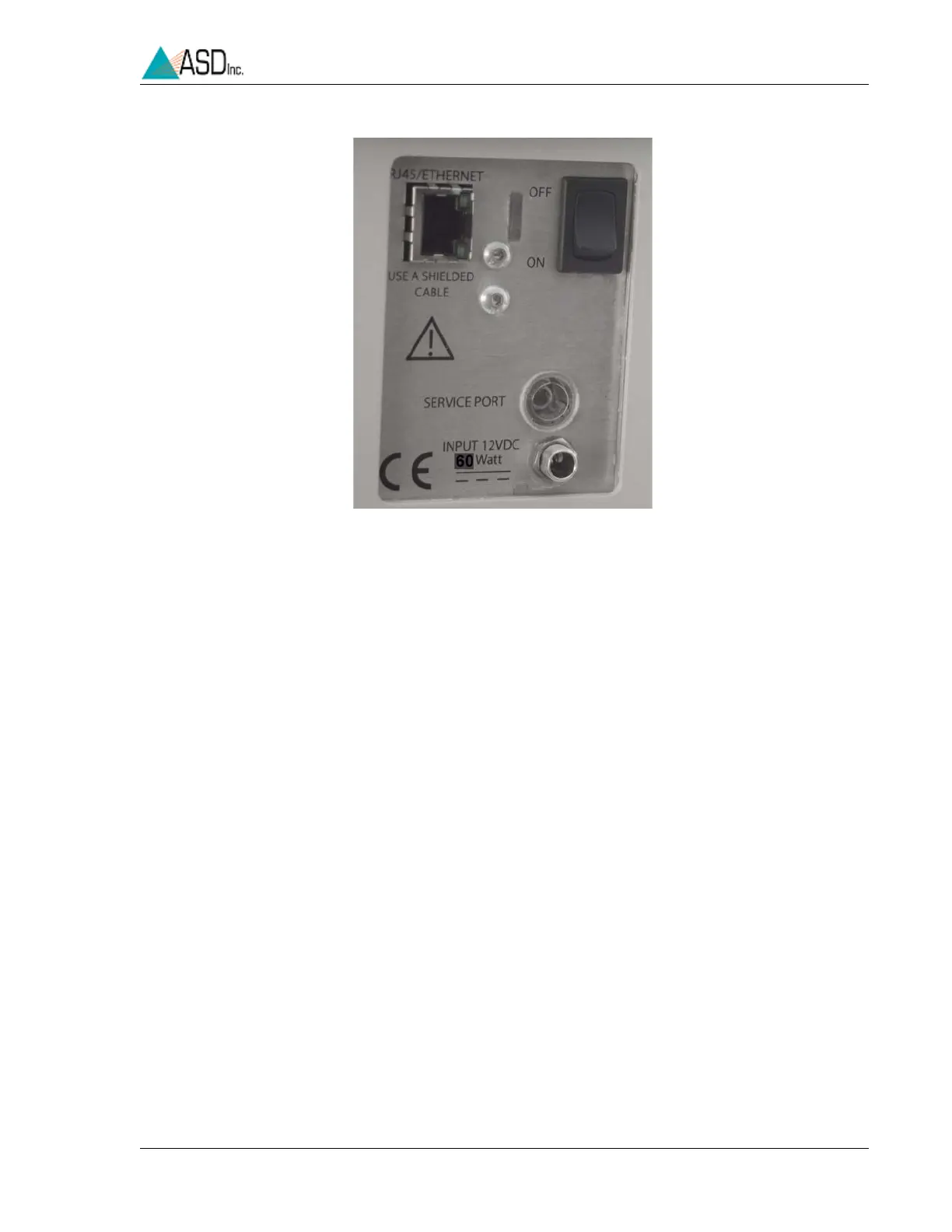

Figure 2-6 TerraSpec spectrometer back panel showing Ethernet
connection, power switch, and power input jack.
