ASD Document 600541 Rev. G 13 TerraSpec® User Manual
www.asdi.com Chapter 2 Setup
2.2 Power Supply
The TerraSpec spectrometer requires input power to be 12 VDC (60 W). It
does not contain an internal power supply to convert AC voltage to DC, nor
does it have internal batteries.
The options for providing the spectrometer with the appropriate DC voltage
are:
• An external power supply that converts 100 VAC to 240 VAC (50 Hz or
60
Hz) to 12 VDC (shown in Figure 2-3).
• An external battery pack that delivers 12 VDC.
Caution! Use only ASD approved power supplies or connectors to
power the instrument.

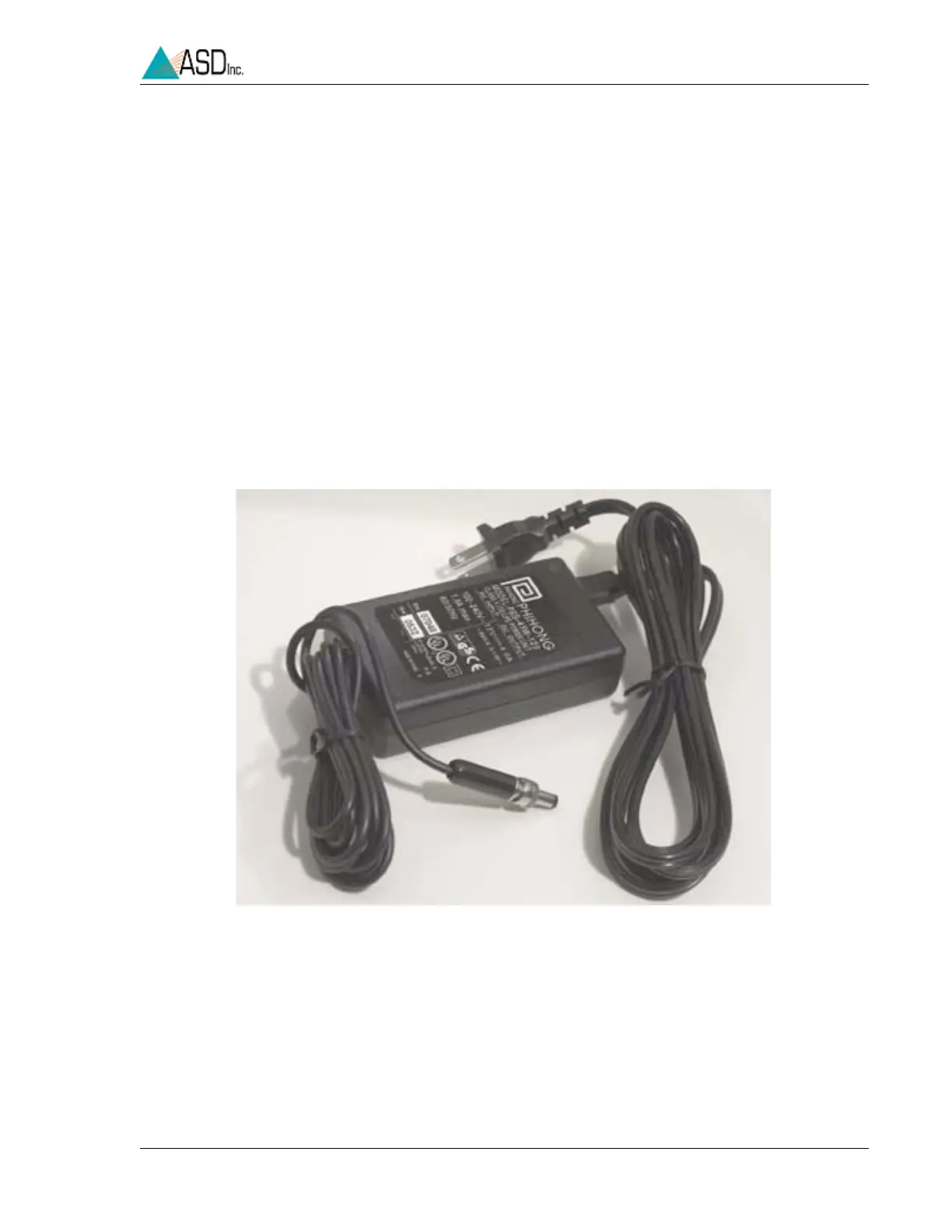

Figure 2-3 TerraSpec spectrometer power supply and cables.
