10
A MAIN SWITCH: it switches ON and OFF the machine.
C GREEN LED: when illuminated it shows that the heating power is available. This happens if the water
flow is two litres per minute, the induction coil is surrounding the crucible and the machine cover is
closed.
D ORANGE LED: when illuminated it indicates that the generator does not supply heating power because
water temperature has exceeded 60 °C or because the generator itself is faulty.
E POTENTIOMETER FOR HEATING POWER REGULATION AND CENTRIFUGE STOP: power
output is stepless. After each casting cycle bring the potentiometer to 0 to stop the centrifuge and have the
machine ready for the next cycle.
F TEMPERATURE CONTROLLER WITH DIGITAL DISPLAY (°C): it displays the actual
temperature of the metal being melted and the chosen casting temperature which is held by controlling the
power output.
H LEVER FOR RAISING AND LOWERING THE INDUCTION COIL
I LEVER FOR LOCKING INDUCTION COIL MOVEMENT
L OPTICAL SENSOR

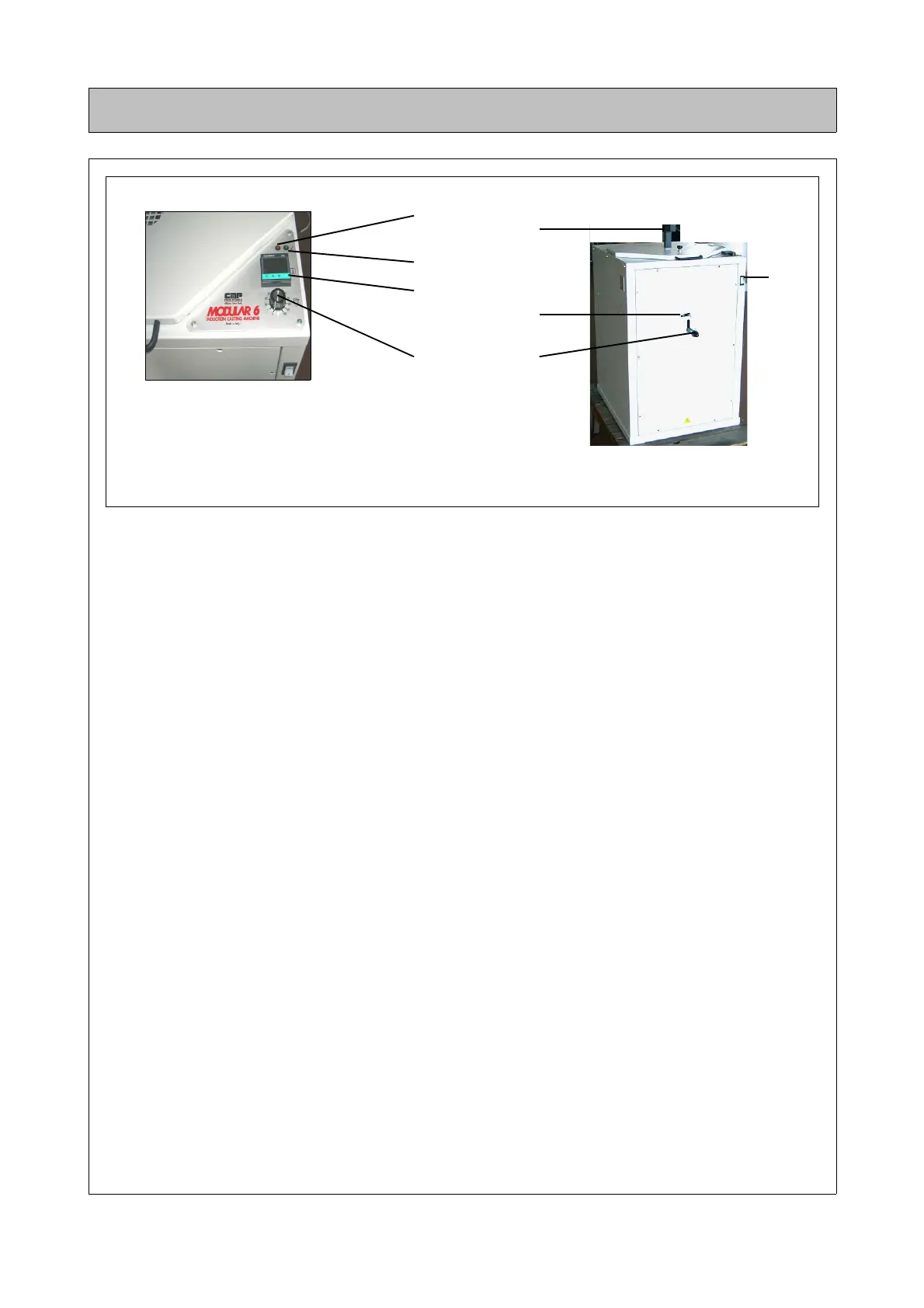

PICTURE 3 PICTURE 4
CONTROL PANEL
D
C
F
E
A
L
I
H
MODULAR 6
