Ubiquity Router family - User’s guide
Table 10
COM1 – DB15M Serial
Table 11
Digital In/Out

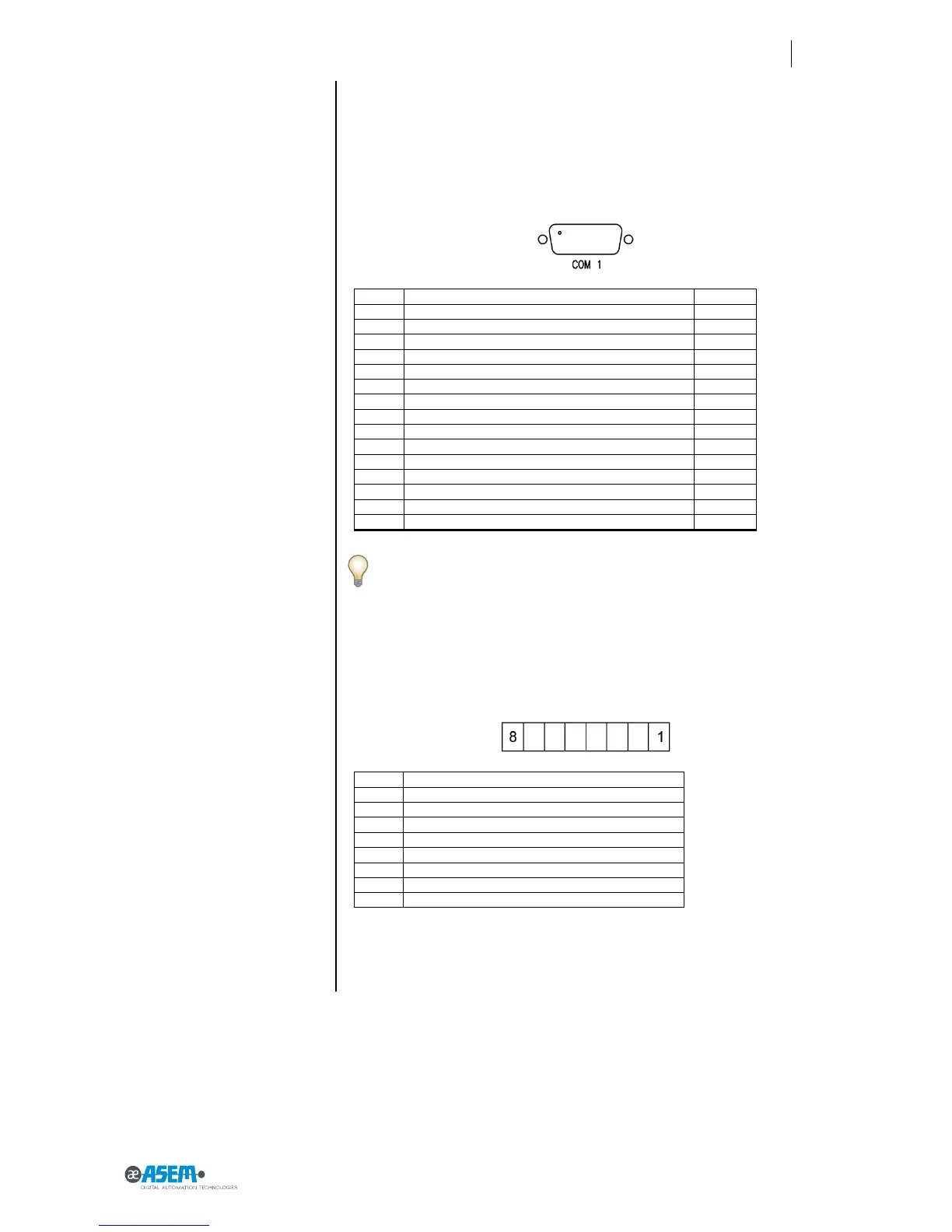

6.7 Ports PINOUT
6.7.1 COM1 – DB15M Serial
PIN
Signal
I/O
1
Isolated +5 VDC
OUT
2
Transmit Data (RS-232)
OUT
3
Receive Data (RS-232)
IN
4
Request To Send
OUT
5
Clear To Send
IN
6
Data Set Ready
IN
7
Isolated Ground

8
Data Terminal Ready
OUT
9
Carrier Detect
IN
10
Transmit Data +/Receive Data + (RS-485/RS-422)
I/O
11
Transmit Data -/Receive Data - (RS-485/RS-422)
I/O
12
Ring Indication (RS-232)
IN
13
Receive Data + (RS-422)
IN
14
Receive Data - (RS-422)
IN
15
N.C.

Any polarization or termination resistor connected to RS422/485 channel,
if required, it has to be provided by the user.
6.7.2 Digital In/Out
PIN
Signal
1
IN 0 +
2
IN 0 -
3
IN 1 +
4
IN 1 -
5
OUT 0 - A
6
OUT 0 - B
7
OUT 1 - A
8
OUT 1 - B
