Ashford DOUBLE DRIVE - Wheel and Crankshaft Mounting

9

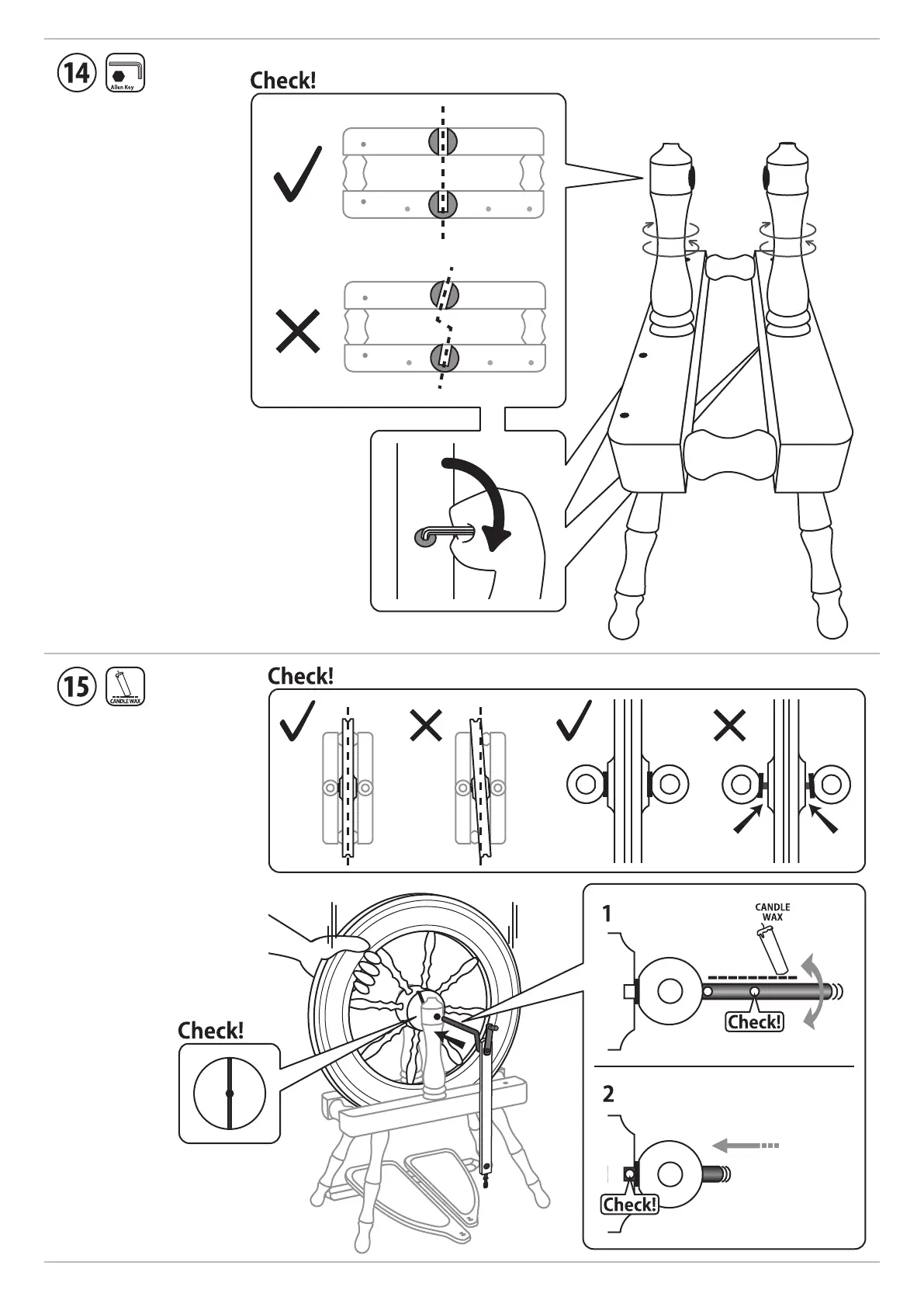

Check the alignment of
the holes for the crank.
Tighten the bolts from
underneath.
Place the wheel in posi-
tion and insert the crank
shaft. Align the hole in
the crank shaft with the
groove of the hub. Check
the wheel is parallel in
the centre of the base
and the wheel supports
are tight against the hub.
If not, loosen the bolts,
adjust the wheel sup-
ports and retighten.
