-20-

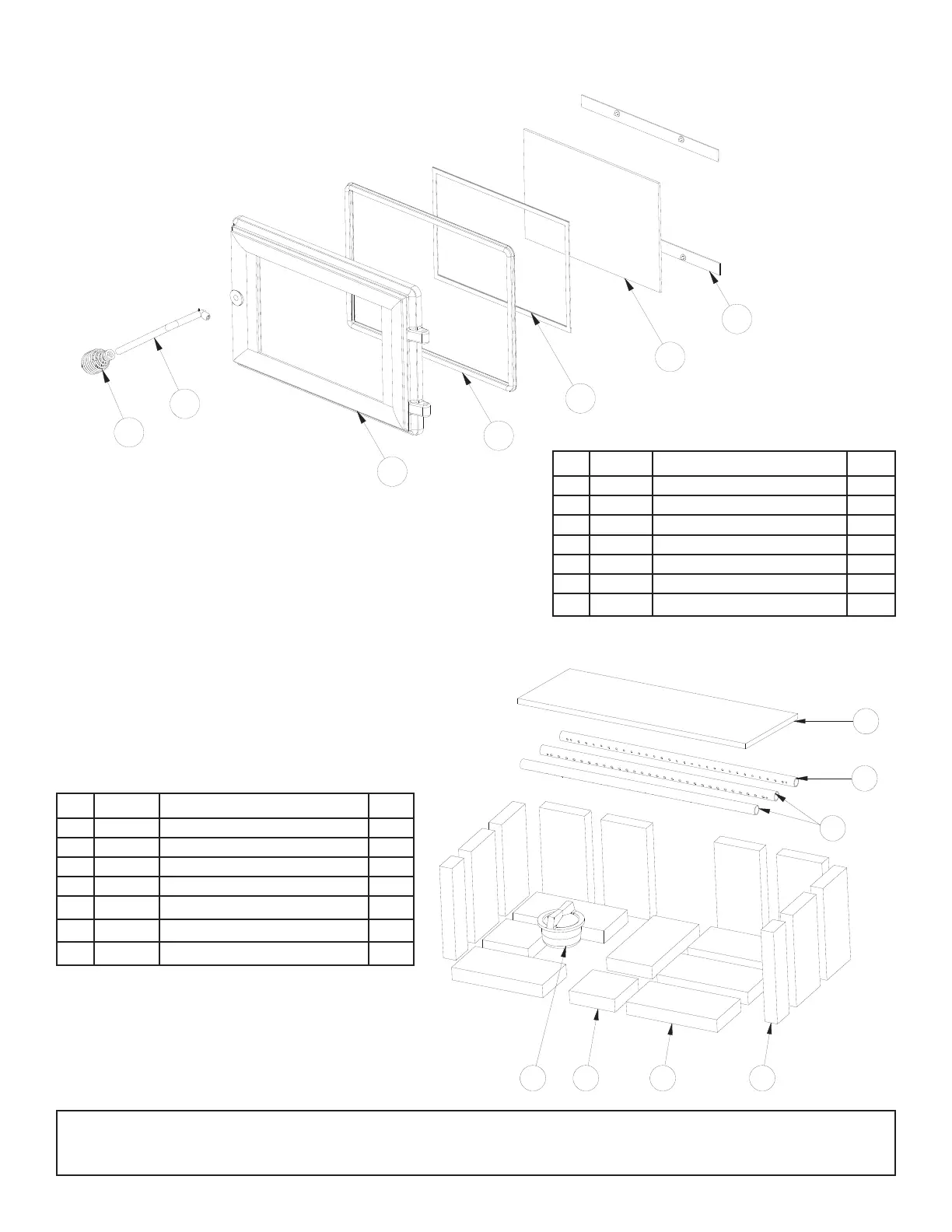

REPAIR PARTS
Key Part No. Description Qty.
1 25465 Retainer, Bottom Glass 2
2 891813 Door Glass (40564) 1
3 88174 Gasket-Flat, Glass Retainer 4ft
4 88057 1/2 Rope Gasket 5ft
5 40639 Door,Rectangular - Large 1
6 892228 7” Handle 1
7 891135 Handle, Spring (Lg-Nickel) 1
2
3
4
5
6
7
1
Key Part No. Description Qty.
1 891414 Half Firebrick 2
2 89066 Firebrick (4-1/2 X 9) 14
3 24103 Firebrick, Half (4-1/2 X 4-1/2) 2
4 40561 Ash Plug 1
5 86643 Tube (Ø5/32) , Secondary Air 1
6 86645 Tube (Ø7/32), Secondary Air 2
7 88146 Board, Ceramic Fiber 1
4
3 3
1
6
7
5
In order to maintain warranty, components must be replaced using original manufacturers parts purchased
through your dealer or directly from the appliance manufacturer.
Use of third party components will void the warranty.
