Ashley AC2000 - Repair Parts

-19-

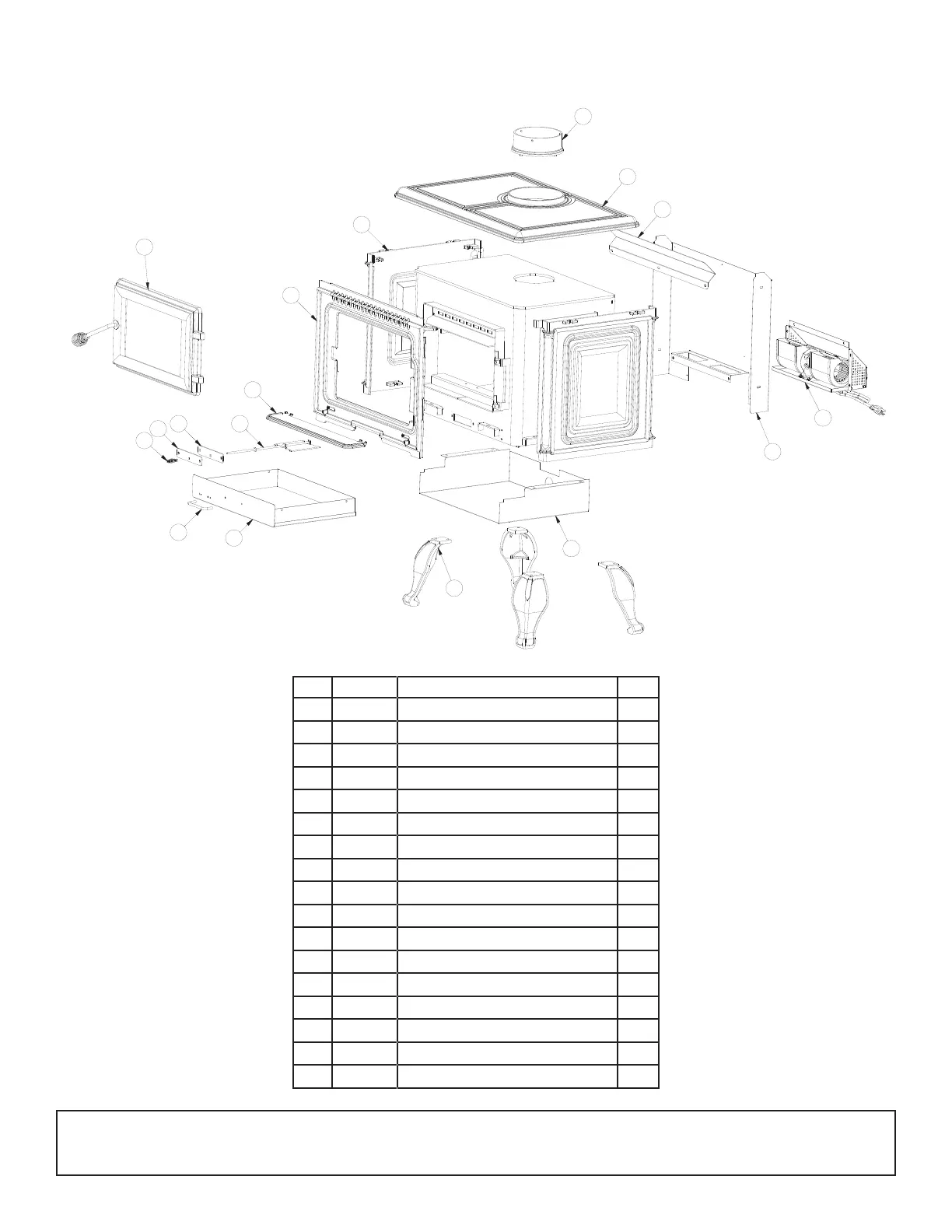

REPAIR PARTS
1
2
3
4
5
6
9
7
8
16
15
14
13
12
11
10
17
Key Part No. Description Qty.
1 610061 Assy., Door Large Rect. 1
2 891331 Spring Handle - Brushed Nickel 1
3 26333 Cover Plate, Damper 1
4 88189 Gasket, Damper 1
5 69738 Weld., Damper Slide 1
6 40590 Hearth 1
7 891137 Handle, Brushed Nickel 1
8 69767 Ash Pan Weldment 1
9 40589 Front 1
10 40588 Side 2
11 40292A 6” Flue Collar 1
12 40587 Top 1
13 26934 Air Deector 1
14 891841 Assembly, AFS Blower 1
15 26335 Heat Shield 1
16 69768 Weldment, Ash Pan Housing 1
17 40566 Leg, Cast Iron 4
In order to maintain warranty, components must be replaced using original manufacturers parts purchased
through your dealer or directly from the appliance manufacturer.
Use of third party components will void the warranty.
