-6-
FLOOR PROTECTOR
Your wood stove should be placed on a 1 inch, non-combustible surface with a k factor of 0.84. For multiple
layers, add R-values of each layer to determine the overall R-value. The R value for the required board is 1.03. If
there is a horizontal section of chimney connector, the oor protector should go under it and 2 inches beyond
each side To calculate R-Values for alternative methods, see ALTERNATE FLOOR PROTECTOR CALCULATIONS
section in this manual.

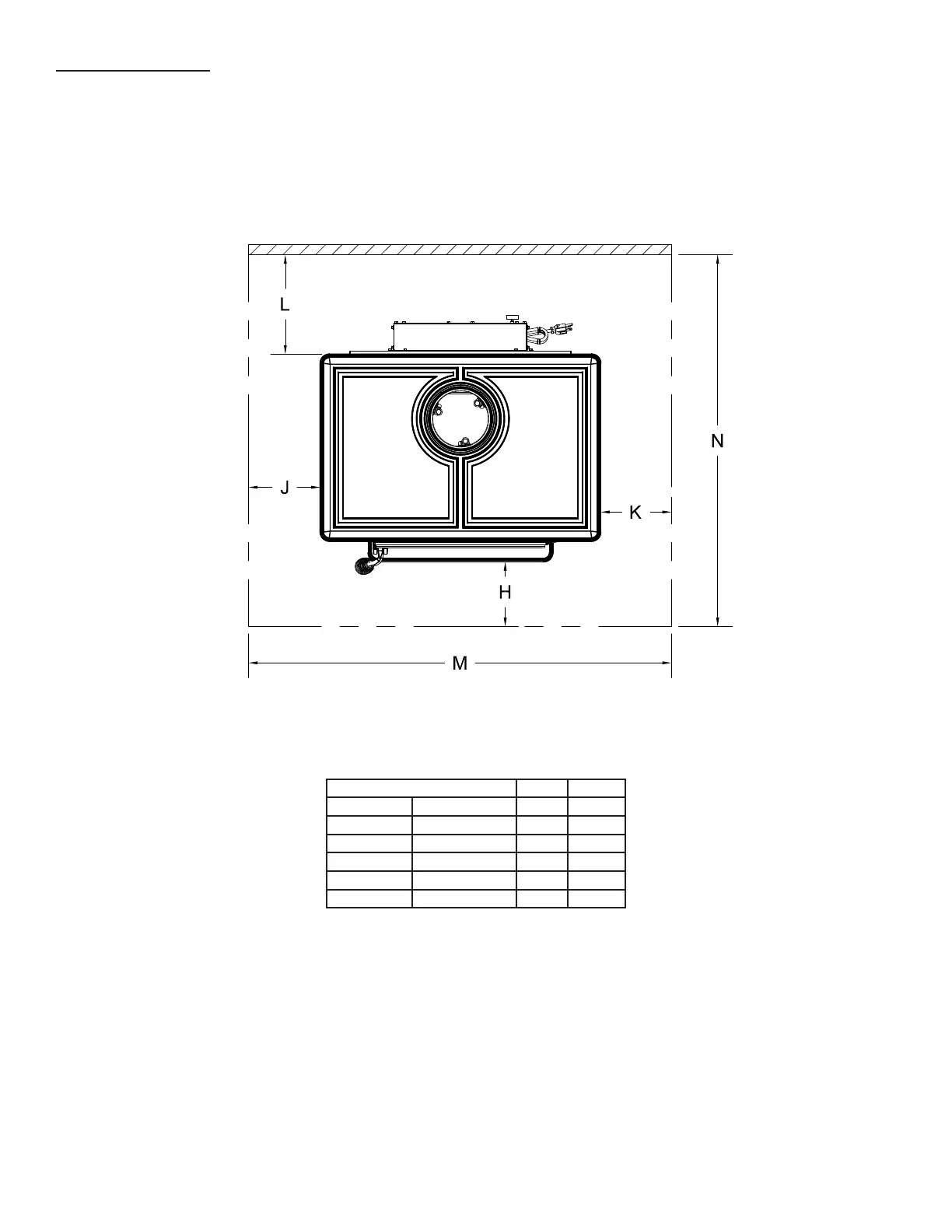

The oor protector should exceed the stove as follows:
Dimension Inch mm
H * Front 16 635
J** Left 6 153
K** Right 6 153
L** Back 1 25
M Total Width 46 1169
N Total Length 53.5 1359
* Canadian installations require 18” (457mm)
** Canadian installations require 8” (203mm)
