Remember : Disconnect the power cord before making any change to the installation or wiring.
3 General Information

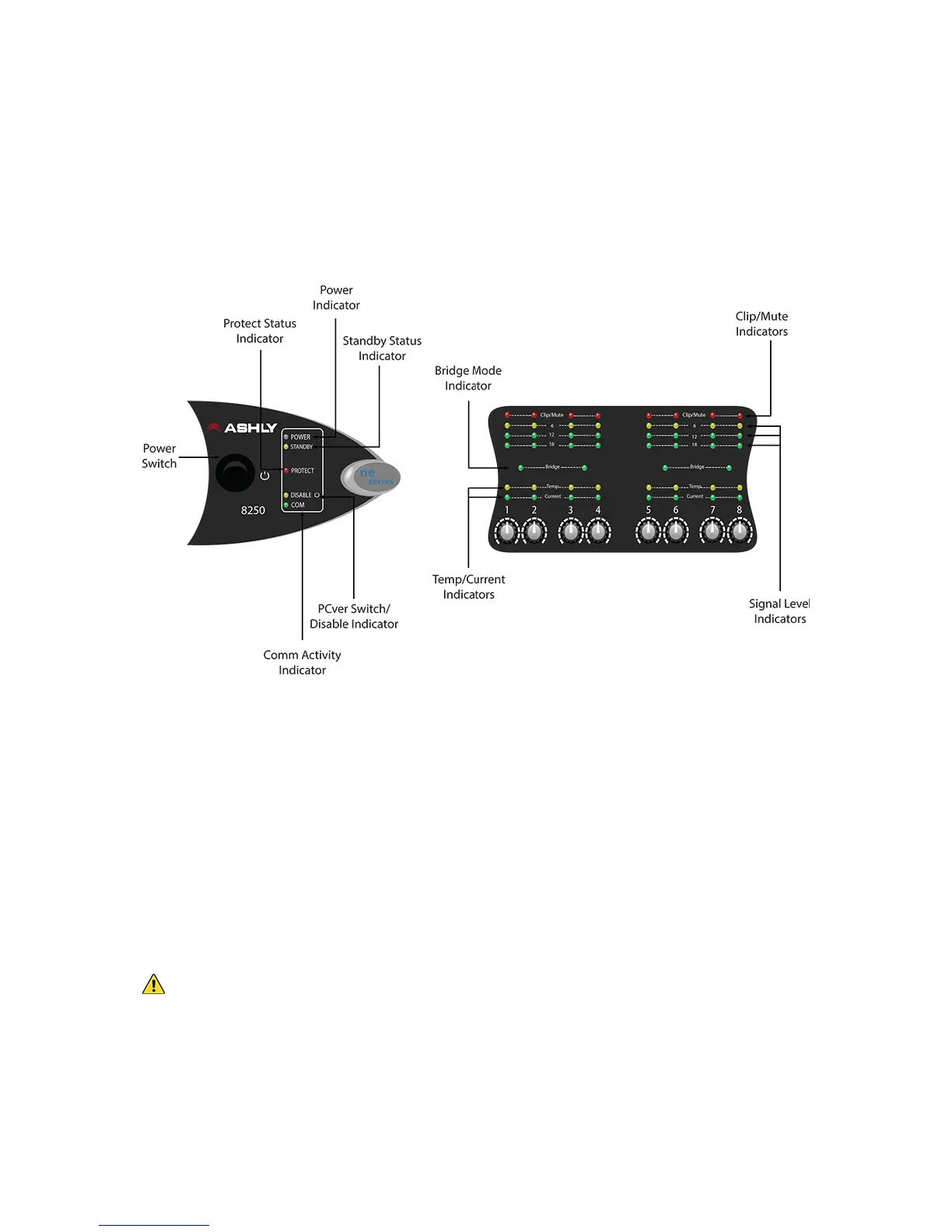

3.1 Front Indication Lights
3.2 Rear Panel Connections
• AC Power Cord Connector- Standard IEC type 320 inlet, 120V models are 15-amp, 220–240
models are 10-amp. Voltage is indicated above IEC inlet.
• Output Connector- for every two channels - On Shore Technologies inc. OSTTJ040150
• Primary and Secondary Ethernet Connection- connects to ASTi’s ACENet which provides
low latency, network-based audio architecture for ASTi’s communications and sound modeling
equipment and software. For more information on this architecture and scalable distribution
network, please see the Telestra 4 ACENet User Guide (DOC–01-Tel4-AN-UG–1).
• Mode Switch- for every two channels, this switch selects the amplifiers mode- bridge or normal.
In most cases, this should be set to normal.
Warning: Ensure that the amplifier is powered off before changing the mode setting.
