Ashton MXL12FX - Stereo Channels 5-12

PAGE 9
Mono CHAnneLs 1-4

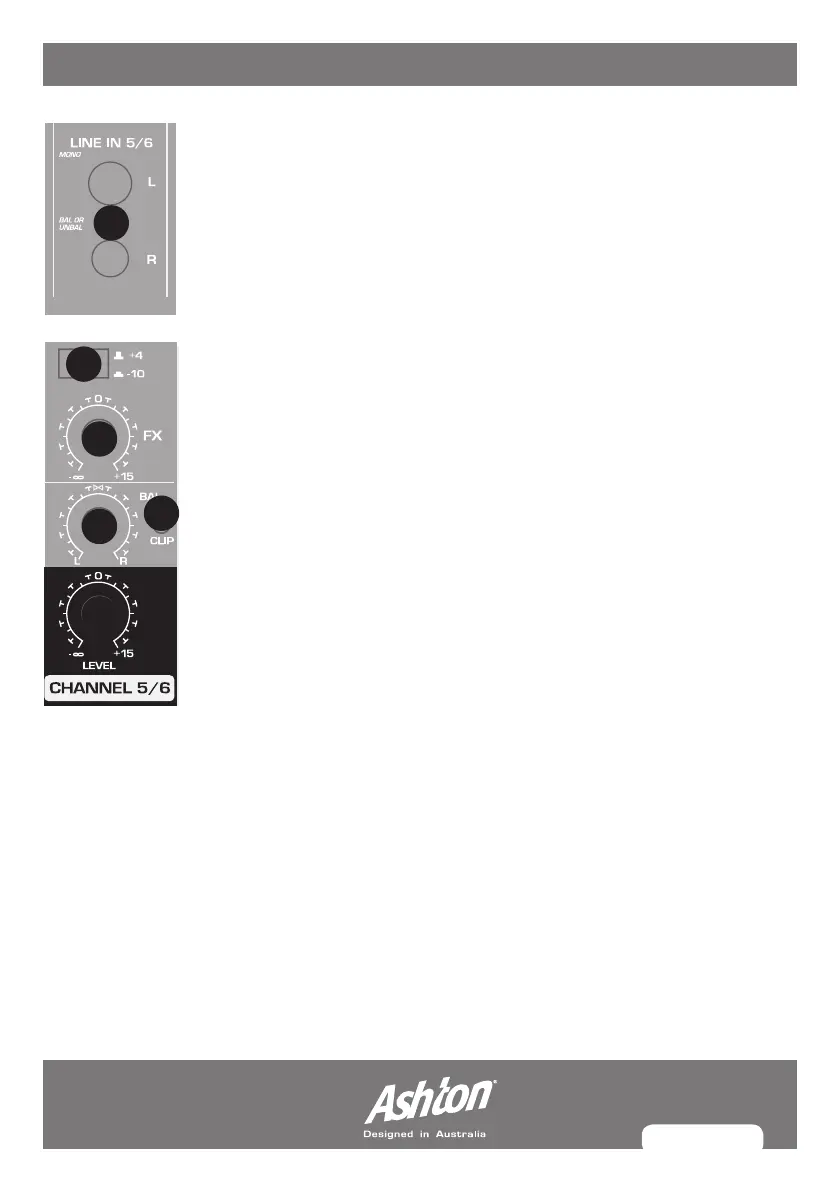

steReo CHAnneLs 5-12
1. LINE IN: Balancedlineinputon2x¼"connectors.Unbalanceddevices
(monojacks)canalsobeconnectedtotheseinputs.
2. INPUT PAD:Usethistoadjustbetween+4db/-10dBinputgain,for
use with various instruments.
3. FX: This adjusts the fx level that is sent to the internal fx and also the
“send fx” jack.
4. PAN: This determines the position of channel signal within the stereo
image and how it is distributed to the left and right speakers.
5. CLIP:ThisLEDilluminateswhentheinputsignalistoohighwhichcan
causedistortion.Usetrimcontroltoreducethelevel.
6. LEVEL: This controls the volume level of the inputted device in the
overall output of the mixer.
1
2
3
4
5
6
