PAGE 9
SETTING UP THE
ASSEMBLY

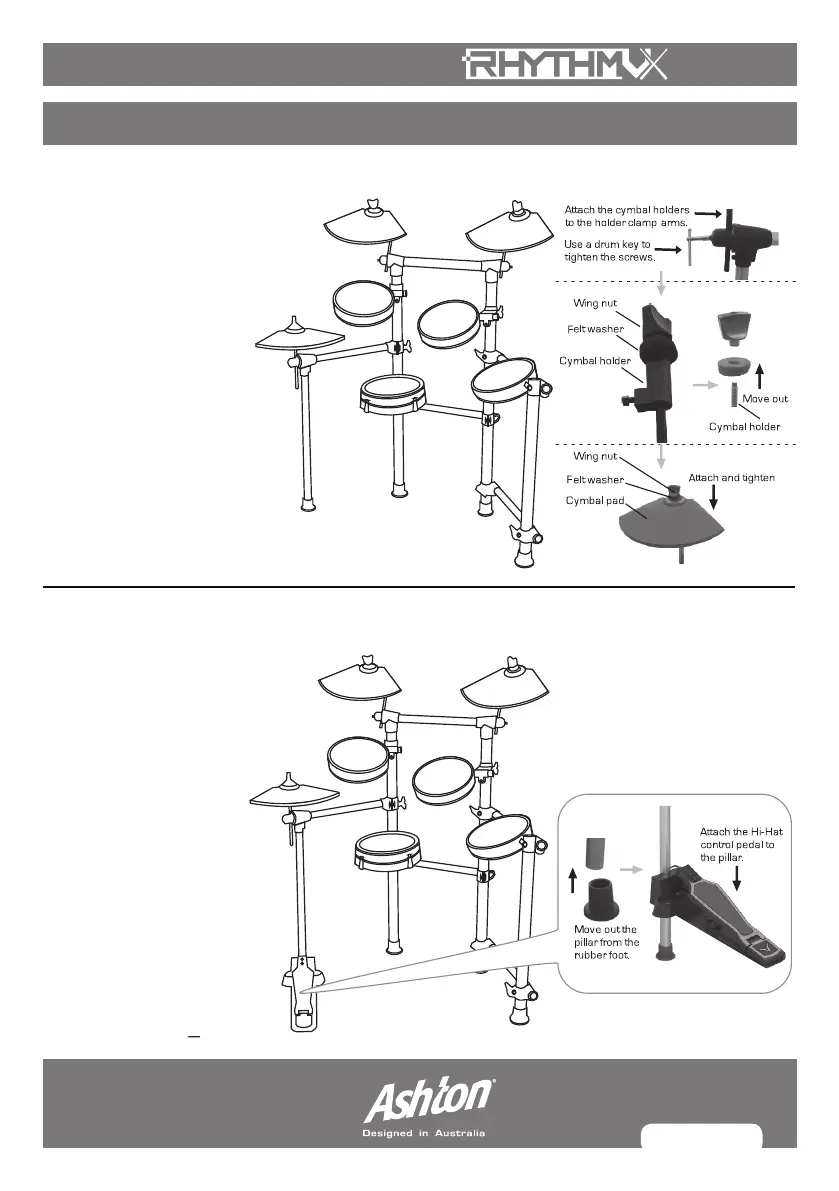

5. ATTACHING THE CYMBAL PADS:
i) Attach the cymbal holders to
the holder clamps on the arms.
ii) Use a drum key to tighten the
screws on the holder clamps.
iii) Remove the wing nut
and the felt washer off
each cymbal holder.
iv) Attach the cymbal pads to
the cymbal holders.
v) Attach the felt washer and
wing nut, tighten the wing
nut of each cymbal.
6. ATTACHING THE HI-HAT CONTROL PEDAL:
i) Remove the pillar from the
rubber foot.
ii) Attach the hi-hat controller
pedal to the pillar.
