10
The machine can be installed beneath a
worktop with a height of 850–900 mm.
There must be a gap of about 5 mm all
round the machine, including between
the rear edge of the machine top panel
and the wall behind.
Positioning the machine

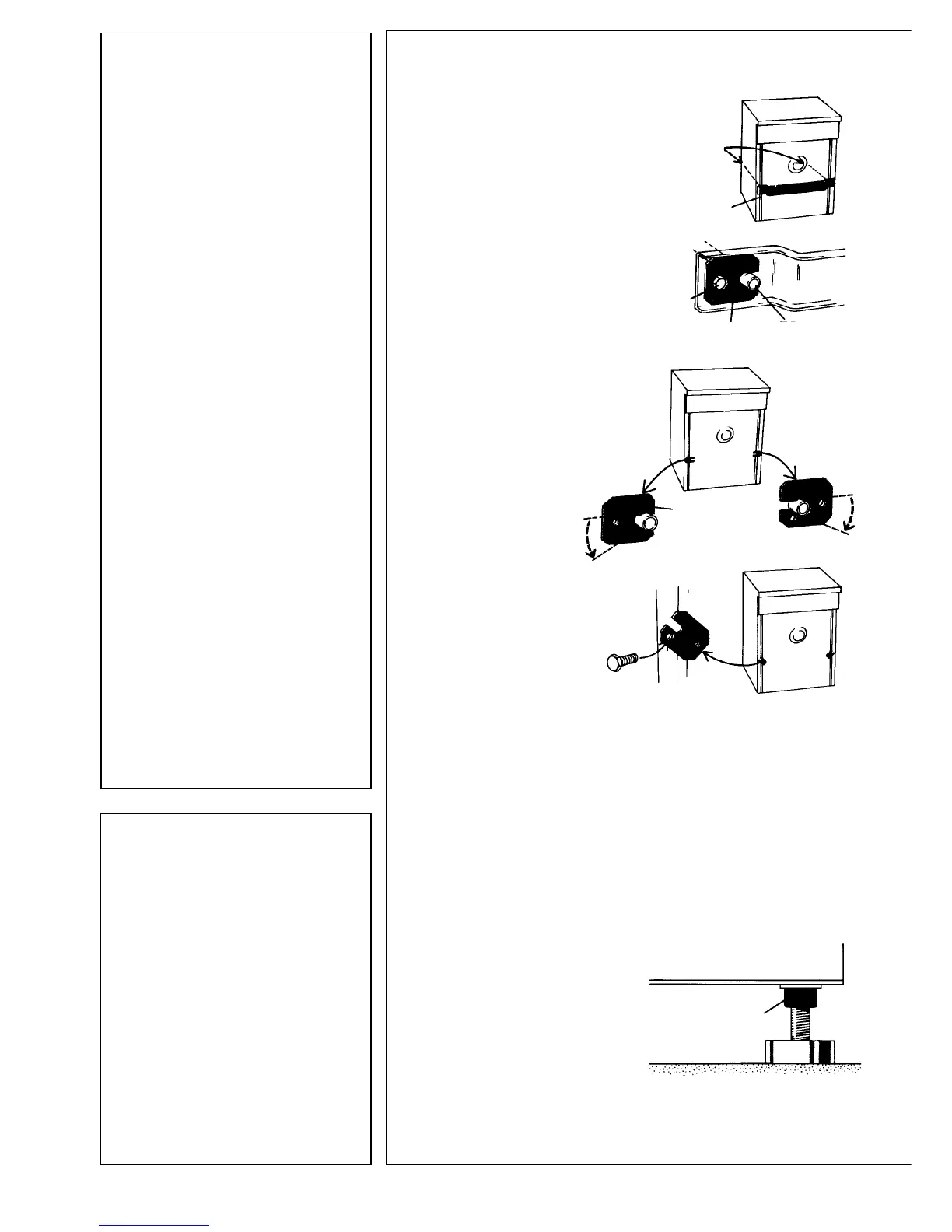

Removing the shipping brace
The shipping brace consists of two tubes
which prevent the drum from moving
around inside the machine during
transport. The tubes are secured to a
cross beam at the back of the machine.
Remove the shipping brace as follows:
Technical data
1. Remove the bolts and special
washers which retain the beam,
and remove the beam.
2. Replace the washers on the
flattened part of the tubes.
Use them as tools to turn the
tubes through about 45°, as
shown in the drawing, and
pull out the tubes.
3. Turn the washers
so that they cover
the holes where
the tubes were
fitted and replace
the bolts.
Save the tubes and cross
beam, which will be needed
if the machine has to be
transported elsewhere. Fit
them in the reverse order to
that described above.
Adjusting the feet
It is important that the machine
does not move around when it is
spinning. This means that it must
be standing firmly and level on the
floor. The four feet are individually
adjustable. Set them carefully so
that the machine is standing level,
and tighten the locknuts securely.
Accessories
The machine is supplied with:
• Operating instructions and
installation instructions.
• Guarantee card.
• Type-approved inlet hoses for
connection to water supply.
Optional extras::
• Decor frames
• Work top
• Plinth
• Edging frame by stacked
machines
• Frame set with pull-out shelf by
stacked machines
Installation
Cross beam
Washer Tube
Washer
Lock nut
Two tubes
inside
the machine
Dimensions, mm 820 x 595 x 595
Weight 12605 76 kg
Washing capacity 4.5 kg of dry fabrics
Drum volume 43 litres
Spin speed 700/1500 r/min
Rated load 2060 W
Supply voltage 240 V, 50 Hz
single-phase
Heater rating 1960 W
Material of drum Stainless steel
and barrel
Material of Stove-enamelled
outer casing hot-dip-galvanised
steel sheet
Mounting Stationary: four
adjustable rubber-
covered feet
Water supply 1.5 m pex hose
hose
Supply pressure 0.1–1 MPa
(10–100 N/cm
2
,
1–10 kp/cm
2
,
15–142 PSI)
Outlet 1.7 m of poly-
propene hose,
20 mm internal
diameter
