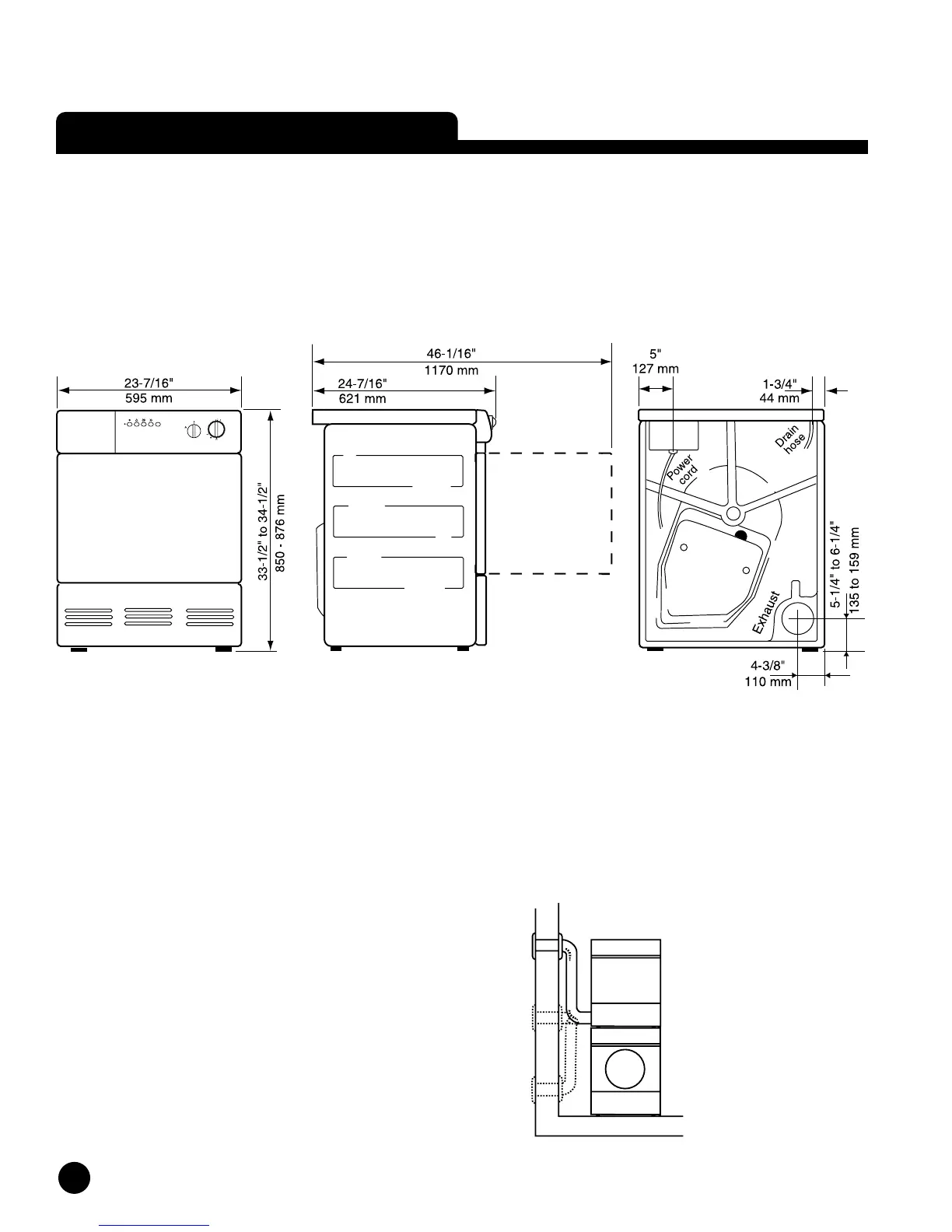

UNIT DIMENSIONS
US Metric
Height 33-1/2"–34-1/2 850–876 mm
Width 23-7/16" 595 mm
Depth 24-7/16" 621 mm
Weight 86 lb 39 kg
MODEL T701 VENTED DRYER
TECHNICAL DATA
Supply voltage Single-phase 230 V, 60 Hz
Heating element 2500 W
Internal Fuse 15 A
NOTE: When on a separate outlet, use 220 V, 15 Amp
single-phase circuit. When an ASKO washer is
connected, use 220 V, 30 Amp single-phase circuit.
The door hinges on ASKO dryers are shipped left-hinged, but they
are reversible. See the Dryer Use and Care Guide for more
information.
When placing the dryer next to a wall or cabinet, be sure to leave
1/2" (12 mm) of space between the dryer and the wall or cabinet.
See page 23 for stacked washer/dryer dimensions.
See pages 28–30 for cutout dimensions for closet and under-
cabinet installations.
Venting Requirements
WARNING! To reduce the risk of fire, vented dryers
must be exhausted OUTDOORS or the equivalent.
Never cover the end of the dryer stub or vent hose with
anything to catch lint, except for a UL-approved vent
basket.
The hose should be run with as few bends as possible to the point
of discharge. If necessary, it can be extended to a maximum of 20
feet (610 mm) of 4 in (10 cm) diameter ridged pipe. Make any
bends as gentle as possible. A maximum of four 90˚ bends may
Subtract 4 feet (660 mm)
for every 90˚ elbow.
be fitted in the hose, otherwise the performance of the dryer will
be impeded. Subtract 4 feet of hose for every 90˚ elbow.
If the hose is taken to a wall outlet, a ventilation grill should be
fitted to prevent reverse flow of cold air. Fit the ventilation grill to
the outside or inside of the wall.
This appliance should not be exhausted into a chimney, a wall, a
ceiling, or a concealed space of a building. Only a metal ventilation
grill should be used.
