ASKO DRYER

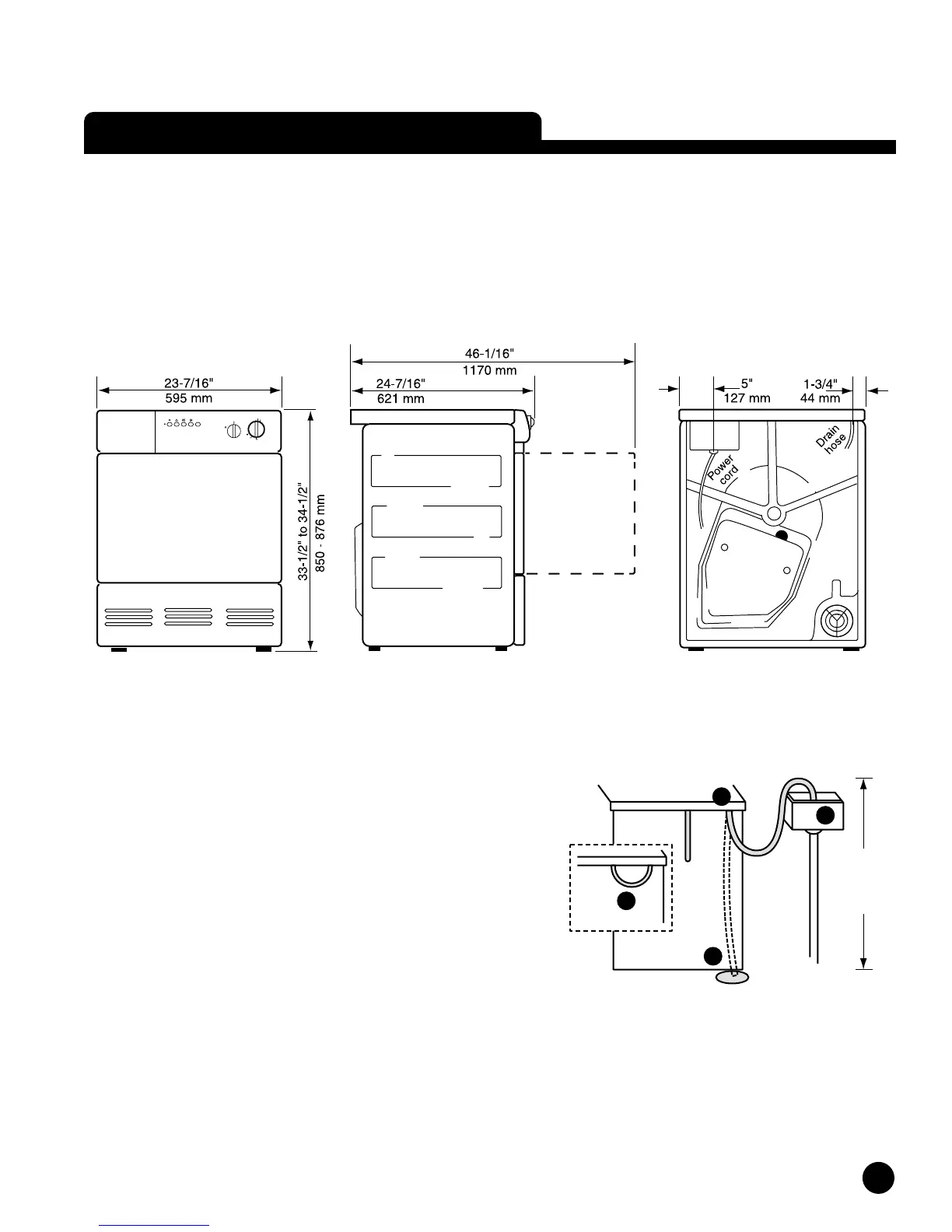

UNIT DIMENSIONS
US Metric
Height 33-1/2"–34-1/2 850–876 mm
Width 23-7/16" 595 mm
Depth 24-7/16" 621 mm
Weight 103 lb 47 kg
MODEL T721 CONDENSER DRYER
TECHNICAL DATA
Supply voltage Single-phase 230 V, 60 Hz
Heating element 2500 W
Internal Fuse 15 A
NOTE: When on a separate outlet, use 220 V, 15 Amp
single-phase circuit. When an ASKO washer is
connected, use 220 V, 30 Amp single-phase circuit.
The door hinges on ASKO dryers are shipped left-hinged, but they
are reversible. See the Dryer Use and Care Guide for more
information.
When placing the dryer next to a wall or cabinet, be sure to leave
1/2" (12 mm) of space between the dryer and the wall or cabinet.
See page 24 for stacked washer/dryer dimensions.
See pages 28–30 for cutout dimensions for closet and under-
cabinet installations.
Condensation Drain Requirements
If possible, you should install the dryer so the condensed water
will continuously flow into a drain or sink. To do this, follow the
instructions below:
1. Disconnect the short hose (1) from the blue connection.
(It’s okay to let the hose hang down.)
2. Connect the rubber hose supplied with the dryer to the blue
nipple (2).
3. Run the hose to a drain or sink, as illustrated.
NOTE: The drain hose must not be more than 40" above the floor
or the bottom of the unit.
Back of dryer
1
3
3
40"
(1016 mm)
maximum
height
2
