Asko D5893 - Fitting the Dishwasher in Place

35
Suggestions on positioning the dishwasher
The dishwasher can be built in, fully free-
standing or semi-freestanding.
CAUTION!
Connection to electricity, water and drain-
age must be carried out by a suitably quali-
fied person.
A. Built-in
The dishwasher can be built in under a work-
top with a working height of 860 - 910 mm.
The width measurement must be at least
600 mm. For additional measurements, see
picture.
B. Freestanding
A freestanding dishwasher must be fitted with
anti-tilt. This comprises two fastening irons
which are screwed into place as illustrated.
The dishwasher is then pushed in so that
the fastening irons grip onto the rear feet.
The dishwasher cannot now tilt in the event
a load is placed on the open door. If the
dishwasher is to be fully freestanding, both
side panels and the work top should be fit-
ted. These accessories can be purchased
where you purchased the dishwasher.
C. Semi-freestanding
If the dishwasher is positioned so that either
side is visible, a side panel can be fitted.
These accessories can be purchased where
you purchased the dishwasher.
D. Machines with wooden door
Stronger door springs are available for
purchase for machines with a fitted wooden
door. Springs are available for various
weights and sizes of wooden door. Door
springs can be purchased from the retailer
who sold you the dishwasher.

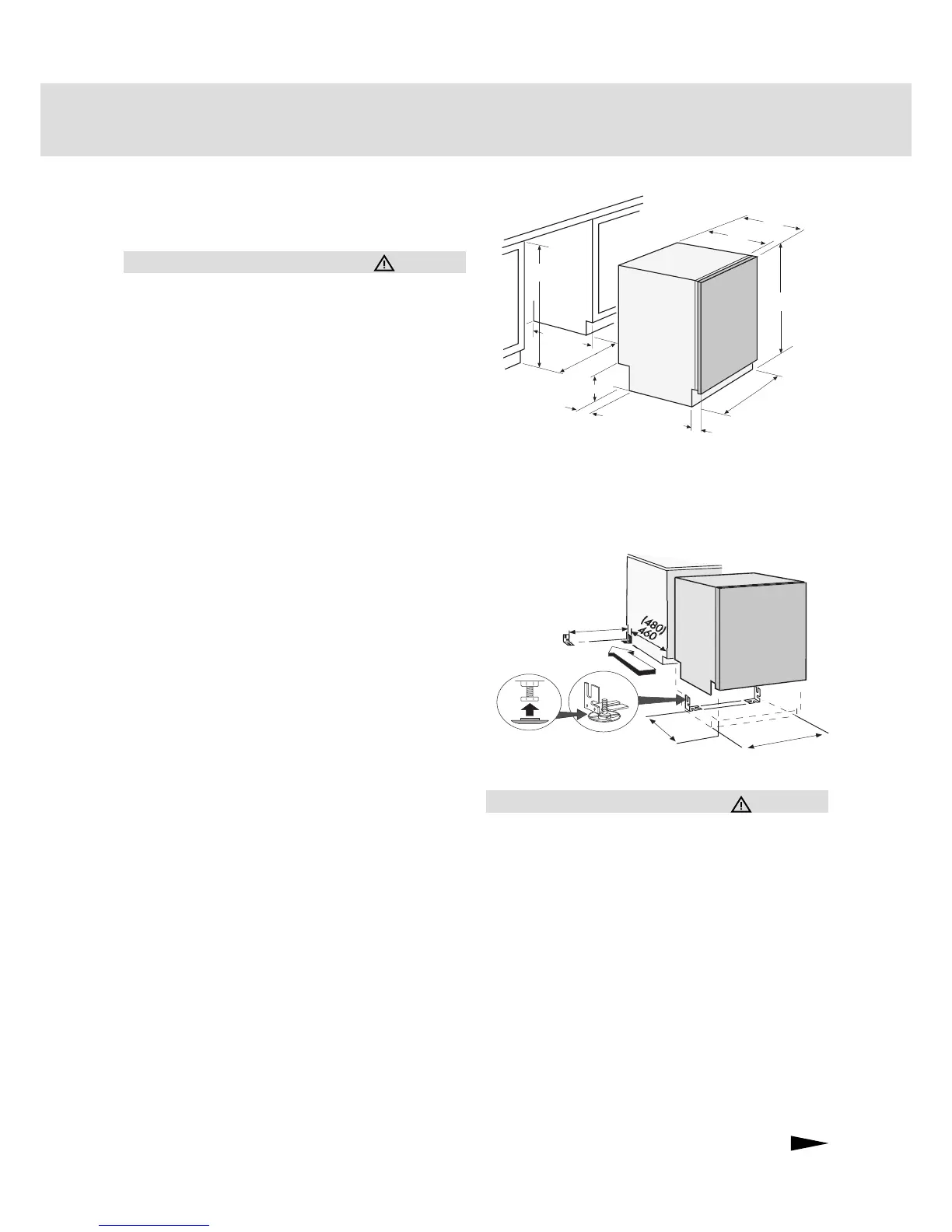

Built-in installation
455-475
600
41
3
Freestanding installation
CAUTION!
A fully freestanding dishwasher must be fit-
ted with anti-tilt.
Tip!
A machine with side panels and a counter
top (freestanding) can, of course, also be
installed as a built-in unit.
Installation
Min 863
Min 560
600
135-185
50
50-105
596
860-910
520
With nut and sliding protection mounted
Recommended measurements
*
* *
*
*
*
560
