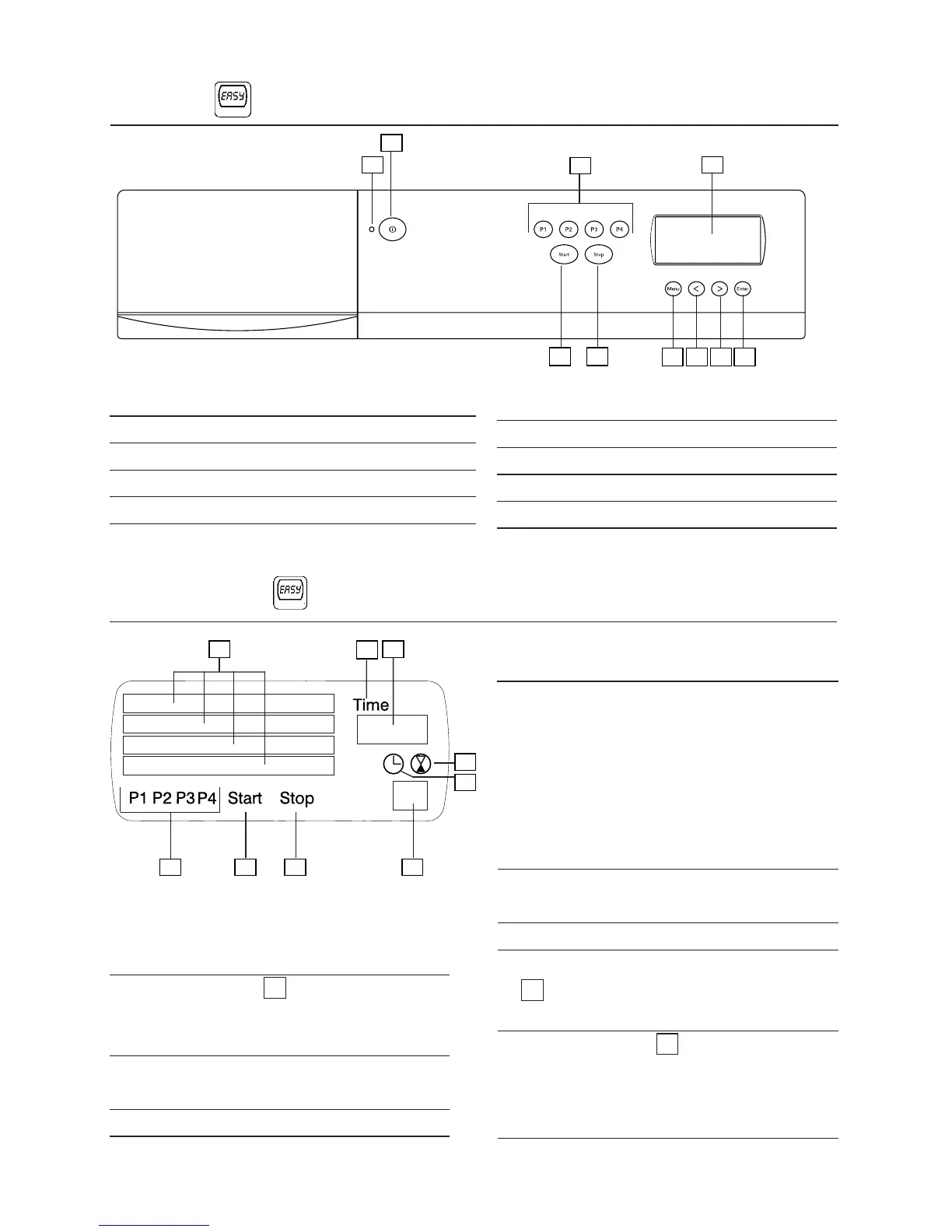

5 PANEL
1. INDICATOR LAMP ON/OFF
2. MAIN POWER SWITCH
3. PROGRAM SELECTOR BUTTONS P4-P4
4. DISPLAY
5. START BUTTON
6. STOP BUTTON
7. MENU BUTTON
8. INDEX BACK/REDUCE TIME
9. INDEX FORWARD/INCREASE TIME
10. ENTER BUTTON
1
2
3
4
5 6
7 8
9
10
6 LC-DISPLAY
1. TEXT FIELD INDICATING PROGRAM,
OPTIONS AND FAULT MESSAGES, ETC.
2. INDICATES THAT 3 IS SHOWING THE
SELECTED TIME FOR A TIMED DRY OR
AN AIR FLUFF PROGRAM
3. SHOWS THE SELECTED TIME FOR TIMED
DRY PROGRAMS
4. INDICATES THE SELECTED PROGRAM
8
3
4
5 6 7
2
1
9
NOTE
The display will be extinguished if no buttons
are pressed within three minutes. The display
will be reinstated the next time any button is
pressed.
5. INDICATES THAT A PROGRAM HAS
STARTED
6. INDICATES THAT A PROGRAM HAS
BEEN COMPLETED
7. SEE 8 AND 9 BELOW
8. INDICATES THAT DELAYED START IS ON.
7 THEN INDICATES HOURS
REMAINING TO START
9. INDICATES THAT 7 IS DISPLAYING THE
PROGRAM TIME REMAINING IN
HOURS AND MINUTES (ALTERNATING),
INCLUDING THE COOLING TIME.
