Servicemanual WM60
37

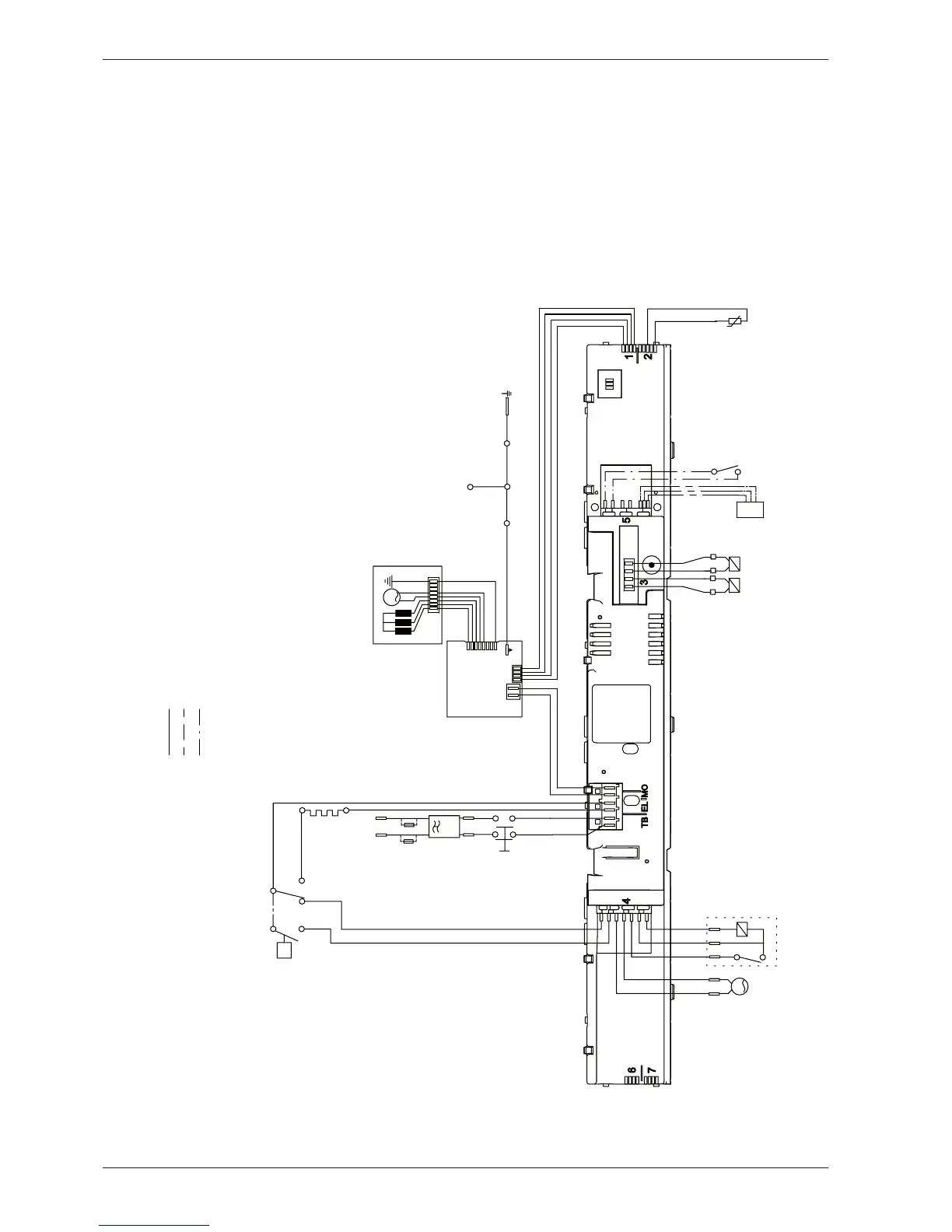

Wiring diagram WM60.3
WIRES IN ALL MACHINES
INTERNAL CONNECTION
WIRES IN SOME MACHINES
IV2
IV1
<P
N14
N12
N16
N11
NTC
FB
EL
AP
LL
3
1
2
F
L
N
INKB
BO
EL
BA
This document must not be copied without
our written pemission, and the contents
thereof must not be imparted to a third party
nor be used for any unauthorized purpose.
Contravention will be prosecuted.
Asko Cylinda AB
CIRCUIT DIAGRAM WM60.3
80 788 69 - 03
6 5
TB
4 3
MCU
MO
TG
RESISTANCES AT ROOM TEMPERATURE (CA. 20°C/68°F)
VALUES WITH +/-10% ARE REGARDED AS NORMAL COMPONENT
F: RADIO INTERFERENCE SUPPRESSION FILTER 680K Ohm
EL: HEATING ELEMENT 25 Ohm
AP: DRAIN PUMP 50 Hz 144 Ohm
AP: DRAIN PUMP 60 Hz 76 Ohm
LL: DOOR LOCK 122 Ohm
NTC: THERMISTOR 6.1 - 3.8 K Ohm
IV 1: INLET VALVE 1 3.7 K Ohm
IV 2: INLET VALVE 2 3.7 K Ohm
MO: MOTOR, 1-3 3,7±7% Ohm
1-2 3,6
±7% Ohm
2-3 3,6
±7% Ohm
MCU: MOTOR CONTROL UNIT
TG: TACHO GENERATOR
N: PRESSURE SWITCH
TB: MAIN SWITCH
FB: FLOAT SWITCH
TS: PRESSURE SENSOR
BA: CONTAINER
INKB: INCOMING GROUND
BO: BOTTOM
TS
TS
*A
*A
*A FUSE CONNECTION USA & CANADA
CABLE POSITIONS
1: MOTOR COMMUNICATION
2: THERMISTOR
3: INLET VALVES
4: DOOR LOCK, DRAIN PUMP, PREASSURE SWITCH
TB: POWER
EL: HEATING ELEMENT, PREASSURE SWITCH
MO: MOTOR POWER
