9.

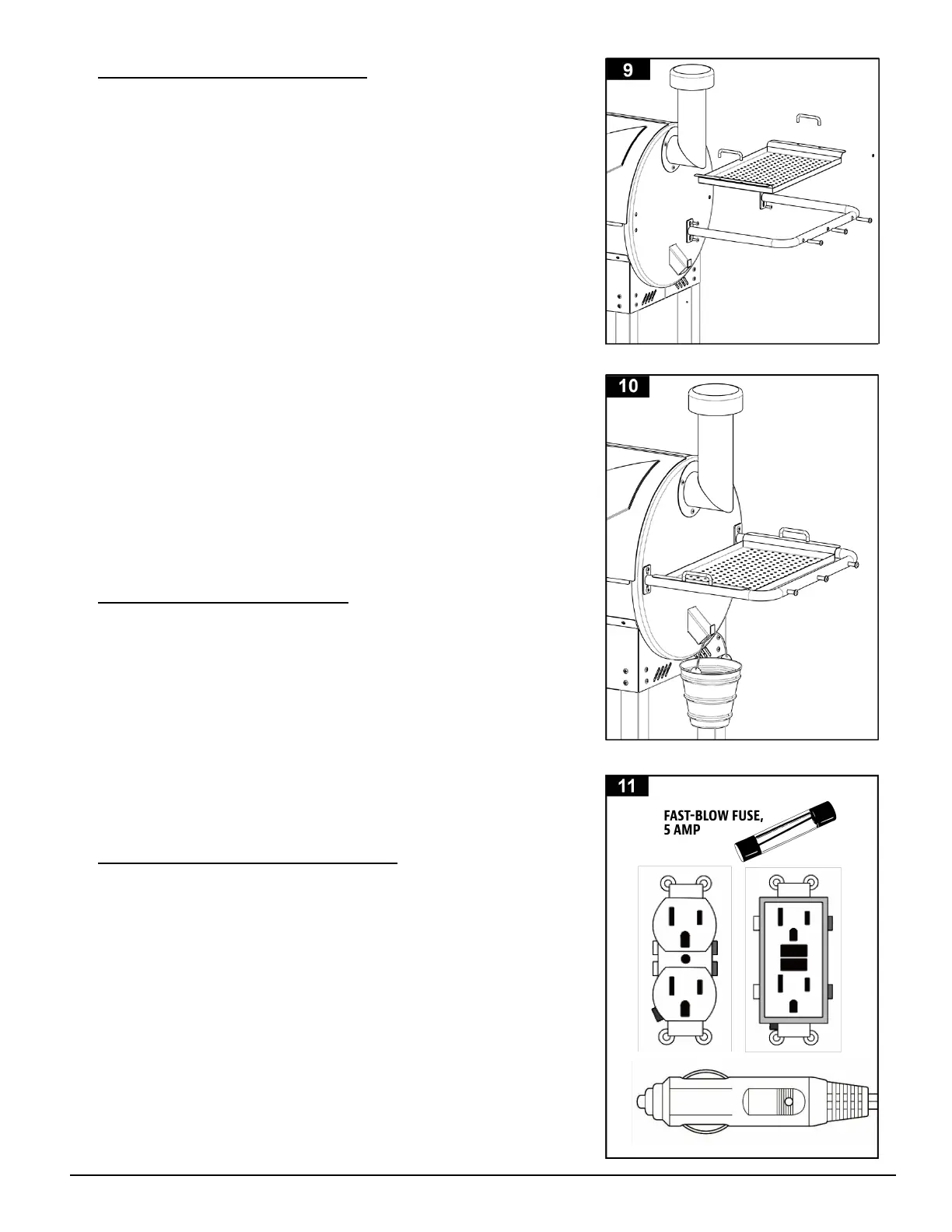

INSTALLING THE STORAGE TRAY
Parts Required:
2
x
Serving Tray Handle (8#
）
1
x Serving Tray
(#9)
1
x Serving Tray Bracket
(#10)
3 x Pin
(#11 )
Installation:
•
Dismantle pre-assembled screws and gaskets for installing
brackets from the side panel of cylinder.
•
Fix the bracket of storage tray to the side panel of cylinder,using
four sets of screw sub-assemblies unloaded from the side panel
of cylinder.
•
Dismantle the pre-assembled screws on the handle of storage
tray, and install the handle to the storage tray. Place the storage
tray on the bracket.
•
Dismantle the pre-assembled screws, gaskets from the towel
pin,and fix the towel pin to the bracket of storage tray.
NOTE:
Avoid using the bracket of storage tray to move or lift the grill. The
weight of grill will lead to the bracket to bend or break, which is
not covered by warranty.
10.
PLACING THE GREASE BUCKET
Parts Required:
1
x
Grease Bucket (#12)
Installation:
•
Place the grease bucket on the spout hook on the end of the main
barrel. Ensure it is level to avoid grease spills.
•
The unit is now completely assembled.
NOTE: Simply insert a disposable foil bucket liner into your grill's
grease bucket, then toss when full. It's ready to catch your grill's
grease and oil run off for easy clean up and maintenance.
11.
CONNECTING TO A POWER SOURCE
NOTE: Before plugging your ASMOKE into any electrical outlet, ensure
the temperature dial is in the OFF position.
•
STANDARD OUTLET
•
This appliance requires 110 volt, 60hz, 255w, 5 amp service. It
must be a 3-prong grounded plug. Ensure grounded end is not
broken off before use. The control uses a 5 amp, 120 volt,
fast-blow fuse to protect the board from the igniter.
•
GFCI OUTLETS
•
This appliance will work on most GFCI outlets, with a
recommended size of 15 amp service. If your GFCI outlet is
highly sensitive to power surges, it will likely trip during the
start-up phase of operation. During the start-up phase, the
10
