4.
MOUNTING THE HOPPER TO THE MAIN BARREL
Parts Required:
Hexagonal Fixed Bolts
(Pre-
assembled
)
Installation:
•

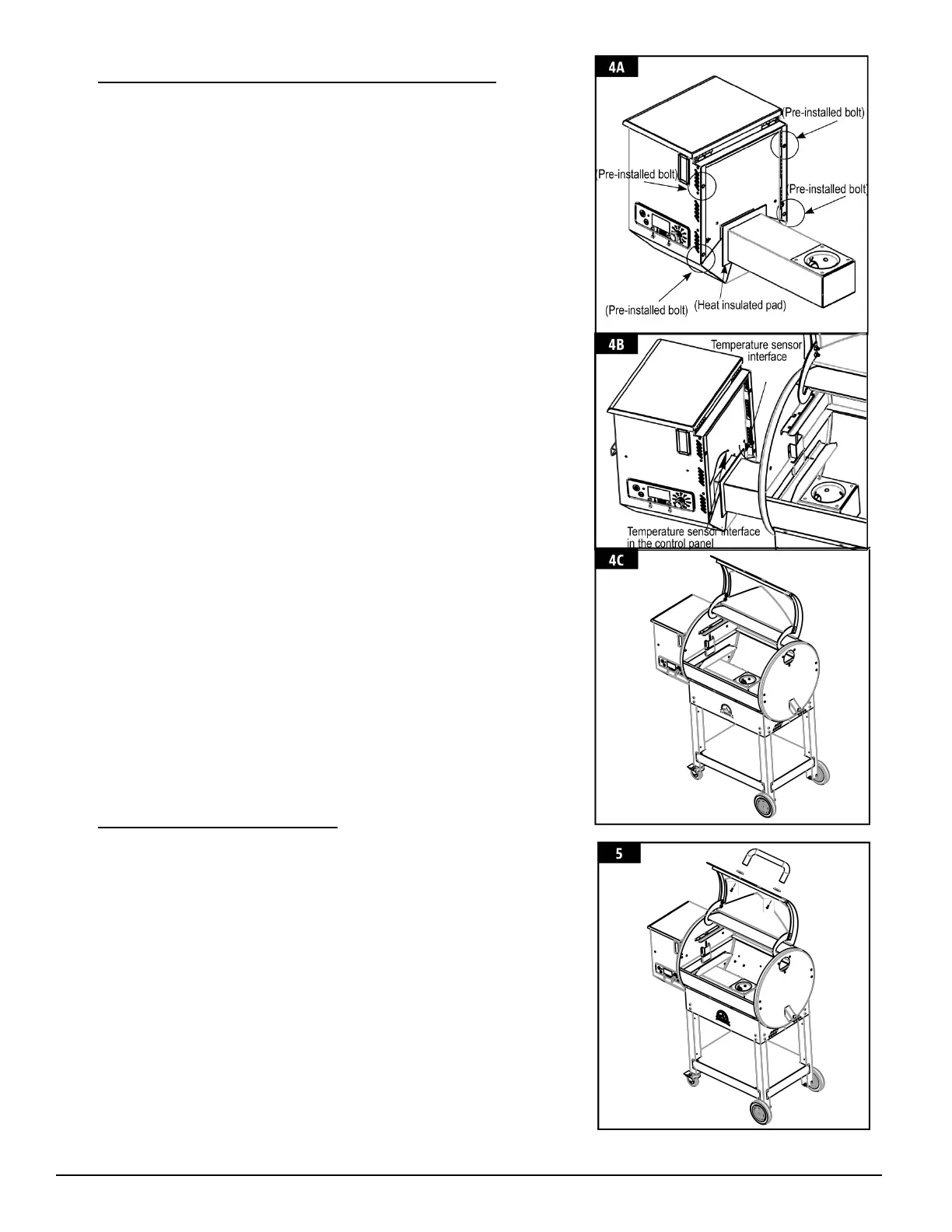

Remove the four 1/4-20 hexagonal fixed bolts that were
pre-assembled on the feeding box, which is shown in Figure 4A.
•
Make sure that heat insulate pad under feeder is not missing.
•
Insert the sub-assembly of the feeding box into the principal
part of cylinder,which is shown in Figure 4B.
•
Connect the interface of thermoresponsive probe in the control
panel on the sub-assembly of the feeding box to the probe of
measuring temperature on the principal part of cylinder, and
ensuring that the socket is firmly connected.
•
Insert the sub-assembly of the feeding box completely into the
cylinder, using pre-assembled bolts dismantled from the inner
side of the cylinder to fix the sub-assembly of the feeding box
and the side panel of cylinder, which is shown Figure 4C.
Note:
It is necessary that make sure the pad of insulating hot under
feeder is not lost before fixing the sub-assembly of the feeding
box.It is necessary that make sure the probe of measuring
temperature has been connected firmly. It is necessary to avoid
the harm caused by the automatic drop of lid on the cylinder when
fixing the bolt.
5.
INSTALLING THE LID HANDLE
Parts Required:
Hexagonal Fixed Bolts
(Pre-assembled)
Installation:
•
Dismantle the pre-assembled hexagonal fixed box from the
handle on the lid.Insert a screw from the inside of the cylinder's
lid to expose it on the outside. Add a ornament of handle on the
lid to the screw and manually tighten the screw from the inside.
•
Install the another part of handle on the lid by the same way.
8
