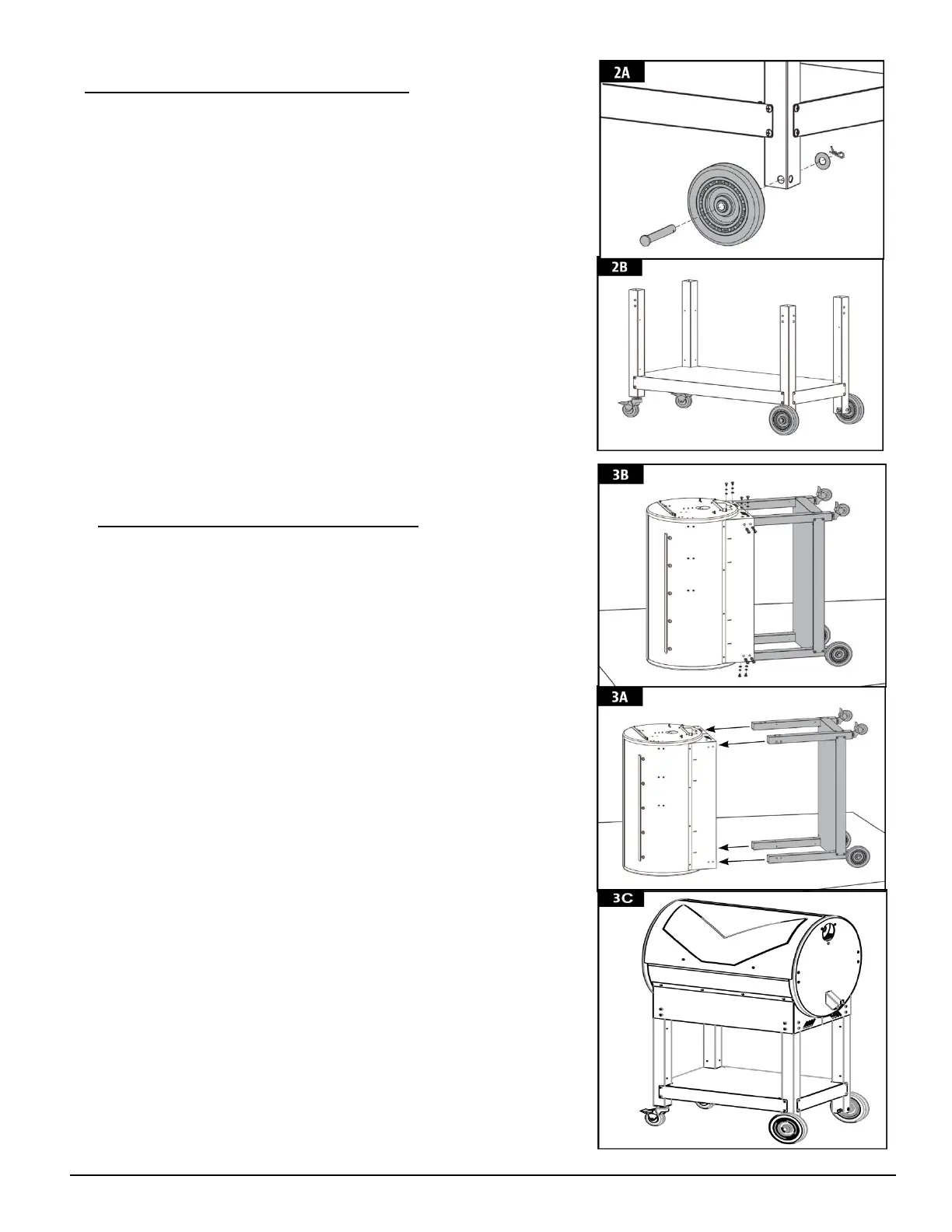

MOUNTING THE WHEELS TO THE CART
Parts Required:
Locking Caster Wheel
(#24)
Installation:
•
Attach the wheel to the long support leg by inserting the wheel
axle pin through the wheel, long support leg, wheel axle washes
then secure using the wheel cotter pin. Note illustration 2A.
Repeat installation for the other wheel.
•
Insert each locking caster wheel into the bottom of each short
support leg by hand-tightening into the hole. Ensure the locking
caster wheel is inserted completely.
•
Once all wheels are mounted, the two locking caster wheels
should be on the same side, and the two support legs with the
wheels should be on the opposing end. Note illustration 2B.
3.
INSTALLING THE CART TO THE BARREL
Parts Required:
Installation:
•
Lay the main barrel on its side, hopper end pointed upward, on
the cardboard. Ensure the support legs with the locking caster
wheels are pointed upward, on the same side as the hopper.
Note illustration 3A.
•
Insert the assembled cart into the main barrel brace, and secure
each leg to the brace using four washers, locking washers and
screws. Repeat same installation for the other three support
legs. Note illustration 3B.To ease installation of the final side,
carefully tum the grill to lie on its back to secure the last four
screws to the main barrel brace.
•
Once the cart is secured to the main barrel, position the grill
back onto its side (hopper end pointed upward), then carefully
lift the grill up to an upright position with the wheels on the
bottom.
IMPORTANT: Lock caster wheels before lifting grill to upright
position.
NOTE If two persons are assembling the unit, the main barrel may
be lifted onto the upright cart to secure. Lift carefully to avoid
injury.
