Asmoke AS700P - ELECTRICAL WIRE DIAGRAM; AS-ELECTRIC REQUIREMENTS

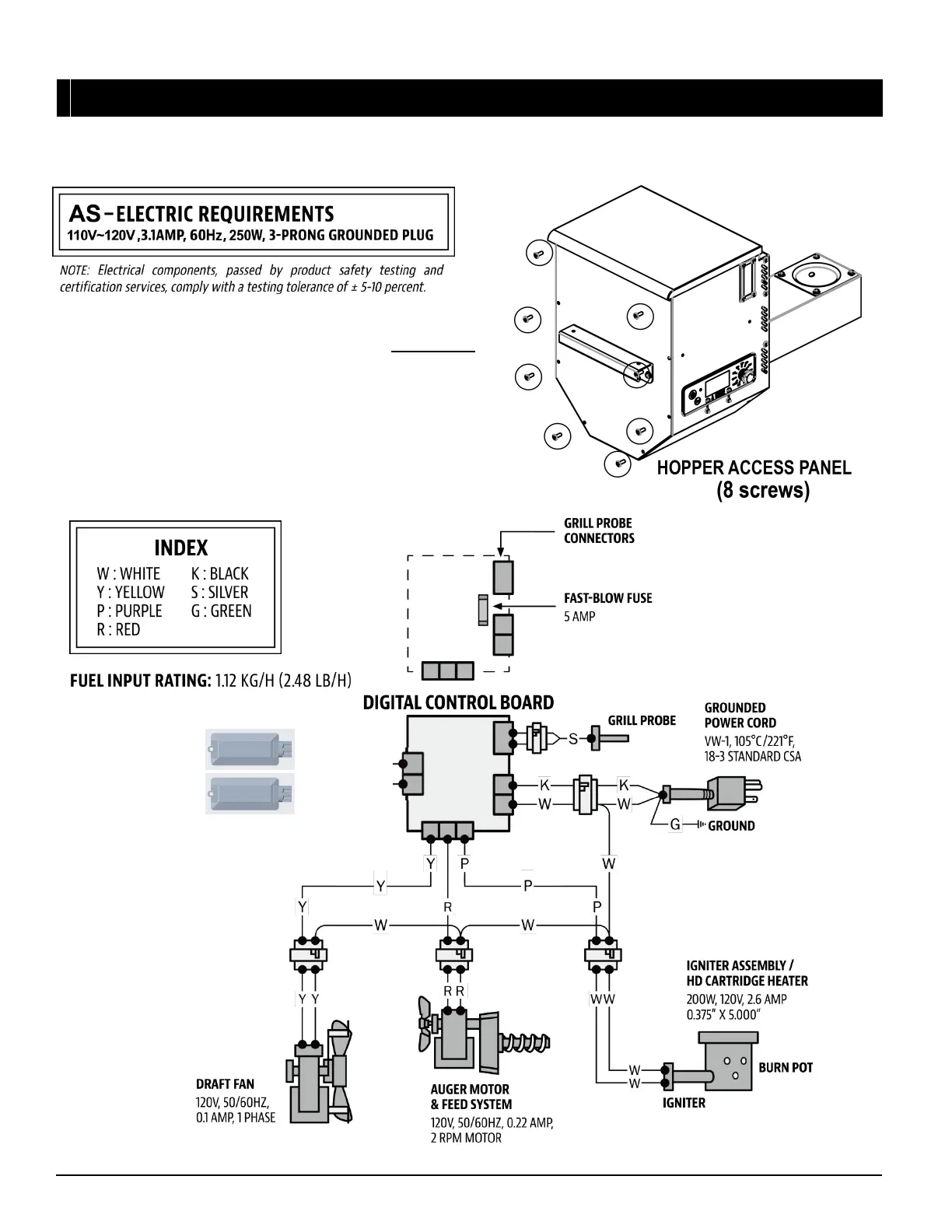

ELECTRICAL WIRE DIAGRAM
The Digital Control Board system is an intricate and valuable piece of technology. For protection from power surges and electrical
shorts, consult the wire diagram below to ensure your power source is sufficient for the operation of the unit.
LOCATE AND REMOVE
THE EIGHT SCREWS
OF ACCESS PANEL ON
UNDERSIDE OF UNIT
24
YG
YG: YELLOW/GREEN
