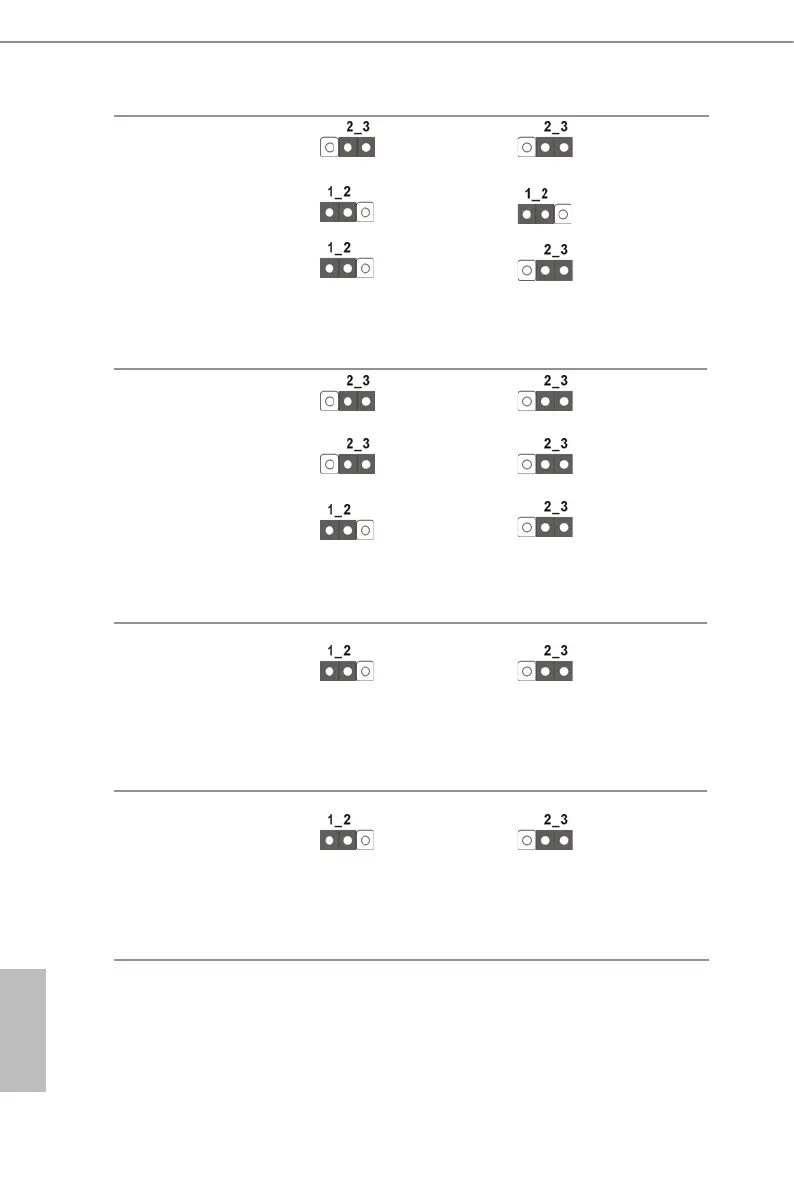

Chassis ID0 Jumper
(3-pin CHASSIS_ID0)
(see p.7, No. 30)
Chassis ID1 Jumper
(3-pin CHASSIS_ID1)
(see p.7, No. 29)
Chassis ID2 Jumper
(3-pin CHASSIS_ID2)
(see p.7, No. 31)
Reserved for system level
use
Reserved for system level
use
Chassis ID0 Jumper
(3-pin CHASSIS_ID0)
(see p.7, No. 30)
Chassis ID1 Jumper
(3-pin CHASSIS_ID1)
(see p.7, No. 29)
Chassis ID2 Jumper
(3-pin CHASSIS_ID2)
(see p.7, No. 31)
Reserved for system level
use
Reserved for system level
use
SATA DOM Power Jumpers
(3-pin SATAPWR1)
(see p.7, No.27)
SATA DOM (SSATA_2)
requires 5V power supply
SATA DOM (SSATA_2)
does NOT require 5V power
supply (Default)
(3-pin SATAPWR2)
(see p.7, No.25)
SATA DOM (SSATA_3)
requires 5V power supply
SATA DOM (SSATA_3)
does NOT require 5V power
supply (Default)
